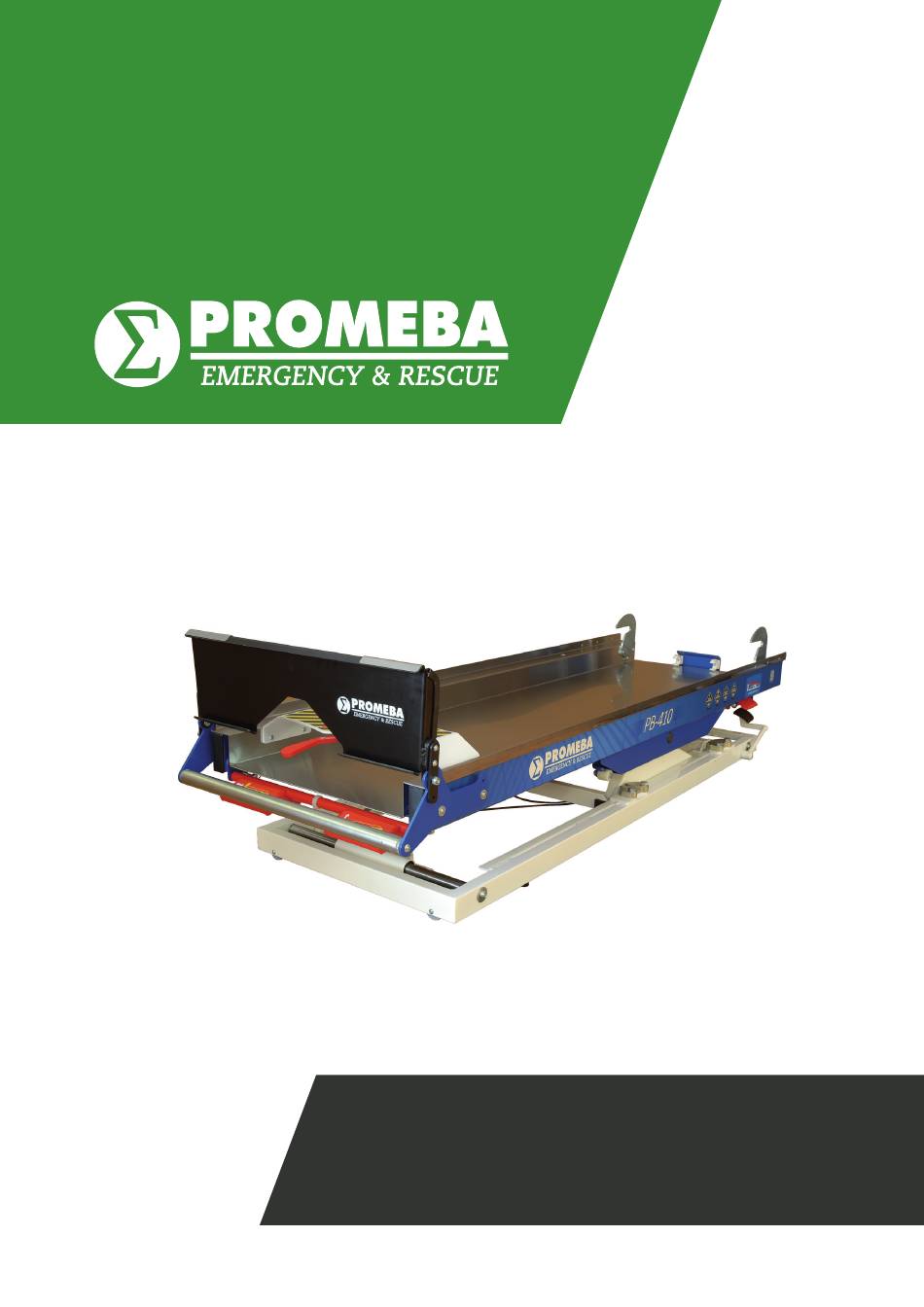

USER GUIDE
BENCH // PB-410 SERIES
Review 09/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-410 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Promeba PB-410 Series

Summary of Contents for Promeba PB-410 Series

  • Page 1 USER GUIDE BENCH // PB-410 SERIES Review 09/19...

  • Page 3: Table Of Contents

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 CONTENTS INTRODUCTION 01.1 Using this manual 01.2 Technical data sheet INSTALLATION 02.1 Transport and unpacking 02.2 Anchorage points OPERATION 03.1 Commands 03.2 Elements of the manual system 03.3 Loading and unloading operation 03.4...

  • Page 5: Introduction

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse.

  • Page 6: Technical Data Sheet

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PB 410 LENGHT 1800 mm TRENDELEMBURG -10º / +10º WIDTH 595 mm HEIGHT LOADING ± 100 mm HEIGHT 315 mm SIDE MOVEMENT 300 mm...
  • Page 7 USER GUIDE // BENCH PB-410 SERIES Review 09/19 INTRODUCTION MEASURES AND FEATURES // PB 410/3 LENGHT 1925 mm TRENDELEMBURG -10º / +10º WIDTH 595 mm HEIGHT LOADING ± 100 mm HEIGHT 315 mm FRONT / SIDE MOVEMENT 300 mm / 360 mm...
  • Page 8 USER GUIDE // BENCH PB-410 SERIES Review 09/19 INTRODUCTION MEASURES AND FEATURES // PB 410/4 LENGHT 1930 mm TRENDELEMBURG -10º / +10º WIDTH 600 mm HEIGHT LOADING ± 100 mm HEIGHT 345 mm SIDE MOVEMENT 300 mm WEIGHT 83 Kg MAX.
  • Page 9 USER GUIDE // BENCH PB-410 SERIES Review 09/19 INTRODUCTION MEASURES AND FEATURES // PB 410/5 LENGHT 2000 mm TRENDELEMBURG -10º / +10º WIDTH 595 mm HEIGHT LOADING ± 100 mm HEIGHT 315 mm SIDE MOVEMENT 300 mm WEIGHT 88 Kg MAX.

  • Page 11: Installation

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 INSTALLATION 02.1 Transport and unpacking First carefully remove the packaging to prevent the da- mage of the outside of the stretcher support. 1. Transport with a crane (high load) · Thread tapes through the upper platform for its trans- port (as shown in graphs) ·...

  • Page 12: Anchorage Points

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 INSTALLATION 02.2 Anchore points Before putting the bench into operation, ensure that each and every anchorage points are placed and clasped. ANCHORE FOR BENCH PB410 (8 anchorage points) 12,5 1174 ANCHORE FOR...
  • Page 13 USER GUIDE // BENCH PB-410 SERIES Review 09/19 INSTALLATION ANCHORE FOR BENCH PB410/4 (8 anchorage points) 12,5 1174 ANCHORE FOR BENCH PB410/5 (8 anchorage points) 12,5 1174...

  • Page 15: Operation

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.1 Commands PB-410 Stretcher rear anchor closure Extraction lever Load lever Lateral shift lever Trendelemburg movement lever...
  • Page 16 USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.1 Commands PB-410/3 Stretcher rear anchor closure Extraction lever Load lever Trendelemburg movement lever Lateral shift lever Longitudinal shift lever...
  • Page 17 USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.1 Commands PB-410/4 Stretcher rear anchor closure Extraction lever Load lever Lateral shift lever Trendelemburg movement lever...
  • Page 18 USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.1 Commands PB-410/5 Extraction lever Load lever Lateral shift lever Trendelemburg movement lever...

  • Page 19: Elements Of The Manual System

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.2 Manual system elements LATERAL SHIFT Operate the lever located on the rear right side of the bench, exerting a little effort on it with the foot accompanying this movement with its slide with the hands.
  • Page 20 USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.2 Manual system elements TRENDELEMBURG (Proclive / Declive) The movement is produced while pressing the side lever, when released it will lock the position. · Trendelemburg proclive position(1): In this position the bench lifts from the position in which the patient’s head is located.

  • Page 21: Loading And Unloading Operation

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.3 Loading and unloading From the position in which the bench has remained after unloading (A): LOADING • Load the stretcher until it is locked by the closure (1) • Fold the loading ramp (2) •...

  • Page 22: Scoop Stretcher Fastening

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.4 Scoop stretcher fastening • FOR MODELS PB-410 PB-410/3 FIXING To place PC 335 and PC 337 scoop stretchers, slide the scoop stretcher face down, between the stretcher anchor sheet and the tray until it butts with clamp grippers. Once contact is made, securely tighten it until it affixed.

  • Page 23: Tensors

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.5 Tensors To adjust tension in the drive cables, the bench has four sets of tensors for its regulation (depending on model): 1. LATERAL SHIFT LEVER Double set of tensors located on each of the attachment plates on the floor.

  • Page 24: Loading Angle Setting

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 OPERATION 03.6 Loading angle setting For having loading and downloading of the stretcher with optimal conditions, it is very important to put the stretcher support the most horizontal possible. LOADING THE STRETCHER...

  • Page 25: Mounting And Components

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.1 Main exploded views PB-410 SERIES TOP PLATFORM MODEL PB-410 • PB-410/3 (PAGE 26) MODEL PB-410/4 (PAGE 28) MODEL PB-410/5 (PAGE 30) BASE PLATFORM PB-410 SERIES (PAGE 32) BASE PLATFORM MOUNTING PLATES...

  • Page 26: Top Platform Exploded View Pb-410 • Pb-410/3

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.2 Top platform exploded view PB-410 • PB-410/3 1.02 1.01 1.26 1.25 1.24 1.23 1.03 1.22 1.04 1.05 1.06 1.21 1.20 1.16 1.07 1.08 1.17 1.09 1.19 1.15 1.14 1.13...
  • Page 27 USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.3 Bill of materials: TOP PLATFORM PB-410 • PB-410/3 ELEMENT CODE - DESCRIPTION UNITS 1.01 PB4100-04260 - BANDEJA ACERO INOXIDABLE 1.02 PB4100-04461 - TERCER PUNTO ANCLAJE DELANTERO 1.03 PB4100-04392 - TOPE CAMILLA PALAS 1.04...

  • Page 28: Top Platform Exploded View Pb-410/4

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.4 Top platform exploded view PB-410/4 2.02 2.27 2.01 2.26 2.25 2.24 2.23 2.03 2.22 2.21 2.04 2.05 2.20 2.06 2.19 2.15 2.07 2.16 2.08 2.18 2.14 2.13 2.12 2.17...
  • Page 29 USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.5 Bill of materials: TOP PLATFORM PB-410/4 ELEMENT CODE - DESCRIPTION UNITS 2.01 PB4104-04260 - BANDEJA ACERO INOXIDABLE ALTA 2.02 PB4100-04461 - TERCER PUNTO ANCLAJE DELANTERO 2.03 PB4104-04082 - TOPE CAMILLA PALAS PB-410/4 2.04...

  • Page 30: Top Platform Exploded View Pb-410/5

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.6 Top platform exploded view PB-410/5 3.01 3.06 3.02 3.07 3.03 3.20 3.04 3.19 3.05 3.18 3.08 3.09 3.17 3.10 3.11 3.16 3.12 3.15 3.13 3.14...
  • Page 31 USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.7 Bill of materials: TOP PLATFORM PB-410/5 ELEMENT CODE - DESCRIPTION UNITS 3.01 PB4105-04260 - BANDEJA ACERO INOXIDABLE 3.02 PB4105-04092 - REFUERZO ANTERIOR SAFATA PLANA LARGA 3.03 PB4100-00302 - MANETA DESBLOQUEO LATERAL 3.04...

  • Page 32: Base Platform Exploded View Serie Pb-410

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.8 Base platform exploded view SERIE PB-410 4.03 4.08 4.02 4.04 4.09 4.05 4.13 4.07 4.12 4.06 4.11 4.01 4.15 4.16 4.14 4.10...

  • Page 33: Base Platform Bill Of Materials Serie Pb-410

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.9 Bill of materials: BASE PLATFORM SERIE PB-410 ELEMENT CODE - DESCRIPTION UNITS 4.01 PB4100-03012 - SUBCONJUNTO CARRO PLATAFORMA BASE 4.02 PB4100-00352 - SOPORTE MECLOCK CHAPA 4.03 PB4100-00270 - VÁSTAGO FIJADOR MECLOCK 4.04...

  • Page 34: Base Platform Mounting Plates Exploded View Serie Pb-410

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.10 Base platform mounting plates exploded view SERIE PB-410 5.04 5.03 5.06 5.08 5.07 5.01 5.03 5.02 5.05 (2 SETS FOR BENCH)

  • Page 35: Base Platform Mounting Plates Bill Of Materials Serie Pb-410

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.11 Bill of materials: BASE PLATFORM MOUNTING PLATES SERIE PB-410 ELEMENT CODE - DESCRIPTION UNITS 5.01 PB4100-00290 - VALDA FIJACIÓN 5.02 PB4100-01012 - SUJECIÓN PLETINA COLLADA 5.03 KH2540 - COJINETE DE BOLAS 5.04...

  • Page 36: Base Platform Exploded View Pb-410 • Pb-410/4 • Pb-410/5

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.12 Base platform exploded view PB-410 • PB-410/4 • PB-410/5 6.04 6.03 6.01 6.06 6.05 6.07 6.02 6.08 6.09...
  • Page 37 USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.13 Bill of materials: GUIDE BASE PLATFORM PB-410 • PB-410/4 • PB-410/5 ELEMENT CODE - DESCRIPTION UNITS 6.01 PB4100-02012 - SUBCONJUNTO GUIA 6.02 PB4100-02271 - FIJACIÓN LONGITUDINAL 6.03 PB4100-02251 - BALDA FIJACIÓN LATERAL 6.04...

  • Page 38: Base Platform Exploded View Pb-410/3

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.14 Base platform exploded view PB-410/3 7.03 7.04 7.02 7.01 7.05 7.06 7.07...
  • Page 39 USER GUIDE // BENCH PB-410 SERIES Review 09/19 MOUNTING AND COMPONENTS 04.15 Bill of materials: GUIDE BASE PLATFORM PB-410/3 ELEMENT CODE - DESCRIPTION UNITS 7.01 PB4100-02012 - SUBCONJUNTO GUIA 7.02 PB4103-02271 - FIJACIÓN LONGITUDINAL PB-410/3 7.03 PB4100-02271 - FIJACIÓN LONGITUDINAL 7.04...

  • Page 40: General Maintenance

    USER GUIDE // BENCH PB-410 SERIES Review 09/19 GENERAL MAINTENANCE CLEANING WEAR AREAS It is essential to keep the equipment clean to ensure a Inspecting regularly on the system compo-nents for proper use and durability of the set. A thorough clean...

  • Page 41: Legal Notices

    Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make, if considered appropiate, any modification or improvement to the products described in this publication.

  • Page 42: Product Warranty

    Promeba, S.L. is not liable for loss or damages to pro- C. Damages or defects resulting from the use, operation ducts, this warranty or others, including economic loss or improper treatment of the product and not caused by or not assessable damage;...
  • Page 44 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN ER-0687/1998 T.
