Dürr Medical CR 7 VET Installation Instructions

Replacement of front panel - with operator panel and with / without display panel
Hide thumbs
1
2
3

Advertisement

Table of Contents

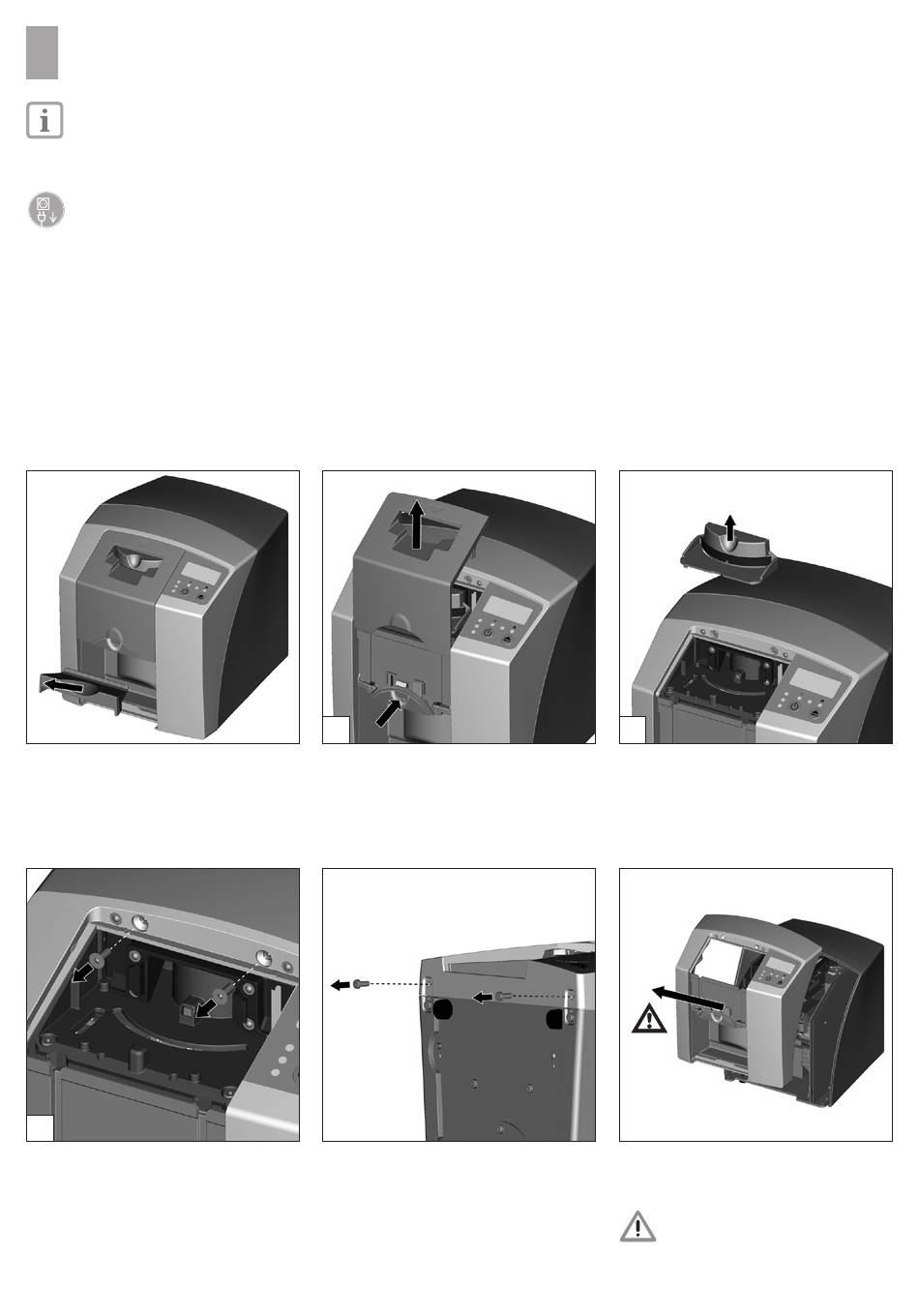

Installation instructions CR 7 VET
EN
Replacement of Front Panel - with Operator Panel and with / without Display Panel
Repair work on the Scanner beyond normal maintenance procedures must only be carried out by DÜRR MEDICAL trained and
certified professionals or our customer service.
The assembly and user instructions manual for the device must also be followed. This gives important information on safety, set-up,
electrical connections, disinfection, cleaning, etc.
Remove the plug before opening the Scanner!

Delivery contents

Front with operator panel .......................................2137-110-50E

Tools required

SW 2.5 Allen key
1
• Remove the film tray.
4
• Remove two countersunk screws with the
SW 2.5 Allen key.
2
• Press the release button element and
simultaneously lift the cover up and away
from the unit.
5
• Remove the socket-head screws under-
neath with the SW 2.5 Allen key.
1 / 3
3
• Lift the retaining plate up and off as
shown.
6
• Lift the front away from the device very
carefully.
The front is still connected to the
device with a ribbon cable. See
next step to remove the ribbon
cable.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR 7 VET and is the answer not in the manual?

Questions and answers

Related Manuals for Dürr Medical CR 7 VET

Summary of Contents for Dürr Medical CR 7 VET

  • Page 1 Installation instructions CR 7 VET Replacement of Front Panel - with Operator Panel and with / without Display Panel Repair work on the Scanner beyond normal maintenance procedures must only be carried out by DÜRR MEDICAL trained and certified professionals or our customer service.
  • Page 2 • Unlatch the “Display” socket on the main • Mark the contact positions of the ribbon • Place the new front piece in position. plate. cable with permanent marker. The ribbon cable must be placed • Pull the ribbon cable from the socket. The socket is located either at in such a way that it won’t be •...
  • Page 3 Test 1: • Switch unit on. • Monitor the initialisation sequence (text is displayed on panel clearly, retaining plate moves, drive starts, erasure unit lit). There must be no unusual noises and nothing should appear on the display which are not expected from the unit.
