Broadata Communications LINKBRIDGE LBC-PSW41E User Manual

Hdbaset 18g/4k multi-format presentation transmitter with 4-play and 48v poc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

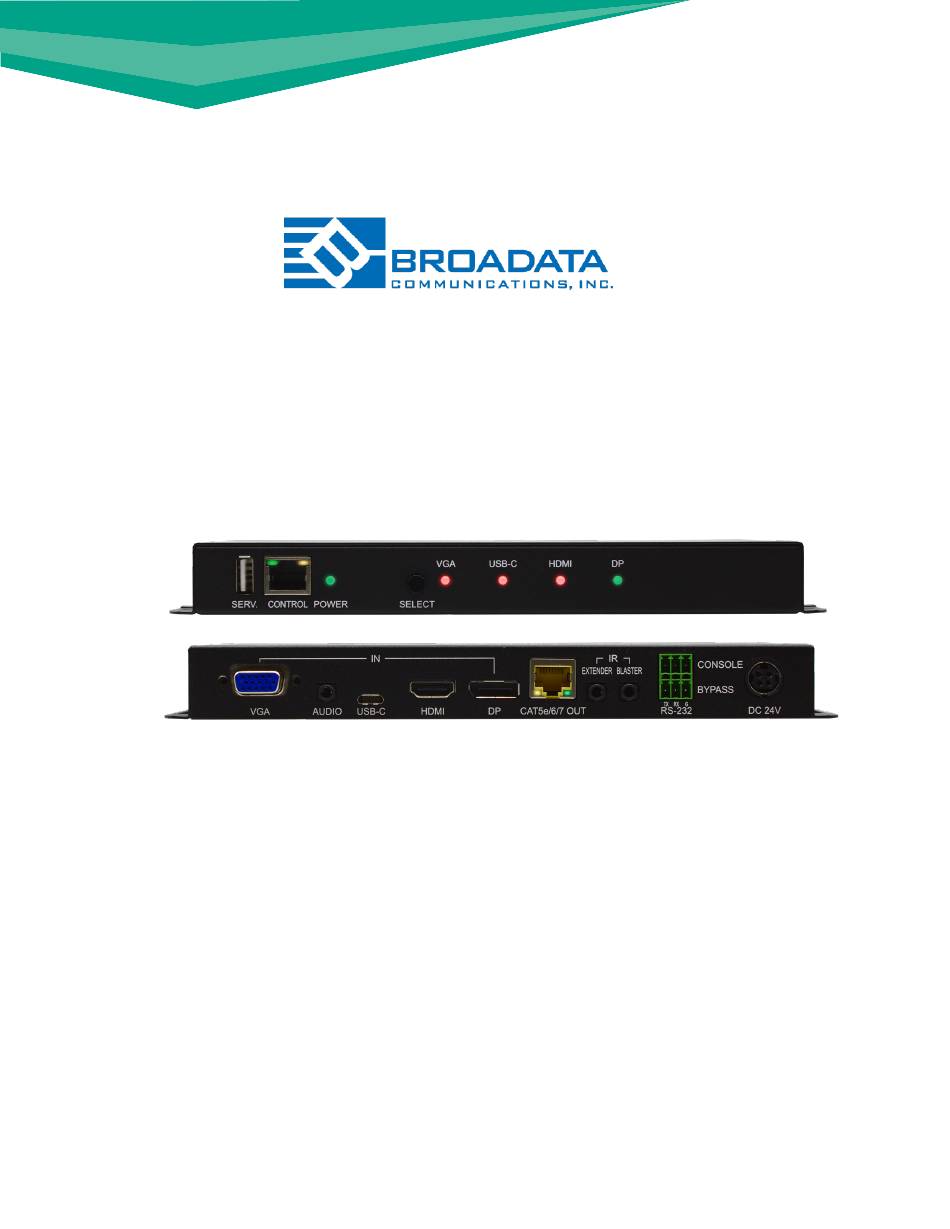

LINKBRIDGE™ HDBASET 18G/4K MULTI-FORMAT
PRESENTATION TRANSMITTER
with 4-PLAY and 48V PoC
LBC-PSW41E
USER MANUAL
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or application.
All rights reserved.
©2019 Broadata Communications, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINKBRIDGE LBC-PSW41E and is the answer not in the manual?

Questions and answers

Related Manuals for Broadata Communications LINKBRIDGE LBC-PSW41E

Summary of Contents for Broadata Communications LINKBRIDGE LBC-PSW41E

  • Page 1 4-PLAY and 48V PoC LBC-PSW41E USER MANUAL BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2019 Broadata Communications, Inc.
  • Page 2 SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATION PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes,surges,electric shock,lightning strikes, etc. Use of surge proctection system is highly recommended in order to protect and extend the life of your equipment.
  • Page 3 SAFETY INFORMATION Do not use this device near water/liquids. This device should not be exposed to dripping and splashing or liquids. Clean only with dry cloth. Do not use solvents such as paint thinners and acetone to clean external casing. Such agents will remove any labels on the device.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PRODUCT DESCRIPTION OPERATION CONTROL AND FUNCTIONS FRONT/REAR PANEL CONNECTOR PIN OUT ASSIGNMENT WEB GUI CONFIGURATION API COMMANDS (RS-232 & TELNET) CONNECTION DIAGRAM SPECIFICATIONS MAINTENANCE AND TROUBLESHOOTING SERVICE PROCEDURE REPLACEMENT POLICY RETURN AND REPAIR SERVICE 10.0 LIMITED WARRANTY HDBaseT 18G/4K Multi-Format Presentation Transmitter w/ 4-Play and 48V PoC User Manual (LBC-PSW41E)

  • Page 5: Product Description

    PRODUCT DESCRIPTION The LBC-PSW41E is capable of extending UHD+ video, audio and control over a single run of CAT 5e/6/7 cable up to 40 meters*. The extender complies with HDCP 2.2 and 18G HDMI standards, and supports legacy HDCP 1.x and HDMI 1.x standards. It also supports 4K UHD HDMI, DP 1.2, & USB-C video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources, that can be processed and automatically scaled to 1080p while staying within HDBaseT’s 10.2Gbps bandwidth specification.
  • Page 6 PRODUCT DESCRIPTION PACKAGE CONTENTS • 1- HDBaseT Multi-Format Presentation Transmitter with 4-Play and 48V PoC • 1- 24V/3.75A DC Power Adapter • 1- Power Cord • 1- 3.5mm to IR Blaster Cable • 1- 3-pin Terminal Block • 1- Operation Manual SYSTEM REQUIREMENTS •...

  • Page 7: Operation Control And Functions

    OPERATION CONTROL AND FUNCTIONS FRONT PANEL LBC-PSW41E USB-C HDMI SERV. CONTROL POWER SELECT Service Port: This port is reserved for firmware update use only. Control Port: Connect directly or through a network switch, to control your PC/laptop to control the unit via Telnet/WebGUI. Power LED: This LED will illuminate to indicate the unit is on and receiving power.
  • Page 8 OPERATION CONTROL AND FUNCTIONS REAR PANEL LBC-PSW41E CONSOLE EXTENDER BLASTER TX RX G AUDIO USB-C HDMI CAT5e/6/7 OUT RS-232 DC 24V VGA Input: Connect to VGA source equipment such as a PC or laptop. Audio Input: Connect to the stereo analog output of the device connected to the VGA input port.
  • Page 9 OPERATION CONTROL AND FUNCTIONS REAR PANEL LBC-PSW41E CONSOLE EXTENDER BLASTER TX RX G RS-232 DC 24V AUDIO USB-C HDMI CAT5e/6/7 OUT IR Extender Port: Connect to an IR Extender to receive IR control signals and extend them to devices connected to the other end of the HDBaseT connection.

  • Page 10: Connector Pinout Assignment

    CONNECTOR PINOUT ASSIGNMENT IR Cable Pin Outs IR Blaster Pin Out IR Extender Power Power Infared Infared Ground Not Used RS-232 Pin Out SERIAL PORT DEFAULT SETTINGS BAUD RATE 19200 DATA BITS PARITY BITS NONE STOP BITS FLOW CONTROL NONE Console Bypass 3-Pin Terminal Block...

  • Page 11: Web Gui Configuration

    WEB GUI CONFIGURATION BCI Configuration Tool Please obtain the “BCI Configuration Tool” from the website at www.broadatacom.com or your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “BCI Configuration Tool”...
  • Page 12 WEB GUI CONFIGURATION Copy IP Address and open a web browser to access the WebGUI. HDBaseT 18G/4K Multi-Format Presentation Transmitter w/ 4-Play and 48V PoC User Manual (LBC-PSW41E)
  • Page 13 WEB GUI CONFIGURATION After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
  • Page 14 WEB GUI CONFIGURATION SWITCH TAB This tab provides A/V routing control, HDCP management, auto switch control, A/V mask, and I/O renaming options. To assign a new A/V route, please click the Output button on the left and then click on the button of the preferred input port on the right.
  • Page 15 WEB GUI CONFIGURATION Output Edit: Provides control over the name of the output. • Set Output Name: To rename the output, type the new name in the space provided in the Edit window. The name can be up to 8 characters long.
  • Page 16 WEB GUI CONFIGURATION Input Edit: Provides Individual control over the name of each input and the behavior of HDCP on that input. • Set Input Name: To rename an input, type the new name in the space provided in the Edit window. The name can be up to 8 characters long.
  • Page 17 WEB GUI CONFIGURATION Automation Tab The Automation tab provides control over the unit’s automatic control command broadcast behavior when any of the specified Automation Events occur. Automation commands are sent to the connected display device via standard CEC. Event: Use the dropdown to select the Automation Event to configure. Available Automation Events are: - Power On: This unit is powered on.
  • Page 18 WEB GUI CONFIGURATION • Wait: Set the length of time, in seconds, to wait after this Automation Event has been activated before ANY new Automation Event can be detected. • CEC Command: Shows the CEC command, in ASCII hex pairs, that will be sent when the specified Automation Event is activated.
  • Page 19 WEB GUI CONFIGURATION • Download: To save an existing User EDID to your local PC, select the User EDID slot from the dropdown list and then press the “Download” button. Depending on your browser settings you will either be asked where to save the downloaded file, or the file will be transferred to the default download location on your PC.
  • Page 20 WEB GUI CONFIGURATION This unit provides the following 6 default EDIDs: EDID NAME EDID CONTENT 1080P@60/PCM/2CH 1920×1080p@60Hz (148MHz), 8-bit color, LPCM 2.0 1080P@60/PCM/Bitstream/ 1920×1080p@60Hz (148MHz), 8-bit color, LPCM 7.1 & Bitstream 4K@30/PCM/2CH 3840×2160p@30Hz (297MHz), Deep Color (8/10/12-bit), LPCM 4K@30/PCM/Bitstream/MCH 3840×2160p@30Hz (297MHz), Deep Color (8/10/12-bit), LPCM 7.1 &...
  • Page 21 WEB GUI CONFIGURATION Network Tab This tab provides network configuration options including changing the IP mode, viewing/ setting the IP configuration, changing the admin login password, and changing the Web Login timeout. IP Configuration: IP Mode may be switched between Static IP or DHCP. In Static IP Mode the IP, netmask and gateway addresses may be manually set.
  • Page 22 WEB GUI CONFIGURATION System Tab This tab provides serial number information, system configuration backup/restore/reset, system reboot, and firmware update functions HDBaseT 18G/4K Multi-Format Presentation Transmitter w/ 4-Play and 48V PoC User Manual (LBC-PSW41E)
  • Page 23 WEB GUI CONFIGURATION System Configuration • Download: The current system configuration, including routing and settings, may be saved as an XML file to a PC. Click the “Download” button to save the current system configuration to your local PC. • Restore: Previously saved system configurations may be restored from a saved XML file.
  • Page 24 WEB GUI CONFIGURATION Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Window 7 Click Start type “cmd” in the search field, and press Enter Windows XP Click Start >...

  • Page 25: Api Commands (Rs232 & Telnet)

    API COMMANDS (RS232 & TELNET) RS-232 and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS show the full command list. help show the full command list. set factory default Reset the unit to factory defaults. set system reboot Reset the unit. get fw ver Show the unit’s current firmware version.
  • Page 26 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS set in N1 hdcp mode N2 Set the HDCP behavior of the specified input. N1 = 1~4 [Input port] Available values for N2: [Disabled] [Follow source] [Follow display] get in N1 hdcp mode Show the current HDCP behavior used by the specified input.
  • Page 27 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS set all in edid N1 set all in edid N1 Set the EDID to use when the “All” EDID mode is active. Available values for N1: [1080P, 2CH] [1080P, MCH] [4K@30, 2CH] [4K@30, MCH] [4K@60, 2CH] [4K@60, MCH]...
  • Page 28 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS set in N1 edid N2 Set the EDID to use on the specified input. N1 = 1~4 [Input port] Available values for N2: [1080P, 2CH] [1080P, MCH] [4K@30, 2CH] [4K@30, MCH] [4K@60, 2CH] [4K@60, MCH] [User EDID 1]...
  • Page 29 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS get edid N1 name Show the current name of the specified EDID. Available values for N1: [User EDID 1] [User EDID 2] [User EDID 3] [User EDID 4] set user N1 edid data N2 Upload a new EDID (in HEX format) for use as the specified User EDID.
  • Page 30 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS get ip mode Show the current IP address assignment mode. set ipaddr N1 Set the unit’s static IP address. N1= X.X.X.X [X = 0 ~ 255] get ipaddr Show the unit’s current IP address. set netmask N1 Set the unit’s static netmask.
  • Page 31 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS set automation event N1 cec A N2 Enable or disable the specified Automation Event’s CEC response. Available values for N1: [Power on] [Out A source active] [Out A source lost] Available values for N2: [Event enabled] OFF [Event disabled] get automation event N1 cec A...
  • Page 32 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS get automation event N1 cec A delay Show the delay time for the specified Automation Event’s CEC response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 cec A wait N2.
  • Page 33 API COMMANDS (RS232 & TELNET) COMMAND DESCRIPTION AND PARAMETERS set automation event N1 cec A command N2 Set the CEC command to send when the specified Automation Event is activated. Available values for N1: [Power on] [Out A source active] [Out A source lost] N2 = {CEC data} [Comma delimited hex pairs]...

  • Page 34: Connection Diagram

    CONNECTION DIAGRAM HDBaseT 18G/4K Multi-Format Presentation Transmitter w/ 4-Play and 48V PoC User Manual (LBC-PSW41E)

  • Page 35: Specifications

    SPECIFICATIONS PHYSICAL VIDEO SPECIFICATIONS (TX) Resolution HDMI (up to 4K@60Hz) Dimensions 9.09”(W) x 4.56”(D) x 0.98”(H) DP 1.2 (up to 4K@60Hz) Power Rating +24V DC, 3.75A (Max.) USB-C (up to 4K@60Hz) Operating Temperature 0 to 40ºC, operating VGA (up to 1080p@60Hz) Input Connectors 1- HDMI Female Plug Humidity...
  • Page 36 SPECIFICATIONS Supported Resolutions (Hz) HDMI USBC HDBT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 1280×768p@60/75/85 1280×800p@60/75/85 1280×960p@60/85 1280×1024p@60/75/85 1360×768p@60 1366×768p@60 1400×1050p@60 1440×900p@60/75 1600×900p@60RB HDBaseT 18G/4K Multi-Format Presentation Transmitter w/ 4-Play and 48V PoC User Manual (LBC-PSW41E)
  • Page 37 SPECIFICATIONS Supported Resolutions (Hz) HDMI USBC HDBT 1600×1200p@60 1680×1050p@60 1920×1080i@50/60 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 2560×1440p@60RB 2560×1600p@60RB 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0),HDR10 3840×2160p@50/60 4096×2160p@24/25/30 4096×2160p@50/60 (4:2:0) 4096×2160p@24, HDR10 4096×2160p@50/60 (4:2:0),HDR10 4096×2160p@50/60 * Converts to 4k50/60Hz (4:2:0) HDBaseT 18G/4K Multi-Format Presentation Transmitter w/ 4-Play and 48V PoC User Manual (LBC-PSW41E)

  • Page 38: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING 3.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 3.2 Troubleshooting If the LBC-PSW41E units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections.

  • Page 39: Service Procedure

    If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •...

  • Page 40: Limited Warranty

    LIMITED WARRANTY 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of ship- ment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained.
  • Page 41 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: Sales@Broadatacom.com 2545 West 237th Street Website: www.broadatacom.com Torrance, CA 90505 800•214•0222 310•530•1416 e-mail: Sales@broadatacom.com www.broadatacom.com HDBaseT 18G/4K Multi-Format Presentation Transmitter w/ 4-Play and 48V PoC User Manual (60000-LBCPSW41E)
