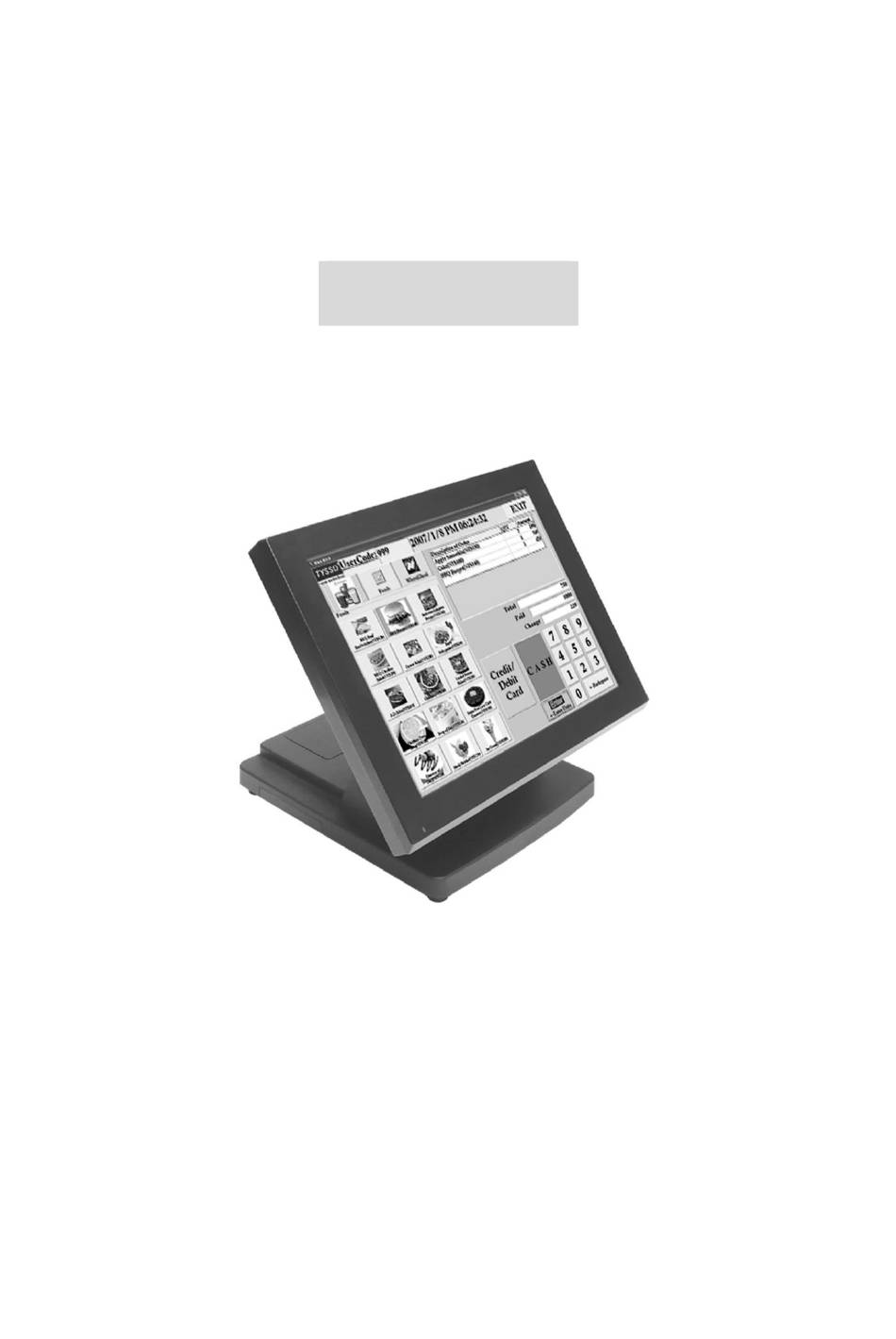

- Page 1 PPD-1500 Series Touch Screen LCD Monitor User Manual Version 2.1 © Copyright Fametech Inc. (TYSSO), 2017...
-
Page 2: General Information
The information in this manual is subject to change without notice due to rapid improvement on IT technology. The users can get the most up to date information from our web site: h ttp://www.fametech.com.tw WARNING The terminal has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. -
Page 3: Trade Marks And Service Marks
TRADE MARKS AND SERVICE MARKS TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners. IMPORTANT SAFETY INFORMATION Read all these instructions carefully. Use only parts, especially power adapter, recommended by the manufacturer; unapproved ... -
Page 4: Table Of Contents
Contents General Information ....................i ABOUT THIAS MANUAL ....................i WARNING ......................... i WARRANTY LIMITS ......................i TRADE MARKS AND SERVICE MARKS ................. ii IMPORTANT SAFETY INFORMATION ................ii Introduction ......................1 Unpacking ......................1 Product Overview ....................2 I/O Ports and Connectors..................4 Specifications ...................... -
Page 5: Introduction
1. Introduction The PPD series offers high-quality LCD touch screen that comes with a durable base and standard 75mm VESA mounting holes. The PPD is designed with the ability to integrate with any POS peripheral devices, such as speakers, rear top mount or pole type customer display, magnetic card reader, and second monitor. -
Page 6: Product Overview
1.2 Product Overview Front View Rear View Side View ... - Page 7 Bottom View ...
-
Page 8: I/O Ports And Connectors
1.3 I/O Ports and Connectors PS/2 interface MSR cable USB interface MSR cable RS-232 interface MSR cable USB interface touch cable RS-232 interface touch cable Audio cable VGA cable... -
Page 9: Specifications
1.4 Specifications PPD-1500 Series Model PPD-1700 PPD-1500 17” 15” TFT LCD 300 Nits 300 Nits Brightness Resolution 1280 x 1024 Pixel 1024 x 768 Pixel Touch Screen 5 Wire Resistive 15 ~ 80 Degrees Tilting Angle I/O Ports Serial RS-232 DB-9 x 2 (Optioned Touch x 1, MSR x1) USB2.0 x 1 for Touch Panel... -
Page 10: Monitor Setting
2. Monitor Setting 2.1 OSD Control Panel Button Function Power Turn on/off the monitor Auto Adjust a. Automatically optimize and adjust the screen settings. b. Exit the OSD menu. a. Increase the volume. b. Increase the value of the function selected or move to the previous function as the OSD menu is active. -
Page 11: On-Screen Display
2.2 On-Screen Display OSD Main Menu Item Description Color Contrast Adjust the degree of difference between lightness and darkness. Brightness Adjust the balance between lightness and darkness. Color Adjust Set the value of red, green, and blue. Color Temp Contain 5 color modes. Back Go back to menu. - Page 12 Germany Set the OSD menu language to Germany. Spanish Set the OSD menu language to Spanish. Chinese Traditional Set the OSD menu language to Chinese Traditional. Chinese Simple Set the OSD menu language to Chinese Simple. Japanese Set the OSD menu language to Japanese.
-
Page 13: Peripherals Installation
3. Peripherals Installation 3.1 Secondary Display a. Pass the cord through the hole. Plug the cable into the VGA port on a PC. Connect the extension power cord and plug the power adaptor to an AC outlet. b. Tighten the bundled screws specified for the stand of the Secondary Display to fix it to place. -
Page 14: Pole-Type Customer Display
3.2 Pole-type Customer Display a. Pass the cord through the hole. Plug the cable into a free COM port on a PC. Connect the extension power cord and plug the power adaptor to an AC outlet. b. Press the stand of the customer display into place. -
Page 15: Installing Touch Screen Driver
4. Installing Touch Screen Driver Please download the latest driver from TYSSO official website. Extract the compressed file and double click the folder “Driver & Utility” as below: There are categorized folders of Peripherals and Touch Screen drivers (Touch Driver). -
Page 16: Install The Driver Of Resistive Type Touch Panel
4.1 Install the Driver of Resistive Type Touch Panel To install the drivers of Resistive Touch Panel: Double click the folder “Touch Driver” to access the subfolder. There are drivers of Resistive type and Projective Capacitive type touch screen. To install the driver for Resistive type, select (double click) the folder “Resistive Touch”... - Page 17 Select the subfolder according to the operating system installed. (for example: select “Win 7 & Vista & XP & 2K & ME98-32bits” for the Windows XP 32-bit version) Double click the file “Setup.EXE” to start the installation. Click “Next” to start the installation.
- Page 18 Select the destination folder and click “Next” to continue. COM port (RS-232) driver installation. If the touch screen is for RS-232 interface, please click the checkbox “Install RS232 driver” additionally to install the driver. Click “Next” to continue.
- Page 19 Click “Install” to start the installation. Installation completed. Click “Finish” to exit.
- Page 20 Restart the system. Click “OK” to proceed. m. Installation completed. There is an icon on the screen for quick launch.
-
Page 21: Touch Screen Calibration (Resistive Type)
4.2 Touch Screen Calibration (Resistive Type) There is a Utility “Touch Tool” for Touch Screen Calibration. Double click the icon to access the utility. User can perform 4-point-calibration by selecting the function “4 pts calibration". - Page 22 There are 4 calibration points on the screen. Tap the blinking mark to complete the first calibration point. Proceed to the next mark and complete all calibration points The calibration is completed; tap the icon “Save” to save the setting.
- Page 23 Tips: Advanced 9-point/25-point Calibration There are advanced 9-point calibration and 25-point calibration for more accurate calibration demands. Access “Advance” menu, and select either “9 pts linearization” or “25 pts linearization” to calibrate your touch screen.
