Sensio SE30716D0 Installation Instructions

GENERAL

THIS PRODUCT CONFORMS TO UK SAFETY STANDARDS AND MUST BE INSTALLED IN
ACCORDANCE WITH CURRENT IEE WIRING REGULATIONS AND BUILDING REGULATIONS (PART P).
THIS PRODUCT MUST BE EARTHED, AND SHOULD NOT BE CONNECTED TO AN UNEARTHED CIRCUIT.
IF THERE ARE ONLY TWO WIRES COMING FROM YOUR POWER SUPPLY IT MEANS THAT THIS FITTING
CAN BE WIRED TO AN UNEARTHED CIRCUIT.
ENSURE THAT CONNECTIONS ARE TURNED OFF AT THE CONSUMER UNIT OR FUSE BOARD BEFORE
INSTALLING OR CARRYING OUT ANY MAINTENANCE.
THIS PRODUCT IS FOR IN DOOR USE ONLY.
THIS PRODUCT IS IP44 RATED AND CAN BE INSTALLED IN BATHROOM ZONE 2 (AS DEFINED BY THE IEE
WIRING REGULATIONS) AND BEYOND. SEE BATHROOM DIAGRAM BELOW.
REPLACE FAILED LAMPS IMMEDIATELY. ALLOW THE GLASS, LAMP AND FITTING TO COOL
BEFORE REPLACING THE LAMP.

IEE Bathroom Zones Diagram

zone
2
SE30716D0
IMPORTANT

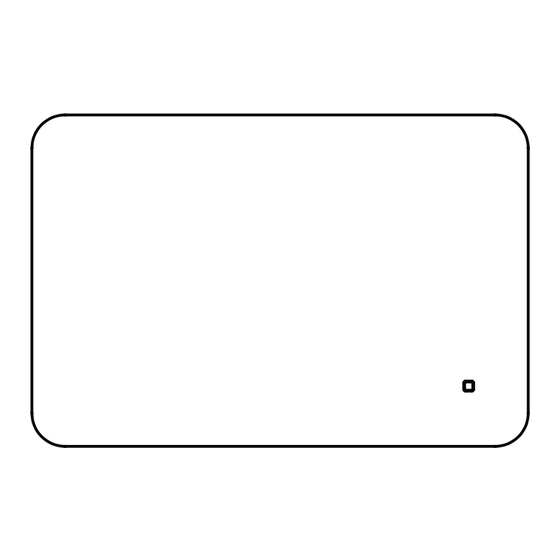

LED MIRROR - SE30716D0 INSTALLATION INSTRUCTIONS
60CM
60CM
zone
1
zone
zone
2
2
225cm
OUTSIDE ZONES
1 - 2
Do NOT strike mirror glass with hard or pointed items. It is
non abrasive cloth. Do NOT use cleaning agents or abrasive
materials on any type of finished surface. Do NOT allow
moisture to come into contact with the electrical components.

Compliance

This product complies with the following safety standards:
BS EN 60598-1: 2008+A11: 2009, EN60598-2-1: 1989

Wiring

This product is manufactured to class I category and requires
COLOUR CODING:
L - Live = Brown
- Neutral = Blue
- Earth = Green & Yellow
Any Queries Call : 0845 0340 780
A
