Vermeiren 9139SPAV Instruction Manual

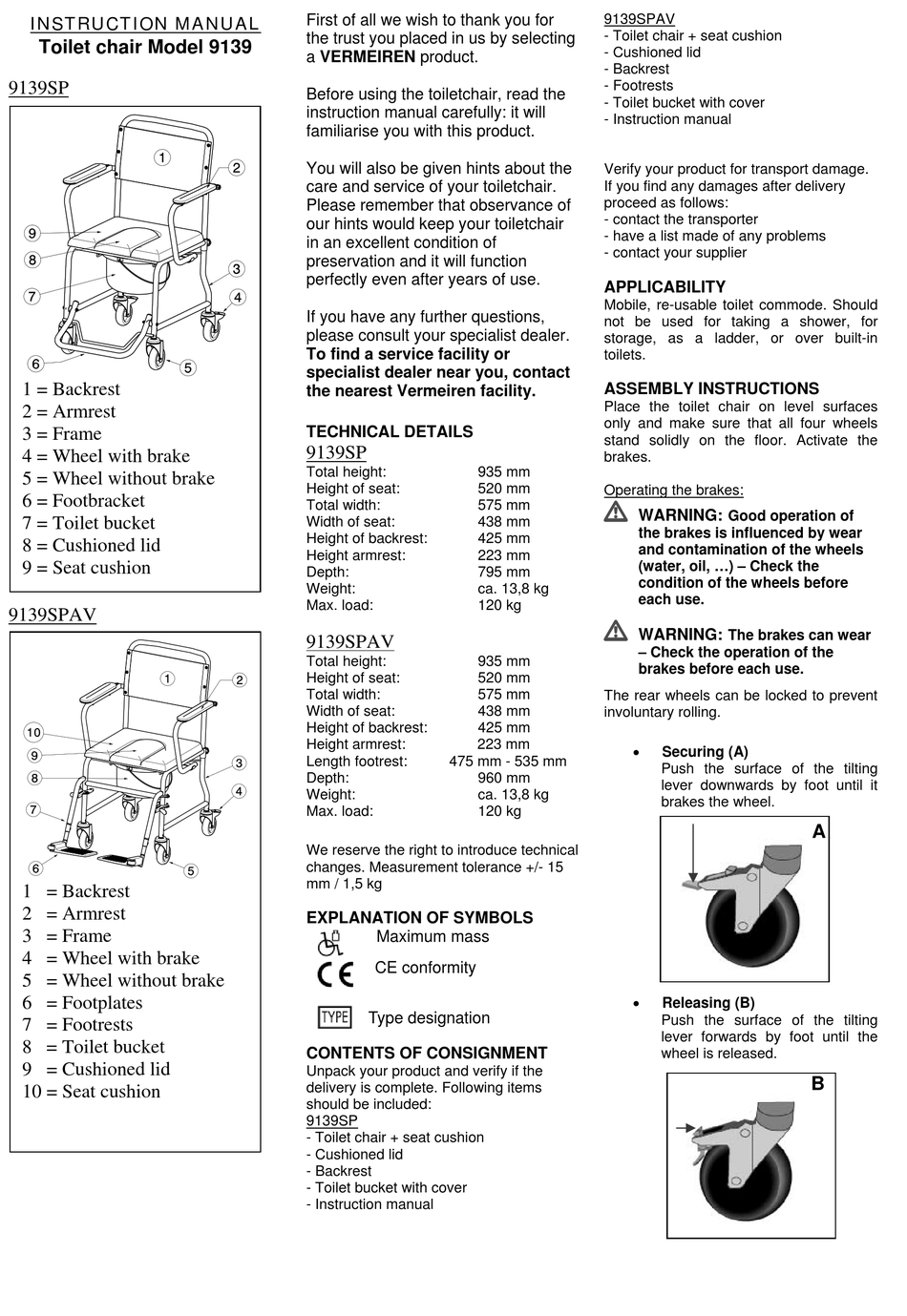

INSTRUCTION MANUAL
Toilet chair Model 9139
9139SP
1 = Backrest
2 = Armrest
3 = Frame
4 = Wheel with brake
5 = Wheel without brake
6 = Footbracket
7 = Toilet bucket
8 = Cushioned lid
9 = Seat cushion
9139SPAV
1 = Backrest
2 = Armrest
3 = Frame
4 = Wheel with brake
5 = Wheel without brake
6 = Footplates
7 = Footrests
8 = Toilet bucket
9 = Cushioned lid
10 = Seat cushion
First of all we wish to thank you for
the trust you placed in us by selecting
a VERMEIREN product.
Before using the toiletchair, read the
instruction manual carefully: it will
familiarise you with this product.
You will also be given hints about the
care and service of your toiletchair.
Please remember that observance of
our hints would keep your toiletchair
in an excellent condition of
preservation and it will function
perfectly even after years of use.
If you have any further questions,
please consult your specialist dealer.
To find a service facility or
specialist dealer near you, contact
the nearest Vermeiren facility.
TECHNICAL DETAILS
9139SP
Total height:
Height of seat:
Total width:
Width of seat:
Height of backrest:
Height armrest:
Depth:
Weight:
Max. load:
9139SPAV
Total height:
Height of seat:
Total width:
Width of seat:
Height of backrest:
Height armrest:
Length footrest: 475 mm - 535 mm
Depth:
Weight:
Max. load:
We reserve the right to introduce technical
changes. Measurement tolerance +/- 15
mm / 1,5 kg
EXPLANATION OF SYMBOLS
Maximum mass
CE conformity
Type designation
CONTENTS OF CONSIGNMENT
Unpack your product and verify if the
delivery is complete. Following items
should be included:
9139SP
- Toilet chair + seat cushion
- Cushioned lid
- Backrest
- Toilet bucket with cover
- Instruction manual
9139SPAV
- Toilet chair + seat cushion
- Cushioned lid
- Backrest
- Footrests
- Toilet bucket with cover
- Instruction manual
Verify your product for transport damage.
If you find any damages after delivery
proceed as follows:
- contact the transporter
- have a list made of any problems
- contact your supplier
APPLICABILITY
Mobile, re-usable toilet commode. Should
not be used for taking a shower, for
storage, as a ladder, or over built-in
toilets.
ASSEMBLY INSTRUCTIONS
Place the toilet chair on level surfaces
only and make sure that all four wheels
stand solidly on the floor. Activate the
brakes.
935 mm
520 mm
Operating the brakes:
L
575 mm
WARNING:
438 mm
the brakes is influenced by wear
425 mm
and contamination of the wheels
223 mm
(water, oil, ...) – Check the
795 mm
condition of the wheels before
ca. 13,8 kg
each use.
120 kg
L
WARNING:
– Check the operation of the
935 mm
brakes before each use.
520 mm
575 mm
The rear wheels can be locked to prevent
438 mm
involuntary rolling.
425 mm
223 mm

960 mm
ca. 13,8 kg
120 kg

Good operation of
The brakes can wear
Securing (A)
Push the surface of the tilting
lever downwards by foot until it
brakes the wheel.
A
Releasing (B)
Push the surface of the tilting
lever forwards by foot until the
wheel is released.
B
