◈ Please read this manual thoroughly before installation.
◈ Please visit our website and watch the HD160XT Plus installation video to
assist you in the installation process.
www.zalman.co.kr
The design and specifications of this product may change without prior notice to enhance its quality.
All manuals and user guides at all-guides.com
www.zalmanusa.com

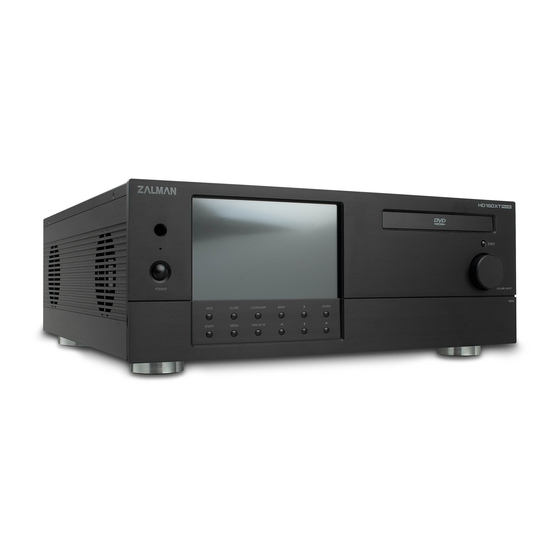

HD160XT Plus
E-mail: zalman@zalman.co.kr
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZALMAN HD160XT PLUS
Summary of Contents for ZALMAN HD160XT PLUS
- Page 1 All manuals and user guides at all-guides.com HD160XT Plus English version ◈ Please read this manual thoroughly before installation. ◈ Please visit our website and watch the HD160XT Plus installation video to assist you in the installation process. E-mail: zalman@zalman.co.kr www.zalman.co.kr www.zalmanusa.com...
-
Page 2: Table Of Contents
Congratulations on your purchase of Zalman’s HD160XT Plus Home Theatre PC Enclosure! You are now about to experience Zalman’s world of silent computing. The HD160XT Plus is designed for ultra quiet home theatre PC operation, utilizing optimized ventilation and anti-vibration reinforcements, making it ideal for environments that require silence such as living rooms, bedrooms, educational facilities, and offices. -
Page 3: Cautionary Notes
(7) If this unit is to be transported long distance, then remove all HDDs (Hard Disk Drive) for separate transport. And place the HD160XT Plus in its own box. ◈ ◈ Disclaimer Zalman Tech Co., Ltd. -
Page 4: Components
All manuals and user guides at all-guides.com HD160XT Plus Components (1) HD160XT Plus Main Components Top Panel HDD Chassis ODD Chassis Main Chassis (2) Case Parts 20 HDD Bolts 20 Dampers (PH #6-32X10) 4 Power Supply Bolts 1 ODD Aluminum Bezel... -
Page 5: Specifications
All manuals and user guides at all-guides.com HD160XT Plus Specifications Enclosure Type Desktop Dimensions (DXWXH) 460mm X 435mm X 160mm (18.1” X 17.1” X 6.3”) Weight 6.8kg (14.9lb) Material Aluminum Motherboard Compatibility Standard ATX / micro ATX Power Supply Compatibility... -
Page 6: Front Panel Buttons & I/O Ports
All manuals and user guides at all-guides.com HD160XT Plus Front Panel Buttons & I/O Ports ① ⑧ ② ③ ⑦ ⑥ ④ ⑤ ① Remote Control Receiver ② System Power Indicator ③ Power Button ④ iMON Control Buttons CLOSE LAUNCHER BLACK... -
Page 7: Installation Guide
All manuals and user guides at all-guides.com HD160XT Plus Installation Guide (1) Opening the Enclosure To remove the Top Panel of the enclosure, unscrew the six Bolts (FH M3x6). Top Panel Bolt (FH M3x6) (2) Removing the ODD and HDD Chassis Remove the Bolts (PWH M4x5), and horizontally pull the ODD and HDD Chassis approximately 15mm (0.6inch) away from the Front and Side Panels, then lift them... - Page 8 All manuals and user guides at all-guides.com HD160XT Plus (3) Assembling the Motherboard and Power Supply Mount the motherboard and power supply by using appropriate bolts. Mount the computer components (CPU, VGA, RAM etc.) onto the motherboard. Power Supply Bolt (PWH M3x5)
- Page 9 All manuals and user guides at all-guides.com HD160XT Plus (4) Installing 5.25 and 3.5 Drives (1) Install the 5.25” drive (ODD) and 3.5” drive (HDD) onto the ODD and HDD Chassis with the appropriate bolts. (2) Slide the ODD and HDD Chassis onto the enclosure’s Front Panel and Side Panel, then secure them onto the panels with the Fixing Bolts(PWH M4x5).
- Page 10 All manuals and user guides at all-guides.com HD160XT Plus (5) Connecting the Cables 1) Power and Data Transmission Cables Connect the Power and Data Transmission Cables (IDE or SATA) required for the HDD, ODD, FDD, VGA etc. 2) Power LED Cable Connect the Power LED Cable (2-Pin or 3-Pin) to the motherboard’s Front Panel Port...
- Page 11 All manuals and user guides at all-guides.com HD160XT Plus 4) LCD and Card Reader PCB Cables ① Connect the D-SUB (RGB) Cable to the system’ s (VGA or motherboard) D-SUB (RGB) Port. ② Connect the Dual USB Cable that is connected to the USB Cable of the LCD and Card Reader PCB to the motherboard’...
- Page 12 All manuals and user guides at all-guides.com HD160XT Plus (6) Attaching the Aluminum ODD Bezel 1)Connect power to the assembled system. Press the ODD Eject Button to eject the ODD Tray. 2)Remove the Plastic ODD Bezel. 3)Remove the Tape Film on the back side of the Aluminum ODD Bezel, and stick the Aluminum ODD Bezel onto the ODD Tray.
-
Page 13: Recommended Use
The noise level of the power supply (main factor of noise emission) will also significantly decrease due to better cooling efficiency. There must be good front to back airflow when placing the HD160XT Plus in cabinets. When the Top Panel’s vent is opened, placement of other devices above the HD160XT Plus can hinder CPU cooling performance. - Page 14 Ultra Quiet VGA cooler VGA Cooler : Ultra Quiet VGA Cooler Power Supply : Power Supply equipped with a 120mm fan (HD160XT Plus has a dedicated Air Vent for power supplies equipped with a 120mm fan)
