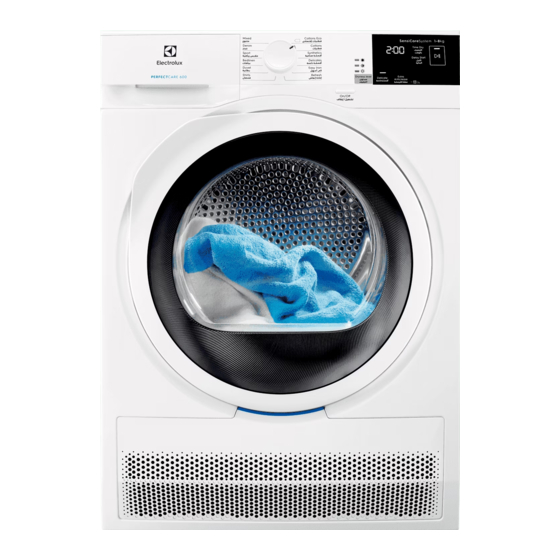

Electrolux EW6C4824CB User Manual

Hide thumbs

Advertisement

Quick Links

EW6C4824CB
EN
Tumble Dryer
User Manual

Advertisement

loading

  Related Manuals for Electrolux EW6C4824CB

  Summary of Contents for Electrolux EW6C4824CB

  • Page 1 EW6C4824CB Tumble Dryer User Manual...
  • Page 2: Table Of Contents

    1369/2017......................21 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 If the tumble dryer is put on top of a washing machine, • use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory. Read it carefully before installation (refer to the Installation leaflet).
  • Page 5: Safety Instructions

    ENGLISH removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer. Items such as foam rubber (latex foam), shower caps, • waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
  • Page 6: Product Description

    2.3 Use • Do not use water spray and steam to clean the appliance. WARNING! • Clean the appliance with a moist soft Risk of injury, electric shock, cloth. Only use neutral detergents. Do fire, burns or damage to the not use any abrasive products, appliance.
  • Page 7: Control Panel

    ENGLISH For ease of loading laundry or ease of installation the door is reversible. (see separate leaflet). 4. CONTROL PANEL Programme knob and RESET On/Off button switch Press the touch buttons with Display your finger in the area with the symbol or name of the Time Dry touch button option.
  • Page 8: Programme Table

    Symbol on the display Symbol description check Heat Exchanger indicator: clean filter indicator: drain the water container indicator: child lock on wrong selection or knob is in the "Reset" po‐ sition programme duration time Drying duration delay start duration 5.
  • Page 9: Options

    ENGLISH Programme Load Properties / Fabric type Easy care fabrics for which a minimum of ironing is necessary. The drying results can be differ‐ ent from one type of fabric to the 1,5kg (or 7 Shirts other. Shake the items before shirts)/ you put them in the appliance.
  • Page 10: Settings

    6.4 Time Dry We recommend that you set a short duration for small You can set the programme duration, quantities of laundry or for from a minimum of 10 minutes to a only one item. maximum of 2 hours. The required duration is related to the quantity of laundry in the appliance.
  • Page 11 ENGLISH 2. Press and hold touch button (E) for a If the display returns to few seconds. the normal mode (the The child lock indicator comes on. time of the selected programme from step 2. It is possible to deactivate will be displayed), while the child lock option while a setting the degree of...
  • Page 12: Before First Use

    2 seconds touch buttons (A) and (B) at the same time. 8. BEFORE FIRST USE • Clean the tumble dryer drum with a Rear drum packaging is moist cloth. removed automatically when • Start a 1 hour programme with moist dryer is activated for the first laundry.
  • Page 13: Hints And Tips

    ENGLISH 2. Open the appliance door. • The indicators Filter and Tank 3. Remove the laundry. comes on. 4. Close the appliance door. • The Start/Pause indicator is on. The appliance continues to operate with Always clean the filter and the anti-crease phase for approximately empty the water container 30 minutes or more if Extra Anticrease...
  • Page 14: Care And Cleaning

    11. CARE AND CLEANING 11.1 Cleaning the filter 5. 1) 1) If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner. 11.2 Emptying the water container...
  • Page 15 ENGLISH You can use the water from the water container as an alternative to distilled water (e.g. for steam ironing). Before you use the water, remove dirt residues with a filter. 11.3 Cleaning the Heat Exchanger...
  • Page 16: Cleaning The Drum

    11.4 Cleaning the drum Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth. WARNING! CAUTION! Disconnect the appliance Do not use furniture cleaning before you clean it. agents or cleaning agents which can cause corrosion.
  • Page 17: Technical Data

    ENGLISH Problem Possible solution The laundry is too wet. Spin the laundry in the washing machine again. Ensure that the room temperature is higher than +5°C and lower than +35°C. Optimal room temperature is 19°C to 24°C. Set the Time Drying or the Extra Dry pro‐ gramme.
  • Page 18: Consumption Data

    Energy efficiency class Energy consumption on the standard cot‐ 4,81 kWh ton programme with the full load. Energy consumption on the standard cot‐ 2,52 kWh ton programme with the partial load. 560,5 kWh Annual energy consumption 0,05 W Left-on mode power absorption...
  • Page 19: Quick Guide

    ENGLISH Energy Drying consump‐ Programme Spun at / residual humidity time tion Synthetics 3,5 kg Cupboard Dry 1200 rpm / 40% 55 min. 1,57 kWh 800 rpm / 50% 71 min. 1,89 kWh 1) For partial loads, the cycle time is shorter and appliance uses less energy. 2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase the energy consumption.
  • Page 20: Cleaning The Filter

    14.2 Cleaning the filter At the end of each cycle the filter symbol appears on the display and you must clean the filter. 14.3 Programme table Programme Load Properties / Fabric type Cycle to be used to dry cotton with "cotton cupboard"...
  • Page 21: Product Information Sheet In Reference To E.u. Regulation 1369/2017

    15. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017 Product Information Sheet Trade Mark Electrolux Model EW6C4824CB, PNC916098231 Rated capacity in kg Air vented or condenser tumble dryer Condenser Energy efficiency class Energy consumption in kWh per year, based on 160 dry‐...
  • Page 22 Energy consumption of the standard cotton programme at 4,81 full load in kWh Energy consumption of the standard cotton programme at 2,52 partial load in kWh Power consumption of the off-mode in W 0,05 Power consumption in left-on mode in W...
  • Page 23 ENGLISH...
  • Page 24 www.electrolux.com/shop...
