Summary of Contents for Watnext WatHome20 Series

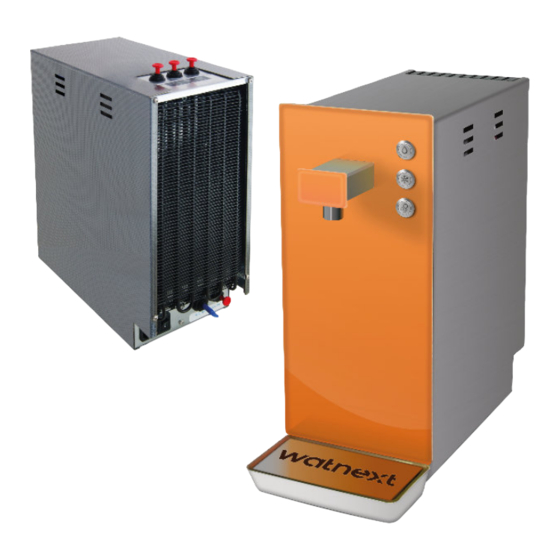

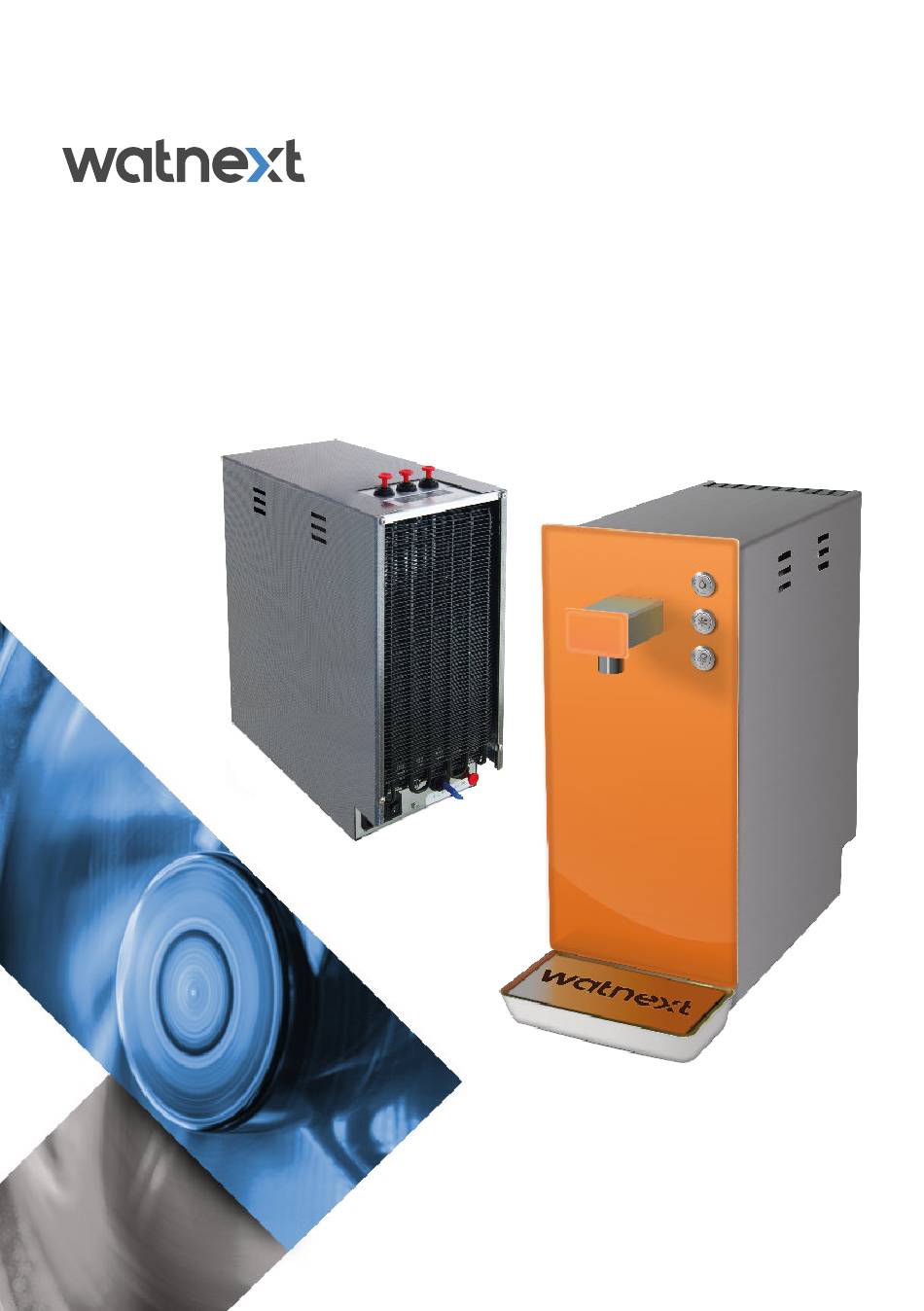

- Page 1 WatHome20 Overcounter and undercounter water coolers Instruction manual WatHome20Up, WatHome20In...
- Page 2 Watnext Industries srl Via Malta 2/8 - 16121 Genova (ITALY) +39 010 776 6296 info@watnext.it...
-
Page 3: Table Of Contents
Index General Connection and duty instructions ... start ... Use of the following instruction Connection to water supply ... 13 manuale ... 02 Connection with power Pictograms and symbols ... 02 supply ... 14 Customer service and technical Connection with CO₂ cylinder ... 14 support ... -
Page 4: General Instructions
1. General instructions Use of the following instruction manual Please read the safety rules before using the dispenser Pictograms and symbols This manual includes following symbols and pictograms: Suggestion Suggestion and advices to complete procedures in a simple way Read Read safety instructions Beware Procedures that can lead to harm for the dispenser or... -
Page 5: Customer Service And Technical Support
Customer service and technical support Get in touch with the reseller for any information concerning specific settings, maintenance or necessary fixing that are not included in following manual. The reseller is always the most appropriate contact to get the assistance you need. Please be sure to have following data available: •... -
Page 6: Safety Information
2. Safety informations Safety warnings • Do not place the dispenser on inclined surface, pillows, carpets, raised floor or shelf • Only use potable water from water network. Do not use with water coming from wells, rain deposit, rivers and sea water. •... -
Page 7: Technical Data
3. Technical data Technical data 18x47x42 cm Size Weight 12 Kg Power supply 230 V AC Total power absorption 220 W Thermal power 15 l/h Compressor 156 Watt (ΔT = 10°C) Coil Stainless steel AISI 304 Water pump 65 W Fittings Metric 8-6 mm With internal cooling 1,5 l... -
Page 8: Producer Data
Warranty Watnext industries srl covers in warranty the dispenser for 12 (twelve) months from the day of invoice issue to the authorized reseller, that will grant in its turn a legal warranty to end user. -
Page 9: Builder Responsibilities
Watnext industries srl refuses any responsibility in case unauthorized spare parts have been used. Only with authorized spare parts Watnext industries srl can guarantee the conservation of best water features to final user: • Avoid overloading the dispenser (check working limits) •... - Page 10 • The installation should be done in adequate location (avoiding hot sources, far from children reach, not exposed to sun rays and with good flow of air to permit aeration) Builder declines any direct or indirect responsibility that could be due to: •...
-
Page 11: Unpacking
4. Unpacking Warning always check first shipping data (delivery address, destination, package quantity, order number, dispenser model and code, ecc..) Firsy check of supplied material The dispenser must always travel in vertical position. If the dispenser is delivered lying down or upside down, or on its side, the dispenser should be returned, as there is a high chance that the ice-bank will be irreparably compromised. -
Page 12: Visual Examination
They can be useful for future shipping of the dispenser to service center Visual examination The body of the dispenser (chassis) must result intact visually and in perfect conditions. Important Watnext industries srl follows rigid and detailed control procedures before the shipping... -
Page 13: Installation
5. Installation Installation location The location where the dispenser is placed should have following features: • Temperature between +4°c and +35°C • The aeration must be sufficient to allow good performances of cooling systems • Max Humidity 80% • Following ministerial decree 25, the dispenser should be placed in healthy ambient The dispenser must not be placed in open places, exposed to weather, or placed into ambient where it could be subject to smoke, vapor, abrasive... - Page 14 aeration openings/ grids to the storage compartment chosen for the dispenser, in order to clear out the heat produced by cooling system. The dispenser should not be placed near direct or undirect heat sources. Warning the power supply cable and the water supply must absolutely be kept separated.
-
Page 15: Connection And Duty Start
6. Connection and duty start Warning installation must be carried out to the letter by qualified and licensed professional following ministerial decree 37/08. We decline any liability for installation provided by unqualified staff. Avoid temporary connections Connection to water supply Warning always check water supply pressure and place a h2o pressure regulator calibrated to 3 bar upstream of the dispenser. -
Page 16: Connection With Power Supply
dispenser with maximum calibration to 3 bar. Danger a filtration system placed upstream of the dispenser requires a different procedure of work start. The water entering into the dispenser should be particulate-free and clear (no suspended elements). Light waters (like the ones coming from osmosis) can alter CO₂ effervescence. -
Page 17: Regulation Of Co₂ And Temperature
Before opening the CO₂ cylinder, follow the indications given in section "Connection and duty start". Regulation of CO₂ and temperature Once the dispenser is on duty, it is necessary to regulate the level of carbonation and the temperature. CO₂ regulation Sparkling water has two parameters for quality : the level of saturation and the effervescence. -
Page 18: Management Procedures For The Dispenser
through the thermostat placed inside the dispenser: the upper part of the case has to be removed, then it is possible to set the specific black knob “cooler” from 0 to 7- higher values mean cooler water. Flow regulation With a screwdriver the flow regulator placed at the rear of the dispenser can be set as follows: •... - Page 19 Cleaning of draft faucet is essential to prevent water from bacteria contamination. We suggest a daily cleaning with a non-toxic product (hydrogen peroxide).
-
Page 20: Maintenance
7. Maintenance Regular maintenance Cleaning of hydraulic system End user can only carry out regular maintenance operations described in following user guide, with the help of specialist if needed. The constructor declines any liability if the procedures given are not being followed and reserve it’... - Page 21 Warning in case of use of the dispenser in public places (bars, canteen, school, restaurants, companies..) this manual must be integrated with HACCP auto-control procedures that end user will update and edit following regulations given for its type of business Regoular maintenance Frequency of maintenance operations Type of...
-
Page 22: Malfunctioning, Causes, Seek-Out, Interventions
Malfunctioning, causes, seek-out, interventions Malfunctioning Probable cause Suggested intervention Dispenser will not switch • No power supply • Check for damages on power supply plant • Burnt fuse and cables Dispenser works but will • Loss of refrigerating • Call specialized not produce cold professional •... - Page 23 Malfunctioning Probable cause Suggested intervention CO₂ is coming out of the • 240 seconds of • Turn the dispenser off spout dispensing exceeded then on • Damaged pump • Do a Reset • Damaged motor • Call specialized professional • Damaged control unit •...
-
Page 24: Law Regulations For Disposal
8. Law regulations for disposal Dismantling dispenser Before dismantling the dispenser, it is necessary to first disassembling its components. For disassembling operations, please ask the reseller. The dispenser is formed by multiple parts with different material that need to be separated once dismantled. Plastic has to be separated from metal, copper, electric wires, gasket…... - Page 25 for electronic and electric waste or return the device to the reseller with the purchase of a new device. That is how we can protect the environment and promote the recycling and re-use of material contained in the dispenser Important is is forbidden to illegally dispose the dispenser- an incorrect disposal lead to fines and penal following in charge regulations.
-
Page 26: Electrical System
9. Electrical system phase Thermostat Fuse Termic relay Compressor 220V AC relay Compressor Vent neutral Level unit control Dispensing push buttons 20 1000HZ Carbonator Pump... -
Page 27: Form I
Form I Dispenser duty start form section: Technician details Name of qualified technician Specialised company Signature section: End user details End user name Installation address section: New owner* Name of qualified technician Specialized company Signature New end user name New installation address Only to be filled out in case of transfer of ownership Functioning test H₂O pressure regulator installed... -
Page 28: Form Ii
Form II Regular maintenance form section: Regular maintenance operation Maintenance provided Qualified technician name Specialized company name Maintenance day Signature section: Regular maintenance operation Maintenance provided Qualified technician name Specialized company name Maintenance day Signature section: Regular maintenance operation Maintenance provided Qualified technician name Specialized company name Maintenance day... -
Page 29: Form Iii
Form III Extraordinary maintenance form section: Extraordinary maintenance operation Maintenance provided Qualified technician name Specialized company name Maintenance day Signature section: Extraordinary maintenance operation Maintenance provided Qualified technician name Specialized company name Maintenance day Signature section: Extraordinary maintenance operation Maintenance provided Qualified technician name Specialized company name Maintenance day... - Page 30 Declaration of CE compliance THE PRODUCER Watnext industries srl IT02634150995 Via Malta 2/8 16121 Genova (ITALY) DECLARES under its responsibility that the dispenser “MF10” is compliant with following directives and decrees: 2004/108/CE (electromagnetic compatibility directive) 2006/95/CE (low voltage directive) 2002/95/CE (rohs directive)
- Page 32 www.watnext.it...
