Grundig DNS Universal Quick Start Manual

DNS UNIVERSAL
Socket
EURO-AV
front side
of plug

Scope of delivery

1 decoder module with installation material
1 adapter plate
2 flat ribbon cables
1 15-pin adapter cable Submin-D/Euro-AV
1 installation instructions

General

The DNS UNIVERSAL
cassettes (series
and
STC 50 STC
The following equipment, for example, can be connected to this retrofit kit :
– licensed decoder (descrambler)
– video recorder (e.g. for operation in a hotel), or
– video cameras (e.g. for monitoring playgrounds).
The kit is suited for coupling in and out video and audio signals.
In addition this retrofit kit can remotely be controlled via a 0/12 V switching
voltage, for example, to switch between the signals from a monitor video
camera and SAT TV or SAT radio broadcasts.
The external equipment is switched via the 12 V switching voltage input, pin 3 of the
Sub-Min-D socket, into the signal path.
Most decoders (descramblers), video recorders and video cameras deliver a 12 V
switching voltage at the EURO/AV socket (pin 8 ).
If the connected equipment does not provide a 12 V switching voltage, please
refer to the paragraph "Switching the picture/sound signal of external equipment
permanently into the signal path" on next page.

Remote switching

It is possible to remotely switch between the video/audio signals of SAT broad-
casts and the external equipment.
Switching can be effected, for example, manually, or via a timer, or via a
dimming switch.

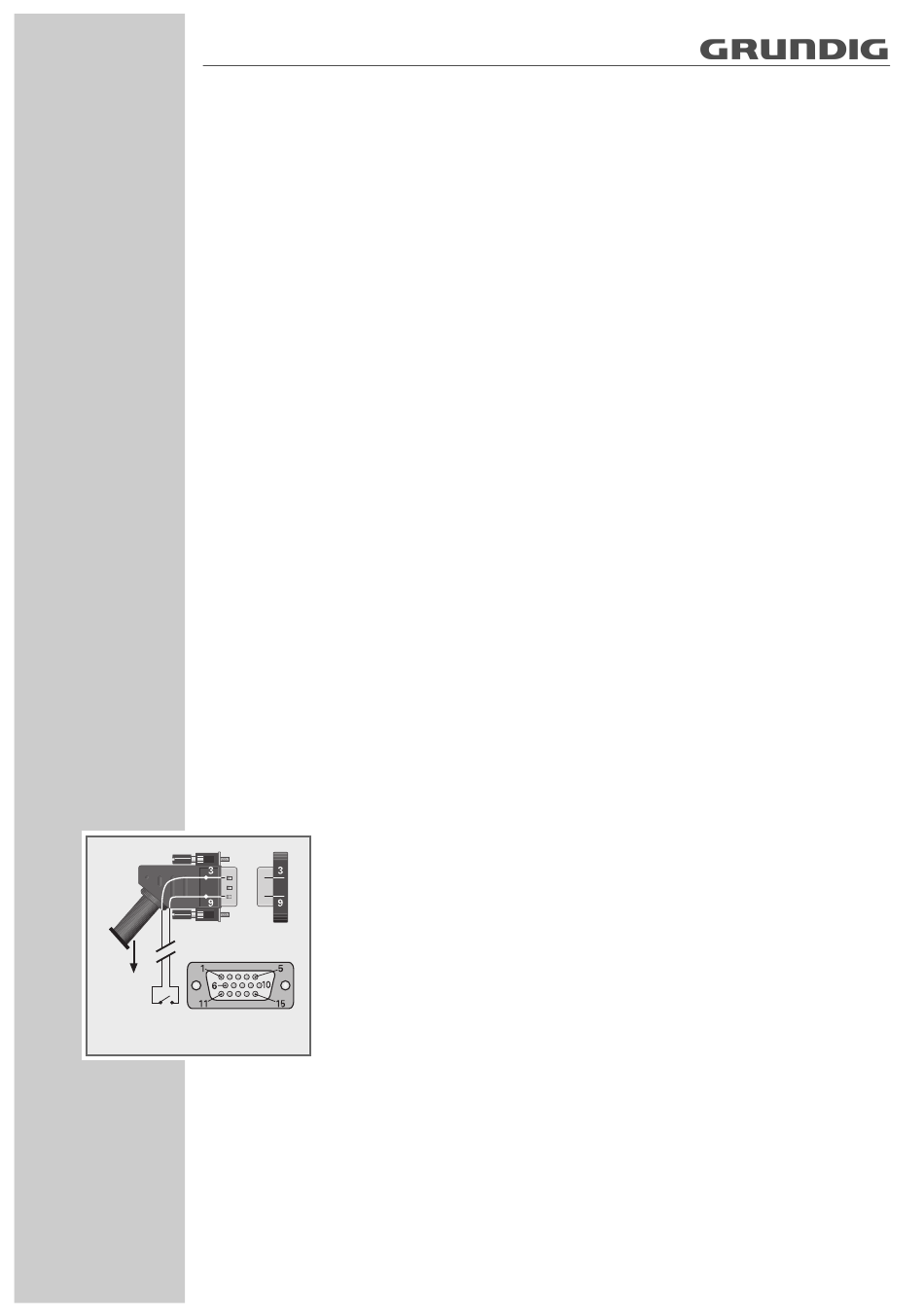

Connect the remote switch to pin 9 (12 V/10 mA switching voltage) and
1
pin 3 inside the 15-pin plug of the adapter cable supplied (see Fig.).
Continued on next page.
serves for retrofitting the analog GRUNDIG SAT twin
and series 12xx) and the GRUNDIG headend stations
33x
1880.
