Summary of Contents for MADRIX NEO

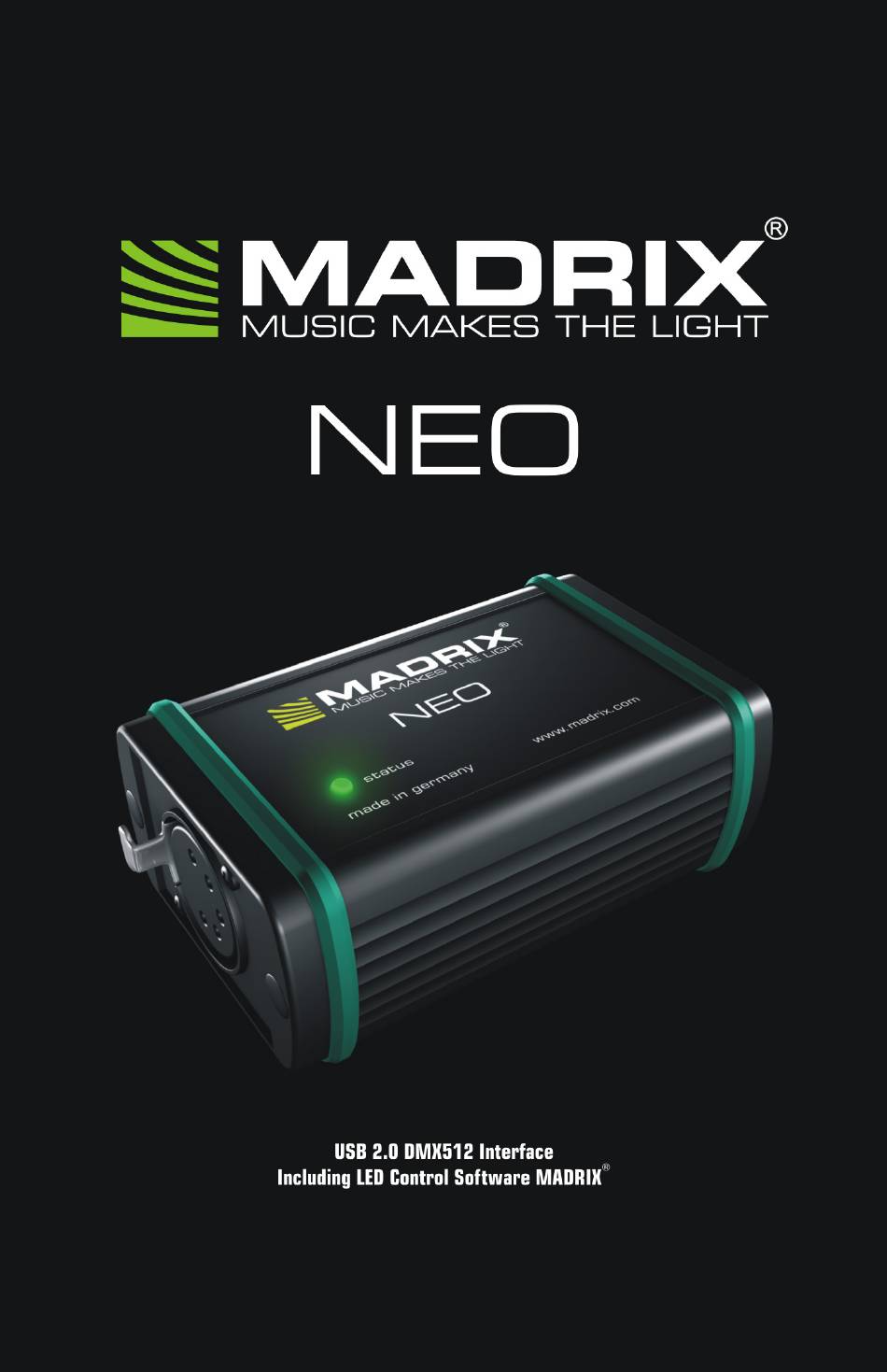

- Page 2 Thank You for Purchasing MADRIX ® Please read this manual carefully and thoroughly before using the MADRIX ® NEO. Make sure that you fully understand all information. ® This MADRIX NEO quick start guide is available in English. The MADRIX ®...
-
Page 3: Trademark Credits
® respective companies. MADRIX is a registered trademark. Package Contents 1x MADRIX ® NEO – DMX512 interface 1x USB cable ® 1x CD-ROM with MADRIX – software and driver 1x Quick start guide Please check the package contents and the interface after unpacking (Please look for broken pins, cracks in the case, or if you can hear loose parts inside the device, etc.)! Contact your supplier if something is missing or damaged. -
Page 4: Safety Instructions And Warranty
Safety Instructions And Warranty Two years of warranty are granted to the purchaser of this product. Warranty applies to constructional fault, material defect, or incorrect assembly the manufacturer has caused or is to be held responsible for. Warranty will be void if the interface is opened, modified, damaged through inappropriate handling and wrong usage, damaged through electric current or damaged through any other cause. - Page 5 CE And RoHS Declaration Of Conformity The device complies with the requirements set forth in the council Directive of the law of the Member States relating to electromagnetic compatibility (2004/108/EC), the Low Voltage Directive (2006/95/EC), and the Directive on restriction of the use of certain hazardous substances in electrical and electronic equipment (2002/95/EC) (RoHS).
-
Page 6: Technical Details
To access the full range of features, it is recommended to install the ® MADRIX software provided with the NEO. Software updates are free of charge for the purchaser of this product for MADRIX 2.x versions. The latest MADRIX ® software including drivers and the latest quick start guide are available online at http://www.madrix.com... -
Page 7: Installing The Software And Drivers
1. Installing The Software And Drivers Insert the CD that comes with the MADRIX ® NEO into the CD-ROM drive of ® your operational computer. The MADRIX software setup will launch automatically. Follow the on-screen installation instructions as described below. - Page 8 The next window offers the chance to select which components and which drivers you want to install. A description is given for each item. Please make sure to select ‘MADRIX’ and ‘Interface Driver’, which are the most important components for operating the MADRIX ®...
- Page 9 You can check your NEO setup within the MADRIX ® software. Go to the menu 'Preferences' 'Device Manager' and select the tab 'DMX Devices'. Now, press ‘Rescan For Devices’. The NEO interface will appear ready in the list. ® Using The MADRIX NEO As DMX-IN Interface ®...
- Page 10 ® MADRIX software. Separate documentation files are automatically installed with the software as well. In case of further questions concerning handling of the NEO or technical problems, please read the MADRIX ® Help and Manual first, contact your dealer, or have a look at the website: http://www.madrix.com...
-
Page 11: Frequently Asked Questions (Faqs)
NEO? Yes. Up to 60 NEOs can be connected to a USB host controller and used at the same time. Please connect every NEO to an active USB 2.0 port or use an USB 2.0 hub with a power supply.
