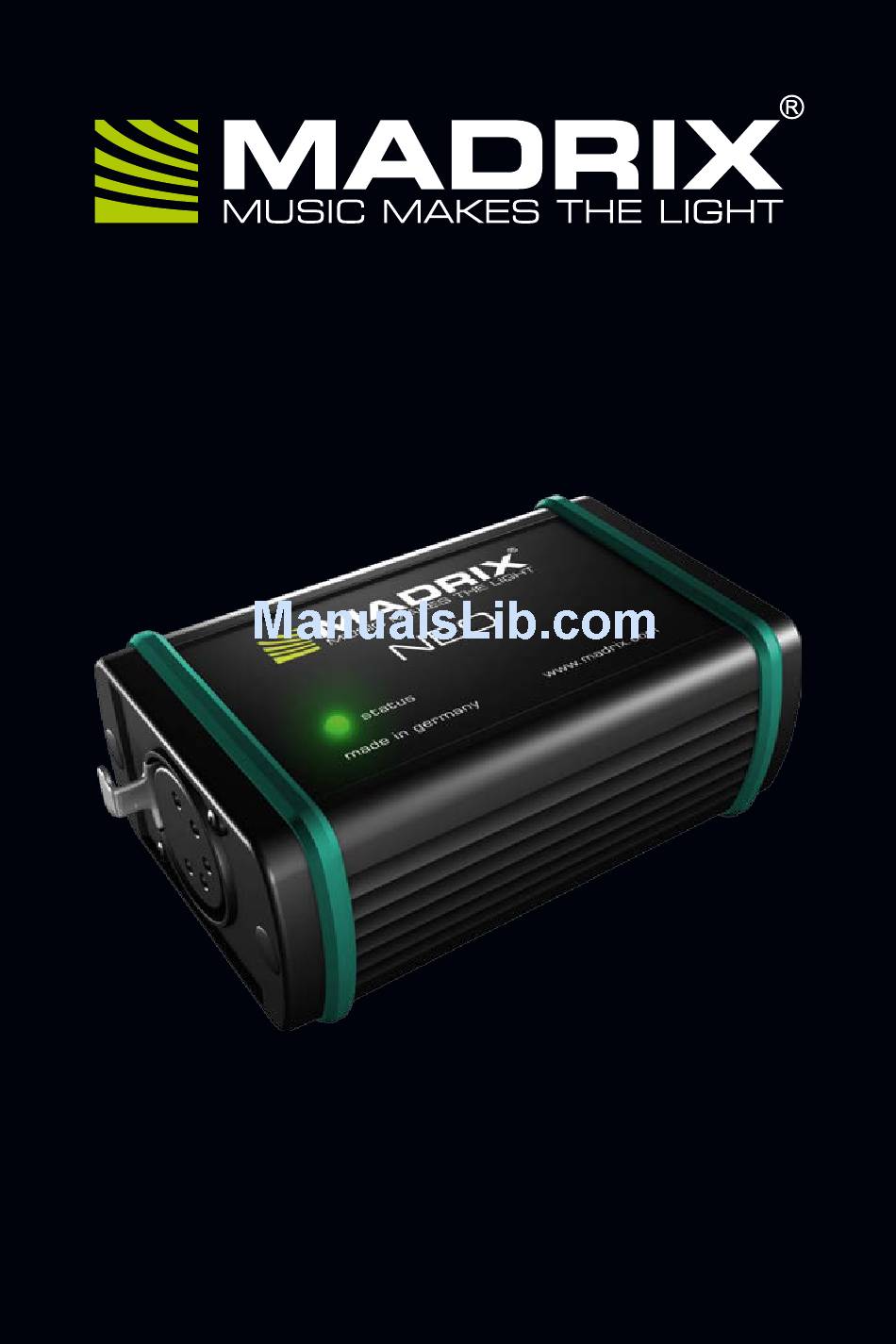

- Page 1 USB 2.0 DMX512 Interface Including LED Lighting Control Software MADRIX ®...
- Page 2 Edition, Last Update: June 2017 Thank You For Purchasing MADRIX NEO! ® Please read this manual carefully and thoroughly before using MADRIX ® NEO. Make sure that you fully understand all information. This MADRIX NEO Quick Start Guide is written in English.
-
Page 3: Trademark Credits
1x MADRIX ® 1x USB cable 1x Quick start guide 1x CD-ROM incl. MADRIX Software and USB drivers ® Please note: Check the package contents and the condition of the interface after unpacking. Contact your supplier if something is missing or damaged. - Page 4 Safety Instructions And Limited Warranty Two years of limited manufacturer’s warranty are granted to the purchaser of this product. Warranty applies to constructional fault, material defect, or incorrect assembly the manufacturer has caused or is to be held responsible for. Warranty will be void if the interface is opened, modified, damaged through inappropriate handling and wrong usage, damaged through overvoltage, or damaged through any other cause.
-
Page 5: Fcc Declaration Of Conformity
CE And RoHS Declaration Of Conformity RoHS The device complies with the requirements set forth in the council Directive of the law of the c o m p l i a n t Member States relating to electromagnetic compatibility (2004/108/EC), the Low Voltage Directive (2006/95/EC), and the Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment (2011/65/EU) (RoHS). -
Page 6: Technical Specifications
Temperature range: 10 °C to 50 °C (Operating) | -10 °C to 70 °C (Storage) Relative humidity: 5 % to 80 %, non-condensing (Operating / Storage) PLEASE ALWAYS CONNECT EVERY NEO TO AN ACTIVE USB 2.0 PORT OR USE A USB 2.0 HUB WITH ITS OWN POWER SUPPLY. MADRIX 3.X Minimum System Requirements... - Page 7 ‘Browse...’ to choose a location and then click ‘Install’. The installation process may take a few minutes. Sixth, when the ‘Installation Complete’ window appears, click ‘Next >’. Seventh, uncheck ‘Run MADRIX’ and then click ‘Finish’ to complete the installation process.
- Page 8 ® ® the software license for 512 DMX channels. The data output (the license) is automatically activated when you connect the NEO to a computer that has MADRIX installed and running and the USB drivers enabled in the software. ®...
- Page 9 (Cont.) and activate ‘Enable’ and ‘Output’ in the section ‘Settings’. Click ‘Apply’ to confirm and then ‘OK’ to close the Device Manager. Data will now be sent to MADRIX NEO via USB cabling and distributed to the ® XLR output port.
- Page 10 ® ‘Preferences’ à ‘Device Manager...’ à tab ‘DMX Input’. Choose a list entry (‘Universe’ 1 to 8), select the NEO as ‘DMX-IN Device’, and activate ‘Remote’. Then, choose one of the input protocols in the section ‘Remote Control’. Click ‘Apply’. Close the window with ‘OK’. Learn more in the software user manual.
-
Page 11: Frequently Asked Questions (Faqs)
® Yes. Up to 60 NEOs can be connected to a USB host controller and used at the same time. Please connect every NEO to an active USB 2.0 port or use a USB 2.0 hub with a power supply.
