Panasonic TC-15PM10R Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. TV
  5. TC-15PM10R
  6. Service manual

Panasonic TC-15PM10R Service Manual

Mx-7 chassis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Specification
Power Source :
Power Consumption :
Aerial Impedance:
Receiving System :
Receiving Channels :
VHF
UHF
CATV
Intermediate Frequency :
Video
Sound
AC AUTO 110-240V, 50/60Hz
75Ω unbalanced Coaxial type
17 System
2-12 (PAL/SECAM B,K1) 0-12
(PAL B AUST)1-9 (PAL B N.Z) 1-
12 (PAL/SECAM D) 1-12 (NTSC M
JAPAN) 2-13 (NTSC M U.S.A)
21-69 (PAL G,H,I/SECAM
G,K,K1)28-69 (PAL B AUST) 13-
57 (PAL D,K)13-62 (NTSC M
JAPAN)14-69 (NTSC M U.S.A)
S1-S41(OSCAR) 1-125 (U.S.A
CATV) C13-C41(JAPAN) S21-S41
(HYPER)Z1-Z37 (CHINA)
38.0 MHz
31.5 MHz (D,K) / 32.5MHz (B,G)
32.0 MHz (I) / 32.5MHz (M)
TC-15PM10R
MX-7 Chassis
Colour
69W
Video / Audio Terminals :
FAV In :
Monitor Out :
RAV In :
Audio in:
High Voltage :
Picture Tube :
Audio Output :
Dimensions :
Mass :
Specifications
are
dimensions shown are approximate.
© 2001 Matsushita Electric Industrial Co., Ltd. All
rights
distribution is a violation of law.
ORDER NO. MTV 0006136C3

Colour Television

33.57
MHz
(SECAM) 32.5 MHz (B,G)33.75
MHz (SECAM) 34.42 MHz (NTSC)
Video In 1 Vp-p 75Ω Video In
Video Out1 Vp-p 75ΩAudio
OutApprox, 400mVrms
Video In 1 Vp-p 75Ω
Approx. 400m Vrms
27.5 kV ( ± 1.0 )at zero beam
A36LTN194x36cm (15
inches)Measured diagonally, 90°
Height : 373.5 mmWidth : 385.0
mmDepth : 379.8 mm
subject
to
change
withoutnotice.Mass
reserved.
Unauthorized
(PAL)33.6
MHz
Approx, 400mVrms
current
deflection
3.5W
12.5 kg
and
copying
and

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TC-15PM10R

Summary of Contents for Panasonic TC-15PM10R

  • Page 1: Colour Television

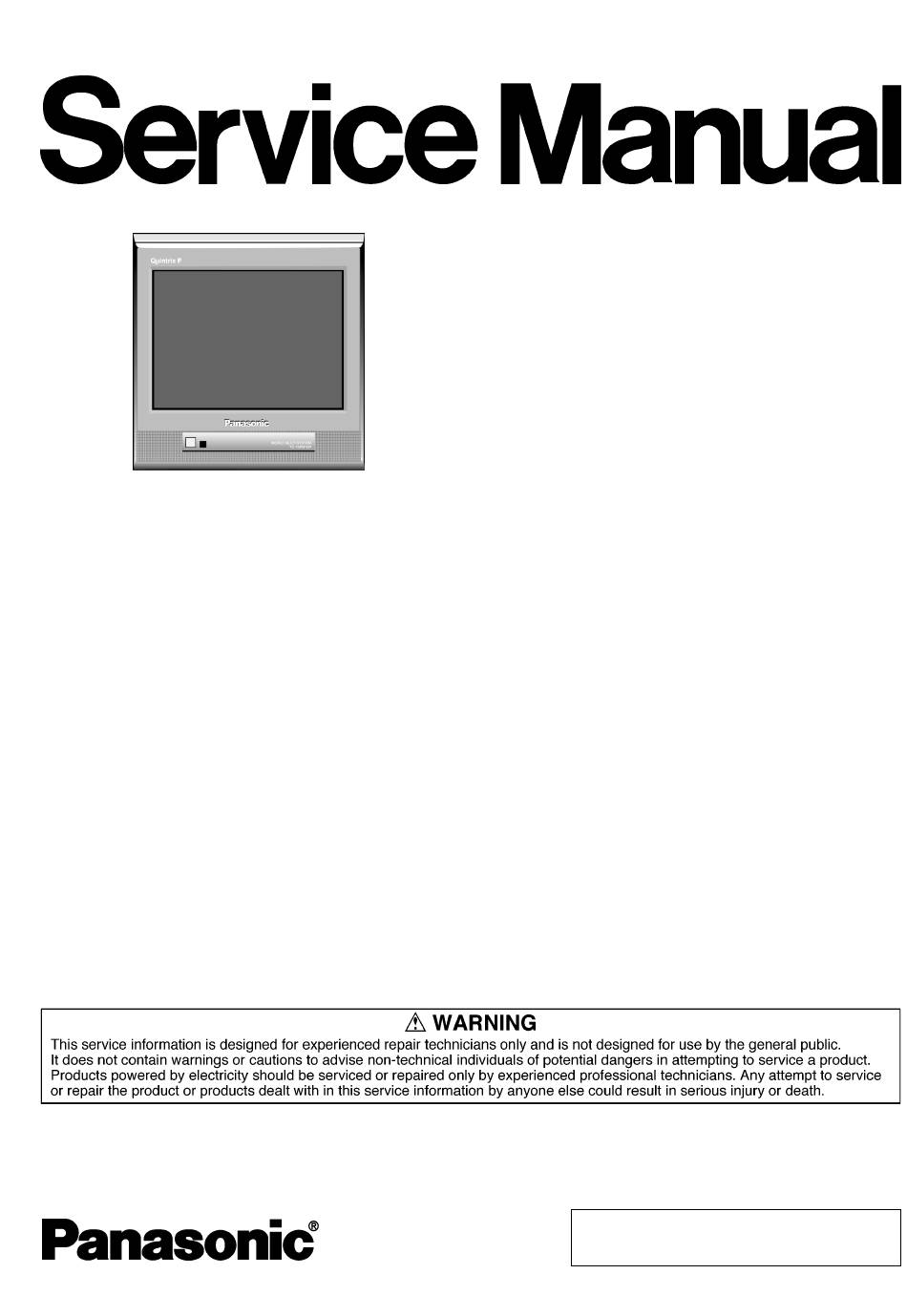

    ORDER NO. MTV 0006136C3 Colour Television TC-15PM10R MX-7 Chassis Specification Power Source : AC AUTO 110-240V, 50/60Hz Colour 33.57 (PAL)33.6 (SECAM) 32.5 MHz (B,G)33.75 Power Consumption : MHz (SECAM) 34.42 MHz (NTSC) Aerial Impedance: 75Ω unbalanced Coaxial type Video / Audio Terminals :...

  • Page 2: Table Of Contents

    1.3. Leakage Current Hot Check (Fig. 1) 4 Z1-BOARDTNP4G139AA 1.4. X-Radiation 5 A-BOARDTNP4G136AD(M’EAST)TNP4G136AU(S’PORE) 1.5. MX-7 Chassis Block Diagram 6 Schematic Diagram for models TC-15PM10R (MX-7 Chassis) 2 Service Hints 2.1. Service Position for E-Board 7 CRT 2.2. Factory mode adjustment 8 Speakers 2.3.

  • Page 3: X-Radiation

    TC-15PM10R Fig. 1 1.4. X-Radiation Warning : The potential sources of X-Radiation in TV set are the EHT section and the picture tube. When using a picture tube test jig for service, ensure that jig is capable of handling 28.5kV without causing X-Radiation. Note: It is important to use an accurate periodically calibrated high voltage meter.

  • Page 4: Service Hints

    TC-15PM10R 2 Service Hints 2.1. Service Position for E-Board 1. Remove the back cover. 2. Stand the TV set as shown in fig. 7 3. Remove the A-Board from the TV set by pulling the main board out as shown in figure 7.

  • Page 5: Adjustment Procedure

    TC-15PM10R 3. Set the data Sub Bright, Bright. 4. In service Mode at ‘Bright’ dac press [5] in factory mode to enter vertical line and adjust by volume down or up button. 5. Adjust “Screen VR” until I-H Line appears.

  • Page 6: Adjustment

    TC-15PM10R 2. Pic Menu: Dynamic Normal, Confirm Contrast - 63, Sub Contrast - 21. 3. Channel colour set --------- STD 4. Connect TPA 10 to TPA 20. 5. Set (A) to 2.3 ± 0.2V by BRT (CHK2) Fig. 1. 2.7.
  • Page 7 TC-15PM10R Before Colour Purity, Convergence and White Balance adjustment are attempted, V. Height, H. Centre and Focus adjustments must be completed. Colour Purity Convergence 1. Set the Brightness and Contrast controls to their maximum 1. Apply a crosshatch pattern signal and Normalize Contrast positions.
  • Page 8 TC-15PM10R Fig. 24 Fig. 25 Note: 1. Wedge A, B and C should be inserted following the following sequence of 1, 2 and 3 shown in Fig. 25. 2. The wedges should be set 120° apart from each other. 3. Be certain that four wedges are firmly fixed and the Deflection Yoke is tightly clamped in place.

  • Page 12: Schematic Diagram For Models Tc-15Pm10R (Mx-7 Chassis)

    TC-15PM10R 6 Schematic Diagram for models TC-15PM10R (MX-7 Chassis) IMPORTANT SAFETY NOTICE Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer’s specified parts. Notes: 1. Resistor All resistors are carbon 1.4W resistors unless marked as follows: Unit of resistance is OHM (Ω) (K=1 000 M=1 000 000)

  • Page 13: Crt

    TC-15PM10R 7 CRT...

  • Page 14: Speakers

    TC-15PM10R 8 Speakers...

  • Page 21: Replacement Parts List

    TC-15PM10R 10 Replacement Parts List Important Safety Notice Components identified by ! mark have special characteristics important for safety. When replacing any of these components, use manufacturer’s specified parts. Note: Printed circuit board assembly with “NLA” is no longer available after production discontinuation of the complete set.
  • Page 22 TC-15PM10R Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks MECHANICAL R445 ERJ6GEYJ473 M 47KOHM,J,1/10W PARTS R446 ERJ6GEYJ473 M 47KOHM,J,1/10W A36LTN194X PICTURE TUBE R447 ERJ6GEYJ472 M 4.7KOHM,J,1/10W ETC29C6NA CONVERGENCE YOKE R448 ERJ6GEYJ242 M 2.4KOHM,J,1/10W...
  • Page 23 TC-15PM10R Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1143 ERJ6GEYJ103 M 10KOHM,J,1/10W C814 ECKR1H471KB5 C 470PF, K, 50V R2022 ERJ6GEYJ104 M 100KOHM,J,1/10W C817 B81130C1224M P 0.22UF, 275V R2211 ERJ6GEYJ471 M 470OHM,J,1/10W...
  • Page 24 TC-15PM10R Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D855 D1FL20UF4063 DIODE TXFKY01QH2S CABINET ASSY D856 RN1ZLF-A1 DIODE (S’PORE,CIS ONLY) D857 D1FL20UF4063 DIODE TXFKY01QH2P CABINET ASSY D862 MTZJ6.2C ZENER DIODE (M’EAST ONLY)
  • Page 25 TC-15PM10R Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R655 ERJ6GEYJ103 M 10KOHM,J,1/10W C408 ECQV1H274JL P 0.27UF, J, 50V R660 ERJ6GEYJ274 M 270KOHM,J,1/10W C409 EEUFC1H330B E 33UF, 50V R661 ERJ6GEYJ103 M 10KOHM,J,1/10W...
  • Page 26 TC-15PM10R Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks L552 TSK1045 BEAD CORE OTHERS L620 TSK1045 BEAD CORE TJS4G9010 CONNECTOR L701 ELC10D472E CHOKE COIL K1KA02A00236 CONNECTOR L801 ELF24V019A LINE FILTER K1KA02A00235 CONNECTOR...
