Summary of Contents for ATEN CS261

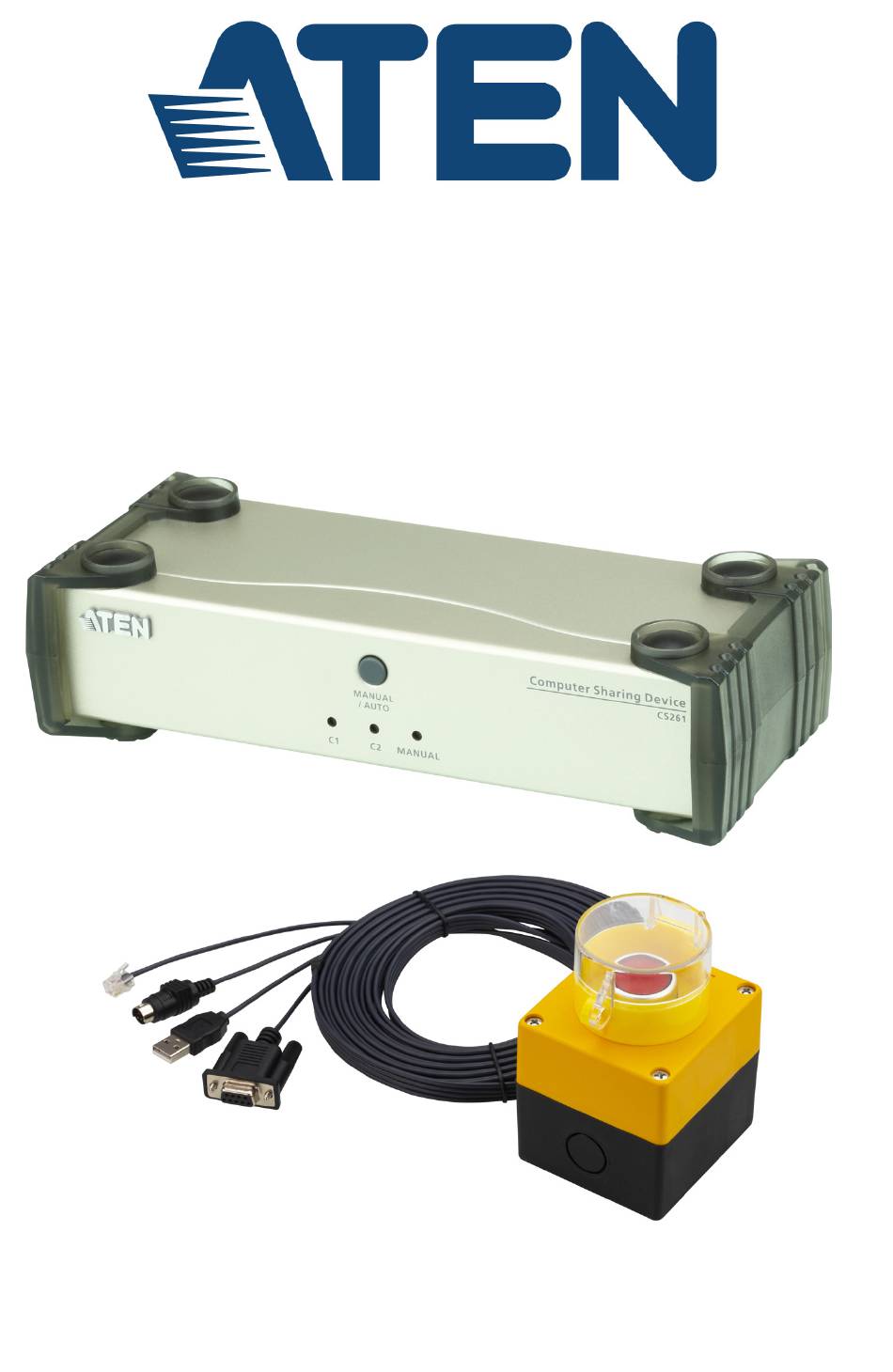

- Page 1 DVI Computer Sharing Device CS261 / CS261TK User Manual www.aten.com...
-
Page 2: Emc Information
CS261 / CS261TK User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
CS261 / CS261TK User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 4: Package Contents
© Copyright 2019 ATEN® International Co., Ltd. Manual Part No. PAPE-0370-AT1G Manual Date: 2019-12-11 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
CS261 / CS261TK Front Panel ......6 CS261 / CS261TK Rear Panel ....... 7 2XRT-0015G KVM over IP Access Control Box . - Page 6 Specifications ..........32 CS261 / CS261TK Factory Default Settings ..... . 34 Operation Modes .
-
Page 7: About This Manual
CS261 / CS261TK User Manual About this Manual This User Manual is provided to help you get the most from your CS261 / CS261TK. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
IP control privilege by simply pressing a control button. It’s fast and easy to set up the 2XRT-0015G. Simply plug the 2XRT-0015G’s cables to the CS261 / CS261TK. There is no need to install software or configure devices - just plug and play,. -
Page 10: Features
CS261 / CS261TK User Manual Features CS261 / CS261TK The CS261 / CS261TK is a DVI computer sharing device that expands your control so that two users can easily share one computer using one of 2 modes: auto and manual ... -
Page 11: 2Xrt-0015G Kvm Over Ip Access Control Box
1. Introduction 2XRT-0015G KVM over IP Access Control Box Users at the Tx local console can enable / disable Rx control privilege by simply pressing a control button Plug and play - no software installation required on either side ... -
Page 12: Requirements
CS261 / CS261TK User Manual Requirements Console A DVI monitor capable of the highest resolution that you will be using on any computer in the installation A USB Keyboard and a USB Mouse Speakers and microphone (optional) -
Page 13: Operating Systems
1. Introduction Operating Systems Supported operating systems are shown in the table below: Version Windows 2000 and higher Linux RedHat 6.0 and higher SuSE 8.2 and higher UNIX FreeBSD 3.51 and higher Solaris 8 and higher Novell Netware 5.0 and higher OS 9 and higher... -
Page 14: Components
Lights when Console 2 accesses the computer. Turns off when Console 1 accesses the computer. MANUAL LED Lights to indicate that the CS261 / CS261TK is set to Manual Mode. In Auto Mode the LED does not illuminate. * In Auto Mode, when neither console is accessing the computer, both Console... -
Page 15: Cs261 / Cs261Tk Rear Panel
The KVM cables that attach to your computers plug in here (see Cables, page 4, for a list of compatible KVM cables). The CS261 / CS261TK’s firmware may also be upgraded connected to this port. Console 1 Ports The cable from the DVI monitor, speakers, microphone, USB keyboard and mouse of Console 1 plugs in here. -
Page 16: 2Xrt-0015G Kvm Over Ip Access Control Box
CS261 / CS261TK User Manual 2XRT-0015G KVM over IP Access Control Box Component Description Indication Control Button / LED Press the button to enable or disable Lights red remote over IP control access. USB Connector Connects to a USB port to power on the device. -
Page 17: Hardware Setup
4. Repeat step 3 for Console 2. 5. Plug the power adapter into the AC power source; plug the power adapter into the power jack on the CS261 / CS261TK. 6. Plug the RJ-11 connector of the 2XRT-0015G to the Firmware Upgrade Port on the rear side of the CS261TK. -
Page 18: Installation Diagram
CS261 / CS261TK User Manual Installation Diagram... -
Page 19: Basic Operation
Chapter 3 Basic Operation Overview As a computer sharing device, the CS261 / CS261TK provides basic access via two different console modes: Console 1 Mode and Console 2 Mode. The CS261 / CS261TK provides three convenient methods of selecting console modes: Pushbutton Console Mode Selection –... -
Page 20: 2Xrt-0015G Kvm Over Ip Access Control Box
CS261 / CS261TK User Manual 2XRT-0015G KVM over IP Access Control Box Note: 2XRT-0015G KVM over IP Access Control Box only comes in the CS261TK package. 2XRT-0015G KVM over IP Access Control Box is a control button accessory to enable / disable remote KVM over IP access. -
Page 21: Operation
Auto Mode operates according to the following rules: 1. When the CS261 / CS261TK is turned on it starts in Auto Mode, and operates on a first come, first served basis. Both Console LEDs are On; the Manual LED is Off. -
Page 22: Private Mode (Console 1)
OSD message will reappear. 3. If the user who has access to the CS261 / CS261TK does not use the keyboard or move the mouse before the Timeout Period (set with hotkeys) elapses: ... -
Page 23: Screen Saver
Press the MANUAL/AUTO Button. Screen Saver To protect the screens, when the CS261 / CS261TK is in Auto Mode or Manual Mode and no one is accessing the computer, both monitors will display a black background. If one of the consoles accesses the computer, the black background screen will disappear. -
Page 24: Manual Mode
Auto Mode → Manual Mode (Console 1) → Manual Mode (Console 2) → Auto Mode When Manual Mode is invoked, the CS261 / CS261TK switches to the selected console and prohibits the other console from controlling the computer. The selected console retains control until the MANUAL/AUTO Button is pressed again. -
Page 25: Timeout
The Timeout Period cannot be applied in Manual Mode and Private Mode. Multiple EDID Selection Users can select from Remix mode, Port1 mode and ATEN Default EDID mode, and from three resolutions. Multiple EDID selection can help improve video quality. -
Page 26: Invoke Hotkey Settings Mode
CS261 / CS261TK User Manual Invoke Hotkey Settings Mode To invoke HSM, please complete the following steps: 1. Press and hold down the Num Lock key. 2. Press and release the minus [-] key. 3. Release the Num Lock key. -
Page 27: Hotkey Settings Mode Summary Table
[R] [Enter] Resets the hotkey settings to their default status. Turn the other console's monitor and audio off or on. (This setting applies until changed or until CS261 / CS261TK is powered off.) [O][N] [Enter] In Auto Mode, determines the amount of time that passes from the last input by the controlling console to when the console lock is released. - Page 28 CS261 / CS261TK User Manual Combination Function [Num [F4] Lists the current hotkey settings via the Paste function Lock] + [-] of a text editor. E.g. Hotkey: [num lock]+[-] and [scroll lock], [scroll lock] OS setting: PC Keyboard emulation: Enabled...
-
Page 29: Keyboard Emulation
Chapter 4. Operation Keyboard Emulation PC Keyboard Mac Keyboard PC Keyboard Sun Keyboard [Shift] Shift [Ctrl] [T] Stop [Ctrl] Ctrl [Ctrl] [F2] Again [Ctrl] [F3] Props [Ctrl] [1] [Ctrl] [F4] Undo [Ctrl] [2] [Ctrl] [F5] Front [Ctrl] [3] [Ctrl] [F6] Copy [Ctrl] [4] [Ctrl] [F7]... - Page 30 CS261 / CS261TK User Manual This Page Intentionally Left Blank...
-
Page 31: The Firmware Upgrade Utility
Introduction The purpose of the Windows-based Firmware Upgrade Utility is to provide an automated process for upgrading all CS261 / CS261TK switches in an installation. The program comes as part of a Firmware Upgrade Package that is specific for each device. -
Page 32: Preparation
PC Port section of your switch. 2. Shut down all the computers on the KVM installation. 3. The CS261 / CS261TK now enters Firmware Upgrade Mode. The two Ports LEDs flash together to indicate that the unit is in Firmware Upgrade Mode. -
Page 33: Starting The Upgrade
Chapter 5. The Firmware Upgrade Utility Starting the Upgrade To upgrade the firmware: 1. Run the downloaded firmware upgrade package file by double-clicking the file icon. The Firmware Upgrade Utility welcome screen appears: Note: The screens shown in this section are for reference only. The wording and layout of the actual screens put up by the Firmware Upgrade Utility may vary slightly from these examples. - Page 34 CS261 / CS261TK User Manual 4. Select your device. Its description appears in the Device Description panel. Click Next to perform the upgrade. If you enabled Check Firmware Version, the Utility compares the device’s firmware with that of the upgrade file’s. If it finds that the device’s firmware is newer than the upgrade or equal to it, it brings up the dialog box informing you of this and gives you the option to Continue or Cancel.
-
Page 35: Upgrade Succeeded
Chapter 5. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful. Click Finish to close the Firmware Upgrade Utility. Set up your KVM installation again. See Installation Diagram, page 10. Upgrade Failed If the Upgrade Succeeded screen doesn't appear, it means that the upgrade failed to complete successfully. -
Page 36: Firmware Upgrade Recovery
When the I/O firmware upgrade fails. To perform a firmware upgrade recovery, do the following: 1. Disconnect the USB connectors on the KVM cables from the computer. 2. Power on the CS261 / CS261TK. It will now work with the original firmware. -
Page 37: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, etc.). If the device falls, serious damage will result. - Page 38 CS261 / CS261TK User Manual To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or un-interruptible power supply (UPS). Position system cables and power cables carefully; Be sure that nothing rests on any cables.
-
Page 39: Technical Support
(including Software Updates electronically available manuals); and the latest drivers and firmware for your product are available at our web- site: http://www.aten.com Telephone Support 886-2-8692-6959 North America Email Support Email your questions and concerns to: support@aten-usa.com... -
Page 40: Specifications
CS261 / CS261TK User Manual Specifications Function CS261 Computer Connections Console Selection Pushbutton, RS-232, Hotkey Connectors Console Keyboard 2 x USB Type A Female Ports Mouse 2 x USB Type A Female Video 2 x DVI-D Female (White) Audio 2 x 3.5mm Audio Jack Female (Green - Speaker) 2 x 3.5mm Audio Jack Female (Pink - Mic) - Page 41 Appendix Function 2XRT-0015G Connectors Link USB, PS/2, RJ-11, RS-232 LEDs Status Pressed: Red Light Released: Dim Physical Properties Housing Plastic Weight 0.43 kg (0.95 lb) Dimensions (L x W x H) 7.2 x 10.39 x 11.00 cm (2.83 x 4.09 x 4.33 in.) Note: 2XRT-0015G KVM over IP Access Control Box only comes in the CS261TK package.
-
Page 42: Cs261 / Cs261Tk Factory Default Settings
[Num Lock] + [-] Timeout 5 Seconds Screen Saver 1 minute EDID Mode Remix Mode Keyboard Operating Platform PC Compatible Keyboard Language Layout English Buzzer Enabled Firmware Upgrade Mode Disabled Note: Mode Switching with [Scroll Lock] , [Scroll Lock] is for CS261 only. -
Page 43: Operation Modes
Appendix Operation Modes The below table describes the CS261 / CS261TK’s two operation modes and their setting options. Each setting’s active and inactive users’ statuses, as well as details on switching users, are also included. Operation Setting Active User Inactive User... - Page 44 CS261 / CS261TK User Manual 3. The user with control of the computer can disable display and sound to the other user by using the following hotkey combination: [Num Lock]+[-],[D] 4. The press scroll lock twice to switch to C1 and C2 Mode operation is...
-
Page 45: Troubleshooting
CS261 / CS261TK; confirm KVM cable set is cable set hot-plugging. all KVM cables are properly connected; hot-plugged. power on the CS261 / CS261TK; power on the computers. Graphics card driver is Upgrade to the latest graphics card driver. not up-to-date. -
Page 46: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
