- Page 1 5000 lb. Vehicle Scale System Part No. 67650 For technical support, please contact PROFORM® Directly: Phone: 586-774-2500, 9am-5pm EST, Monday-Friday Email: tech@proformparts.com...

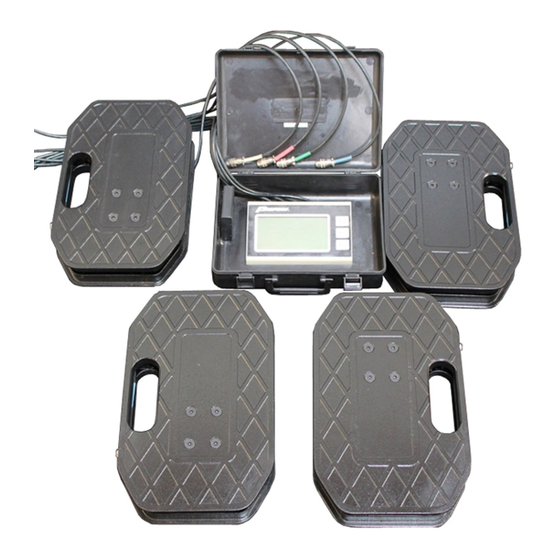

- Page 2 PROFORM Vehicle Scale (p/n 67650) LCD interface 4.0 Main features and parts 1. Four weighing pads and battery powered LCD display unit version 4.0. 2. Each weighing pad has a maximum capacity of 1250 lbs (567 kg.) 3. LCD display unit operates with four AA batteries (included).
- Page 3 On/Off TARE Kg/lb Backlighting LCD Interface 4.0 Buttons Set up configuration Note the notch; fit it to the Fit the male area to the male counterpart in the notch in the wire adapter. scale pad socket.
- Page 4 For accuracy, each connecting wire should connect to its corresponding pad that has the same color tag. Operating instructions. 1. Put each weighing pad next to each wheel. 2. Connect the four connecting wires to their respective pads according to their color coded markings.
- Page 5 Screen #1 Fr :Front weight percent Screen #2 Rr :Rear weight percent Lt :Left total percent Screen #3 Rt: Right total percent...
- Page 6 Cross FL/RR % Screen #4 Cross FR/RL % Screen #5 For more information please visit www.proformparts.com or call our tech team (586)774-2500 9:00 a.m. to 5:00 p.m. EST. Email: tech@proformparts.com Specialty Auto Parts U.S.A., Inc. | 26708 Groesbeck Hwy. | Warren, MI 48089 ©...
