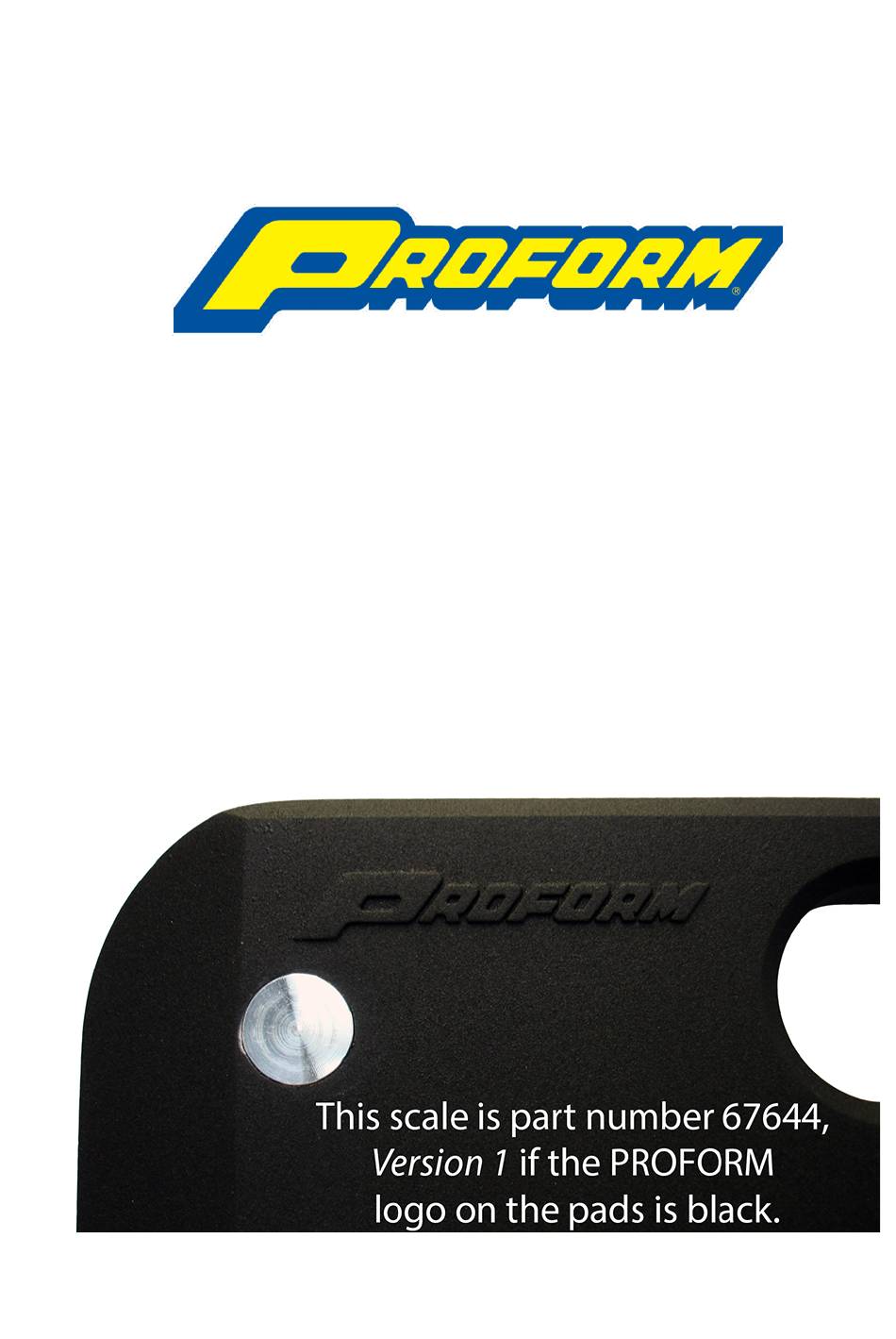

- Page 1 7000 lb. Wireless Vehicle Scale System Part No. 67644, Version 1...
- Page 2 PROFORM 7000 lb. Wireless Vehicle Scale (p/n 67644) Main features and parts 1. Four wireless battery-powered weighing pads and LCD display unit. 2. Each weighing pad has a capacity of 1750 lbs (795 kg). 3. LCD display measures in lbs. or kg for each wheel and the total vehicle weight.
- Page 3 LCD display format Display box battery level indicator ON/OFF Tare Function Backlighting Using the LCD Display Operating instructions. 1. Open the LCD display box, insert 4 AA batteries into the battery pack. 2. Open the battery door of each weighing pad, and insert 2 AA batteries into the battery pack.
- Page 4 6. Power on the LCD display by pressing the “On/Off” button. Wait until the weight readings all show zero or press the “Tare” button to zero. Press “Function” to toggle between lbs and kgs. 7. The battery power indicator represents the amount of battery life available in 3 levels.
- Page 5 Screen #1 Fr: Front weight percent Screen #2 Rr: Rear weight percent Lt: Left total percent Screen #3 Rt: Right total percent...
- Page 6 Cross LF: Left Front, RR: Right Rear percent Screen #4 Cross RF: Right Front, LR:Left Rear percent Screen #5 For more information, please visit www.proformparts.com or call our tech team (586)774-2500 9:00 a.m. to 5:00 p.m. EST. Email: tech@proformparts.com Specialty Auto Parts USA, Inc. | 26708 Groesbeck Hwy. | Warren, MI 48089 ©...
Need help?
Do you have a question about the 67644 and is the answer not in the manual?
Questions and answers

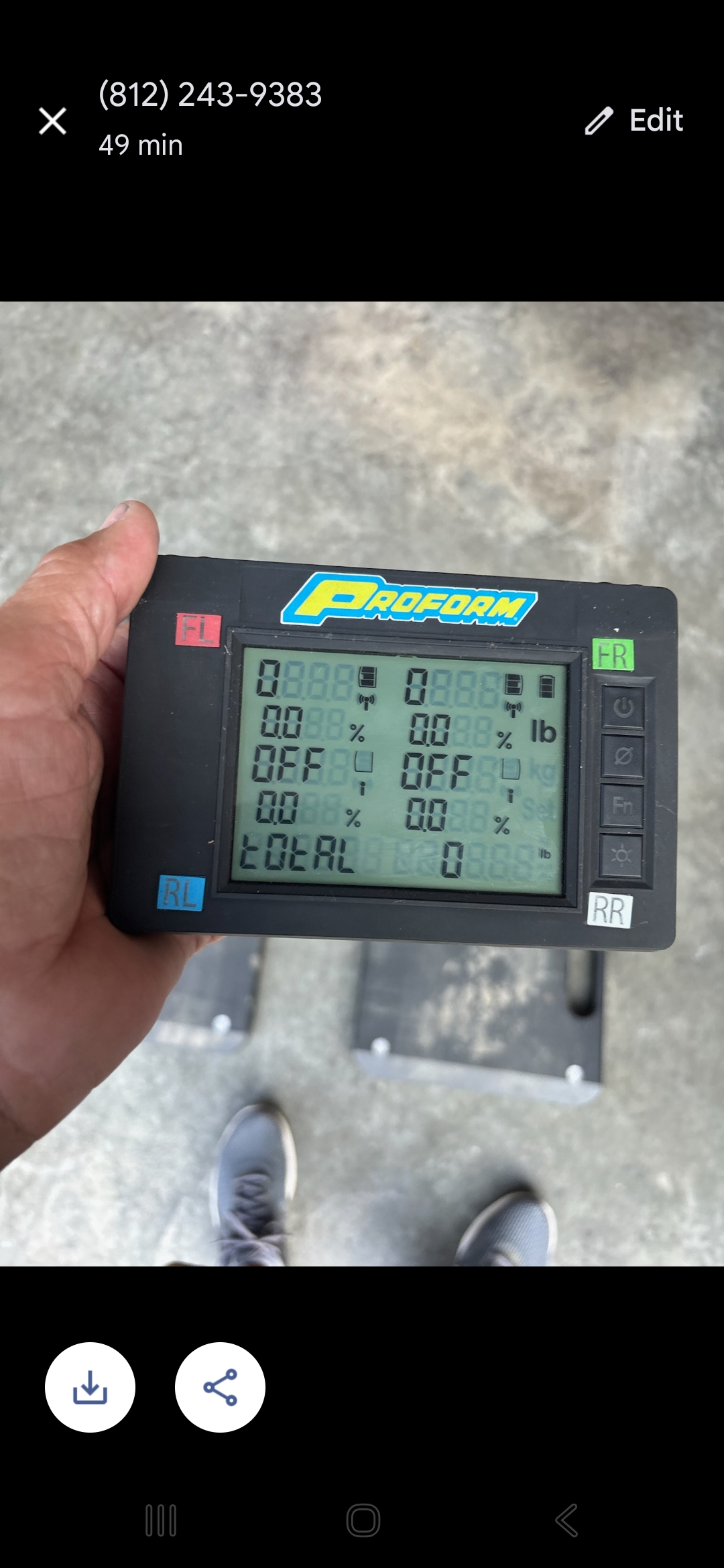

1 can't get 2 of the scales to pair with the head monitor
To troubleshoot the pairing issue between two ProForm scales and the head monitor, follow these steps:
1. Check Batteries: Ensure each weighing pad has two fresh AA batteries and the LCD display box has four AA batteries installed properly. Replace batteries if the LED on a pad looks dim or does not light up.
2. Power On Pads: Switch each pad from ‘0’ to ‘1’ using the small switch near the handle. The LED next to the handle should light up.
3. Correct Placement: Confirm that each scale pad is placed in front of the correct wheel position: FR (Front Right), FL (Front Left), RR (Rear Right), and RL (Rear Left).
4. Zero the Scale: The scale must be zeroed before use. If it shows incorrect readings, zero it again.
5. Check Wireless Signal: Ensure there is no interference and that the wireless signal is strong between the pads and the display.
If the issue persists after these steps, battery replacement or repositioning the pads may help improve pairing.
