- Page 1 Operator’s Manual Synergy Resection™ Wireless Footswitch AR-8315W DFU-0320-3 Rev. 0 09/2019...
- Page 2 This page intentionally left blank DFU-0320-3 Rev. 0 2 of 20...
-
Page 3: Table Of Contents
Contents English Guarantee Safety Definitions of Terminology Transmitter/Receiver Pairing Electromagnetic Interference Equipment Symbols Receiver Transmitter Battery Replacement Cleaning Specifications DFU-0320-3 Rev. 0 3 of 20... -
Page 4: Guarantee
All wireless footswitches sold by Arthrex, Inc. are fully guaranteed as to materials and workmanship for a period of 1 year. Arthrex Inc. reserves the right to perform guarantee service operations in its own factory, at an authorized repair station, or in the customer’s installation. -
Page 5: Safety
Periodically, whenever the integrity of the switch is in doubt, test all functions. Responsibility of the Manufacturer Arthrex is responsible for the effects on safety, reliability, and performance if: • Assembly operations, extensions, readjustments, modifications, or repairs are carried out by persons authorized by Arthrex. -
Page 6: Definitions Of Terminology

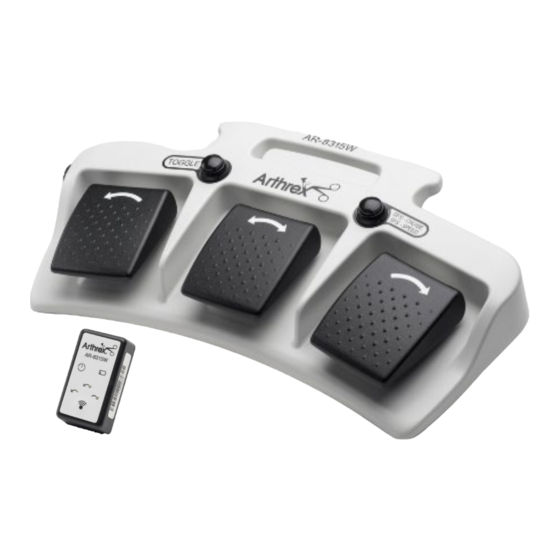

Description Resection™ The AR-8315W - Synergy Wireless footswitch is an accessory of the AR-8305 Resection Synergy console (DFU-0213-XX). The AR-8315W-1 is the Footswitch (also referred to as the transmitter) and the AR-8315W-2 is the Receiver. Having wireless ability allows the user to position the footswitch without the limitation of plugging a cord Resection into the Synergy console. - Page 7 Interfacing to Equipment Footswitch receiver must be connected with equipment using the 805-W49 cable assembly. Be certain to consult manufacturer’s specifications to maintain safe operation. DFU-0320-3 Rev. 0 7 of 20...
- Page 8 CAUTIONS Annual Servicing For continued safety and performance of the switch, it is recommended that the functionality and electrical safety of the switch be verified on an annual basis by an authorized representative. Daily Testing It is essential that the footswitch be inspected every day or before use.
-
Page 9: Transmitter/Receiver Pairing
Transmitter/Receiver Pairing: Resection™ For quick reference and set up, you may refer to the Synergy Wireless Footswitch Quick Start Guide (DFU-0325-SUB-XX). The following procedure needs to be followed if a transmitter or receiver need to be replaced 1. Make sure the footswitch has two (2) new AA alkaline batteries installed. Batteries should be inserted with the + side first and the –... - Page 10 4. Locate the Pairing Buttons on the footswitch and receiver. A. The AR-8315W Wireless Footswitch’s GFS/SFS Mode button is located below the center of the handle (see Figures 3 & 4). The footswitch’s Pairing Button is also located below the handle, adjacent to the GFS/SFS Mode Button (see Figure 4).
-
Page 11: Electromagnetic Interference
Electromagnetic Interference Contains FCC ID: UYI24 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Equipment Symbols
Equipment Symbols The following is a list of symbols used on products manufactured by Arthrex. Some symbols may not appear on your unit. Table 1-2. Equipment Symbols ATTENTION: Consult accompanying documents ALTERNATING CURRENT (AC) EARTH GROUND POWER OFF: disconnection from the mains... -
Page 13: Receiver
Receiver Name Description GREEN Power On Indicator On when there is connection to the console. WHITE Direction On Indicator Left LED On When REVERSE Pedal is On, Right LED On When FORWARD Pedal is On, Top LED On When OSCILLATE Pedal is On. RED Battery/Status LED Indicator Off –... -
Page 14: Transmitter
Transmitter (Footswitch) DFU-0320-3 Rev. 0 14 of 20... - Page 15 Name Description Left Pedal - REVERSE Center Pedal – OSCILLATE Right Pedal – FORWARD TOGGLE Pushbutton CRUISE Pushbutton in GFS Mode SPEED Pushbutton in SFS Mode GFS / SFS Mode Pushbutton Switches between GFS (gas pedal footswitch) mode and SFS (standard footswitch) mode. Pairing Pushbutton Battery Tube *Transmitter and Footswitch are interchangeable words use throughout this manual that...
-
Page 16: Battery Replacement
Battery disposal - Follow the battery manufacturer’s recommendations or your facilities policy for the disposal of used batteries. Arthrex recommends the replacement of all batteries at least once a year for the most optimal and safe operation of the footswitch regardless of actual usage! DFU-0320-3 Rev. -
Page 17: Cleaning
Cleaning The following cleaning instructions are provided. CAUTIONS ABRASION - Do not use abrasive cloth, sharp objects, or abrasive cleaners. DISCONNECTION - Detach the interconnect cables and the AC adapter from the receiver. IMMERSION - Do not immerse the receiver, cables or connectors under running water. -
Page 18: Specifications
Specifications • Range: Typically 60 feet (18.288 meters) • Frequency: 2.4GHz IEEE802.15.4 • Switch Functions: 3 Linear/Switch Pedals & 3 Pushbutton Switch(On/Off) • Latency: 50 milliseconds Maximum • Up to 5 systems working in the same room/area • Auto sleep and extreme low power operation •... - Page 19 This page intentionally left blank DFU-0320-3 Rev. 0 19 of 20...
-
Page 20: Customer Service
Naples, FL 34108-1945 USA Customer Service +1(800) 934-4404 Arthrex, Inc. Toll-Free Technical Support : 1(800) 391-8599, Monday through Friday, 8 : 00 AM – 8 : 00 PM ET. www.arthrex.com Arthrex GmbH Erwin-Hielscher-Strasse 9 81249 München, Germany Tel: +49 89 909005-0 www.arthrex.de...
