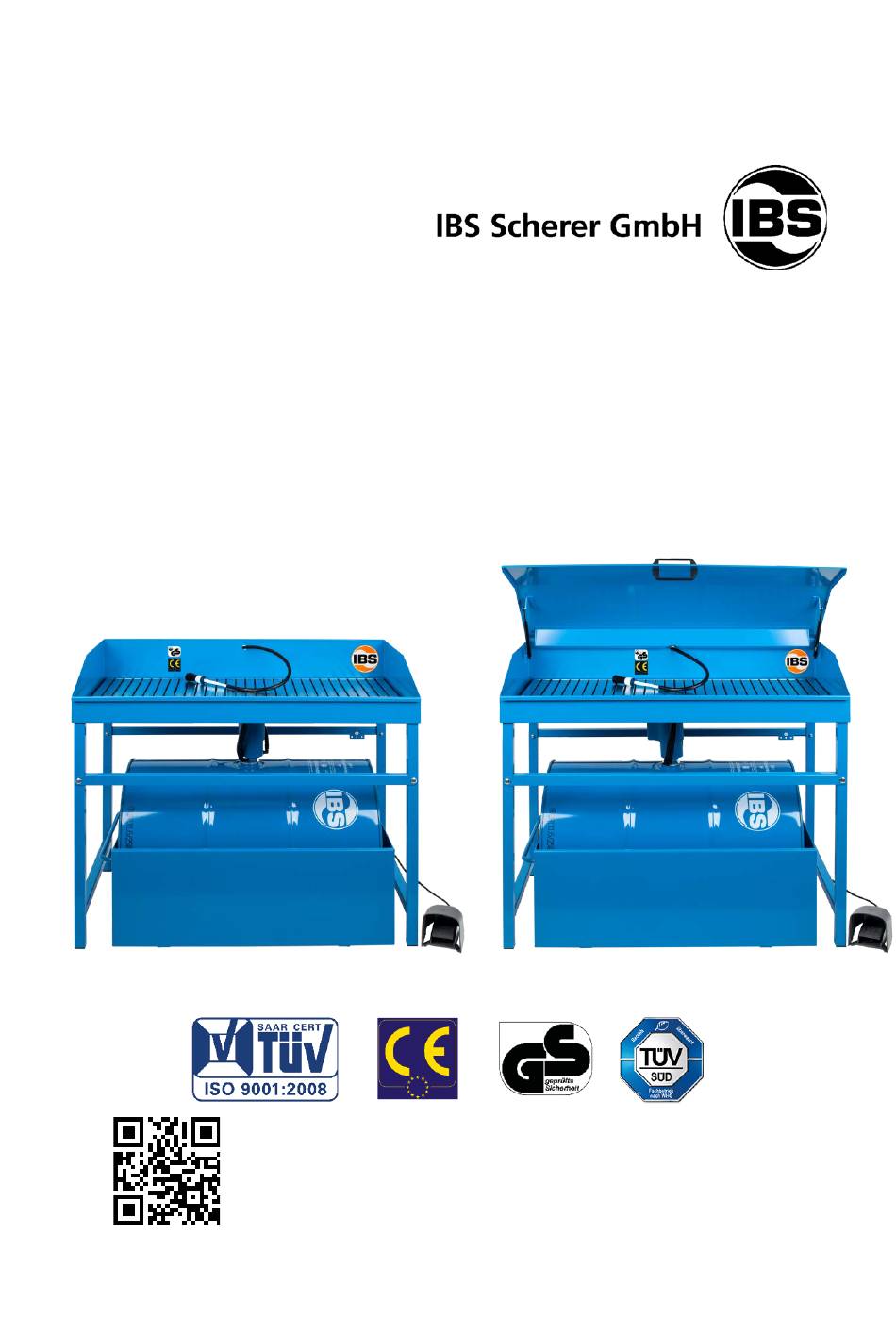

- Page 1 Original operating instructions IBS Parts Cleaning Device Type M Type MD All devices have been tested and certified. Visit our website: www.ibs-scherer.com...
-
Page 2: Table Of Contents
Contents __________________________________________________________________________ 1. About the machine / technical data ...................... 1 2. Proper use ..........................1 2.1. Approved cleaning agents ....................1 2.2. Approved cleaning agents with technical ventilation ............1 2.3. Non-approved cleaning agents ..................2 2.4. Standards ........................2 3. -
Page 3: About The Machine / Technical Data
When using solvents from third-party manufacturers, always read and follow the product information and the EC Safety Data Sheet. Their use must be approved by IBS Scherer GmbH. Please also note the information given in section 2.3. The 3-year extended warranty only applies when IBS Special Cleaning Agents are used. -
Page 4: Non-Approved Cleaning Agents
2.3. Non-approved cleaning agents • Halogenated solvents • Flammable and highly flammable solvents with flash point < 55°C, except for cleaning agents with flash point > 40°C when technical ventilation (exhaust system) is installed 2.4. Standards Always comply with EN 12921-1 and EN 12921-3. 3. -
Page 5: Setup / Commissioning
The device must be installed in a stable, horizontal position on a solvent-resistant floor. 5.2. Space required The device may be placed against a wall. There should be a clear area of approx. 1.5 m in front of the device. -
Page 6: Precautionary Measures To Be Taken By The Operator
A danger area which is appropriate for the operating conditions (e.g. geometry and surface area of workpieces, intensity of cleaning) must be defined. For normal cleaning processes, IBS recommends a danger area of 1 m around the device. The danger area identified by means of a risk assessment:... -
Page 7: Operating The Machine
6.2.1. Assembling the Parts Cleaning Device • We advise a two-man assembly to avoid damaging during the assembly of the Parts- Cleaner-Type M/MD • Remove the packaging • Insert the two base frames (1) into the round pipe sleeves (2) (located directly underneath the tray). -
Page 8: Operation
Liquid level in drum is too Check liquid level, if necessary Pump not pumping ask IBS Scherer to change the drum Pump is faulty Replace pump If the steps described above do not resolve the problem, please contact IBS Scherer GmbH. -
Page 9: Spare Parts List
8. Spare parts list ___________________________________________________________ Spare parts list for IBS Parts Cleaning Devices: Item no. Description Device type BK 50 F2/F2-D G-50-W/I 2222056 IBS special pump, with foot switch 2222040 IBS special pump, without foot switch ...
