Silex technology SX-ULPAN-2402-EVK Startup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
2016/03/03

Advertisement

loading
Need help?

Need help?

Do you have a question about the SX-ULPAN-2402-EVK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silex technology SX-ULPAN-2402-EVK

Summary of Contents for Silex technology SX-ULPAN-2402-EVK

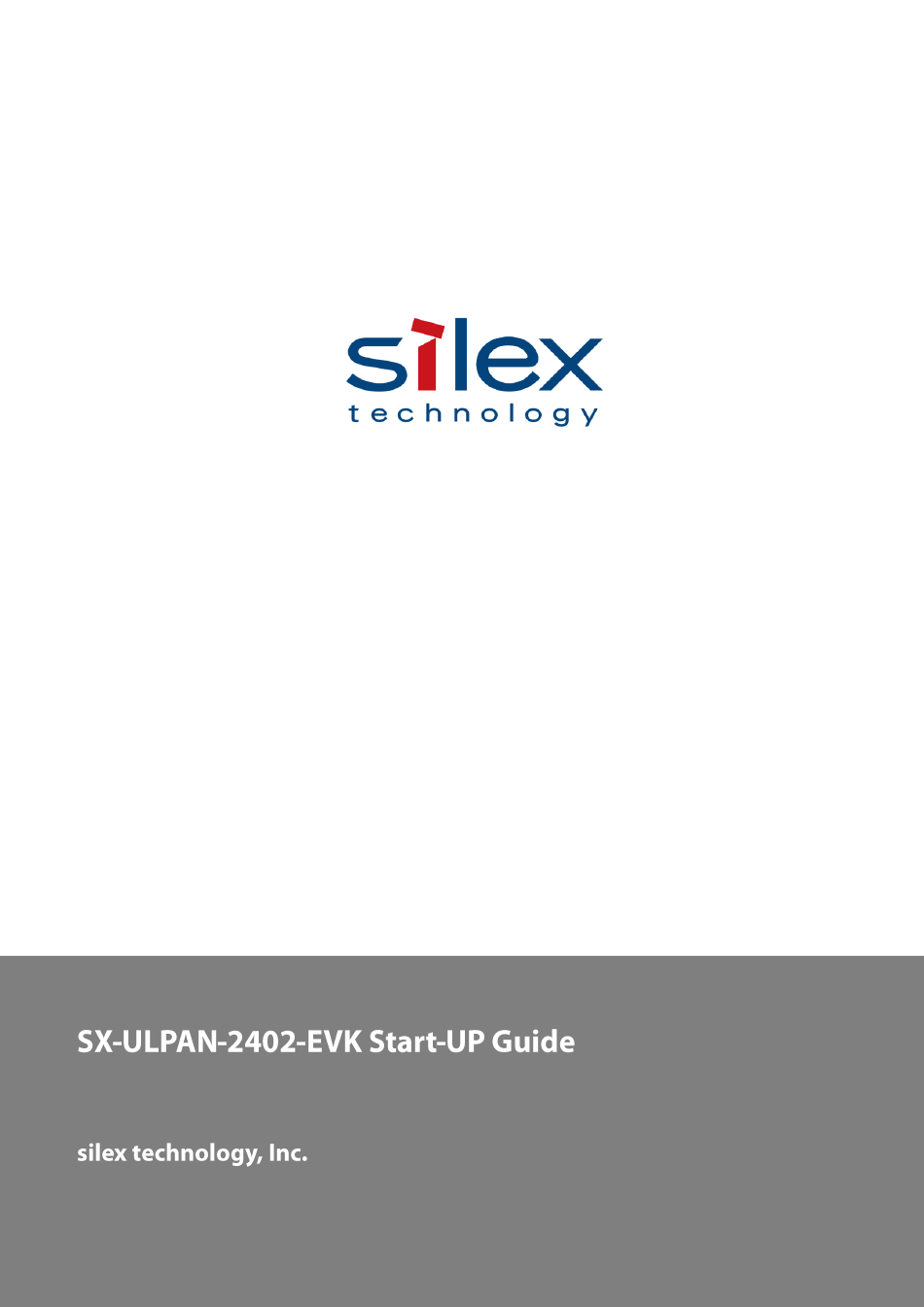

  • Page 1 2016/03/03...
  • Page 2 Index Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 3 This is the startup guide for SX-ULPAN-2402-EVK, an evaluation board for the SX-ULPAN-2401 wireless module. Note: Specifications are subject to change Introduction The SX-ULPAN is an ultra-compact and low power wireless LAN module with Qualcomm Atheros QCA4000 series radio. The module provides not only drivers...
  • Page 4 -40 - +105℃, 10-95 ％RH *No condensation Security: Open / WPA-PSK / WPA2-PSK *Enterprise: Not supported as of now WPS2.0: STA：Enrollee Throughput: 340Kbps (460800 baud) Network offload IPv4・TCP・UDP DHCP Client ICMP Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 5 SX-ULPAN-2402-EVK Accessories The package includes a PCBA for NXP Tower System and a PCB antenna. Figure 1: SX-ULPAN-2402-EVK Figure 2: Option Antenna * Documentation can be downloaded from our website below. URL: Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 6  LAN cable  RS-232C cross cable   Windows 7 is recommended .   Access Point IEEE802.11n supported AP is recommended.  Software Terminal software  TeraTerm, etc.  Copyright © 2016 silex technology, Inc. All Rights Reserved.

  • Page 7: Evaluation Board

    Evaluation Board The EVK board and block diagram are shown below. Figure 3: SX-ULPAN-2402-EVK Figure 4:SX-ULPAN Schematic Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 8 Bit 5-8: Bootstrap：QCA4004 bootstrap option HM[0:1] SW3: Configuration for UART signal multiplex/de-multiplex Bit 1-3: CN9 DSUB9 connection signal ：TXD/RXD connection Bit 4-6: CN9 DSUB9 connection signal：RTS/CTS connection Bit 7-8: ULPAN UART0- TWR-ELEV UART0/1 selection Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 9 Not to be used. CN09: DSUB9 Plug Use for console. CN10: USB Mini-B Connect miniUSB for power supply. CN11: Test Point for Power Supply Keep pins 5-6, 7-8 & 9-10 short-circuited. Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 10 Initialize and connect the SX-ULPAN-EVK. Set Switch and Jumper See the below red squares for SW settings. Refer to the SX-ULPAN-EVK specifications for details. Figure 5： DIP Switch and Jumper pin Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 11 Attach the cable Connect the USB cable and the Console to the SX-ULPAN-2402-EVK ① Connect the SX-ULPAN-EVK and the PC with an RS-232C cross cable for console. Serial communication setting: 115200N81 Install the terminal software (e.g. Teraterm) into the PC.
  • Page 12 This is how to prepare software. silex  Download binary files and documents from silex website. URL: Terminal software  Install the terminal software that can be connected to a serial port. URL: https://osdn.jp/projects/ttssh2/ Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 13 ② Open the COM port of mbed Serial Port by using the terminal software. Set the serial communication as 115200N81. As the SX-ULPAN-2402-EVK does not have a local echo function, characters entered will not be displayed on the terminal. Enabling local echo of the terminal software is recommended.
  • Page 14 *Note: For the US, changing the domain code is not allowed by the Wireless Radio Act D) Connect to an Access Point Boot as a STA. The following example is connecting to the WPA2-AES AP in SSID SX-ULPAN-SSID. Copyright © 2016 silex technology, Inc. All Rights Reserved.
  • Page 15 PC (192.168.0.10) for data transmission. With a response returned, the wireless LAN is successfully connected. F) Data Transfer ＜TCP server＞ Start the SX-ULPAN-2402-EVK as a TCP server to send/receive data to/from the TCP client. Boot the TCP server with Port 50000 shell>ATNSOCK=TCP TCP handle: 0x442330 shell>ATNSTCP=50000...
  • Page 16 (ATBSIZE=), the data will be sent. Send data from the PC for data transmission ABCDEFGHIJKLMN The data will be displayed on the SX-ULPAN-2402-EVK console. To execute commands with TCP communication on, switch to online command mode with the escape command.
  • Page 17 To return to data mode from online command mode, execute ATO command. shell>ATO= Entering data mode Copyright © 2016 silex technology, Inc. All Rights Reserved.
