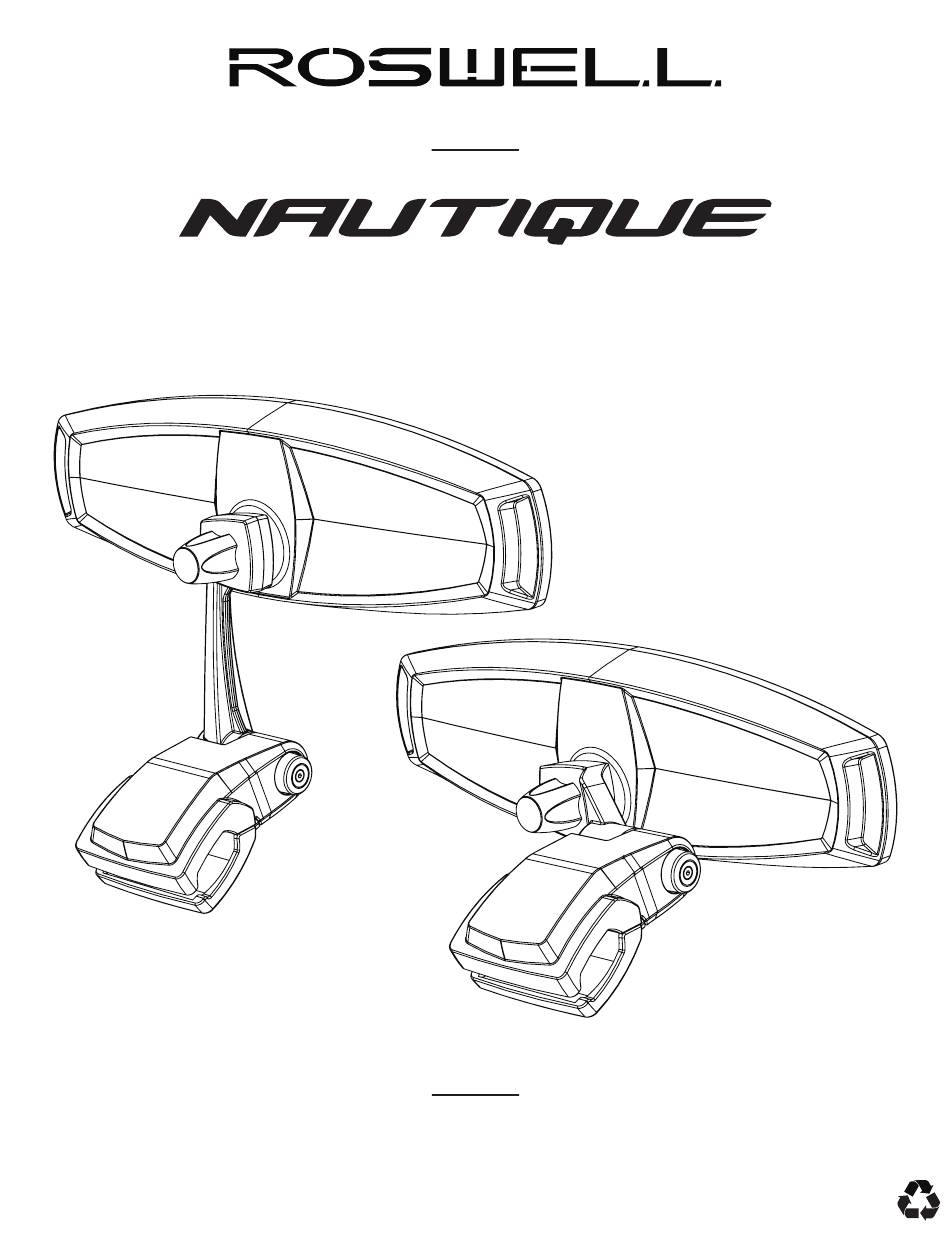

- Page 1 w w w.roswellmar ine.com Deluxe Mirror Installation & Usage Instructions Part #s: C917-150002 or C917-150001 & C917-180300 Information: info@roswellmarine.com If you have any questions please call : 1-321-638-1331 Rev.16-Nov-17...
- Page 2 Nautique Deluxe Mirror Assembly and Installation Instructions www.roswellmarine.com PARTS HARDWARE TOOLS REQUIRED Mirror C917-150001 Exterior Clamp C917-180300 Rubber Disk Exterior Clamp 3/16” C917-140002S Interior Clamp Mirror Clamp Hand Knob Allen Key Insert Note: Your deluxe mirror assembly will include C917-114002S or C917-180300. Place each half of the mirror clamp insert set into the exterior clamp and interior clamp.
- Page 3 Nautique Deluxe Mirror Assembly and Installation Instructions www.roswellmarine.com Thread one of the bolts provided with your mirror arm Apply RED Loctite to the other two bolts provided and into the center hole through the two clamps sections, thread the bolts in the remaining two holes. Remove just enough to hold them in place.
- Page 4 Nautique Deluxe Mirror Assembly and Installation Instructions www.roswellmarine.com To move the mirror out of the way for trailering or to have it Second, rotate the mirror to one of the four locking positions. out of the driver’s field of view: First, grab the mirror extension Third, lock the mirror by releasing the button, the mirror exten- with your right hand and push the black button on the left sion will move back into the lock position.
