VidaBox VB_VPWR_24V_PSW_4P Installation Manual

24v vidapower 4-port 90w power-over-cat5/ethernet switch, optimized for 24v vidacharger power-over-cat5 to usb power adapters with 4 x rj45 outputs
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

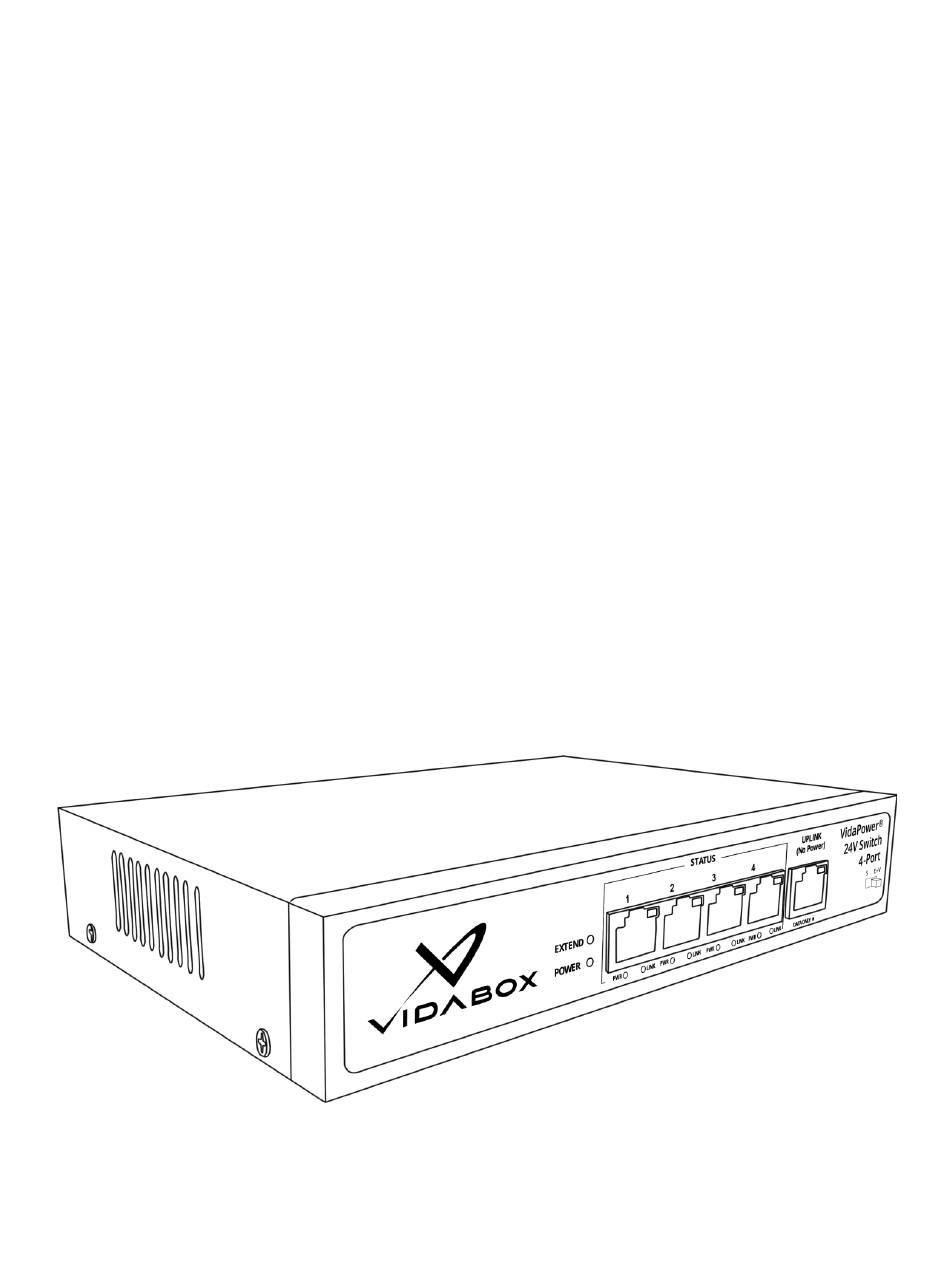

INSTALLATION GUIDE

24V VidaPower 4-Port 90W
Power-over-CAT5 / Ethernet Switch
VB_VPWR_24V_PSW_4P
Optimized for 24V VidaCharger Power-over-CAT5 to USB Power Adapters
With (4) x RJ45 Outputs
DOES NOT OUTPUT 48V · NOT COMPATIBLE WITH STANDARD PoE / 48V
NOT COMPATIBLE W. REDPARK / LAVA ADAPTERS
NOT IEEE802.3at (30W) NOR IEEE802.3af (15.4W) compliant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VB_VPWR_24V_PSW_4P and is the answer not in the manual?

Questions and answers

Related Manuals for VidaBox VB_VPWR_24V_PSW_4P

Summary of Contents for VidaBox VB_VPWR_24V_PSW_4P

  • Page 1: Installation Guide

    INSTALLATION GUIDE 24V VidaPower 4-Port 90W Power-over-CAT5 / Ethernet Switch VB_VPWR_24V_PSW_4P Optimized for 24V VidaCharger Power-over-CAT5 to USB Power Adapters With (4) x RJ45 Outputs DOES NOT OUTPUT 48V · NOT COMPATIBLE WITH STANDARD PoE / 48V NOT COMPATIBLE W. REDPARK / LAVA ADAPTERS...

  • Page 2: Installation Instructions

    Installation Instructions 24V VidaPower 4-Port 90W Power-over-CAT5 / Ethernet Switch Optimized for 24V VidaCharger Power-over-CAT5 to USB Power Adapters Important Notes: Do not use non-VidaPower or non-VidaCharger products with this VidaPower Switch. For optimal performance, • only VidaPower or VidaCharger branded products, should be used in concert. •...
  • Page 3 Installation Steps 1. Connect the power cable‘s trapezoidal plug into the rear of the 24V Switch 2. Connect the power cable into a standard wall outlet. The unit’s Power LED should now light up, confirming power. 3. Finally, connect your CAT5/5e/6 cables’ RJ45 connectors into one of the (4) respective RJ45 ports. Be sure NOT to plug it into the uplink port, which does NOT output power.
  • Page 4 LED Indicator Chart Indicator Status Condition Power Light Switch is powered (Default / NORMAL) Light Off Switch is powered off / not plugged in / no power Data* Light Ethernet connection is established Light Off Ethernet connection is not established (Default / NORMAL) Flashing Ethernet data transmission * - NOTE: The Data LED would NOT be expected to be lit NOR flashing in our VidaPower-to-...
