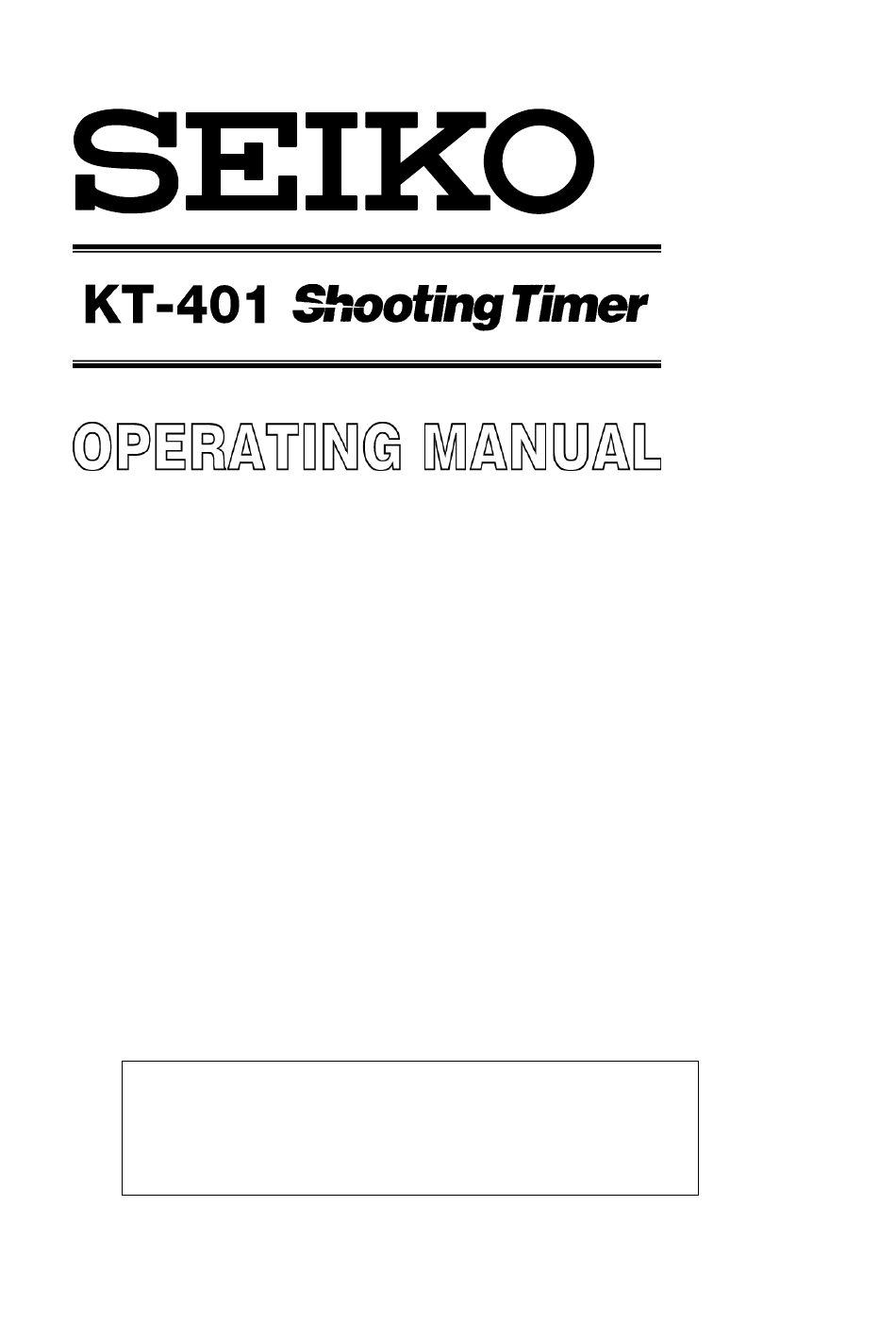

- Page 1 紙 Thank you for purchasing SEIKO SHOOTING TIMER KT-401. Before using your SEIKO SHOOTING TIMER, please read this manual carefully for its proper use and care. Keep this manual handy for ready reference.
- Page 2 (4) SEIKO shall not be liable for any failure of this product or direct or indirect damages resulting from such failure if such failure is caused due to abuse, misuse, failure to observe instructions in this manual and neglect of other reasonable care, and servicing, changes, modifications or alterations performed by other than SEIKO or a servicing contractor authorized by SEIKO.
-
Page 3: Table Of Contents
Table of Contents 1. SAFETY PRECAUTIONS......................... 1 2. OVERVIEW ............................... 3 3. FEATURES..............................3 4. NEMES AND FUNCTIONS OF PARTS ..........………………………………3 5. BEFORE USING YOUR SHOOTING TIMER ..................5 6. METHOD OF OPERATION........................6 7. PRODUCT COMPOSITION AND SPECIFICATIONS................. 8... -
Page 4: Safety Precautions
Product. In case this has occurred, turn off the power switch immediately, and call your nearby No foreign matter SEIKO dealer or agent for inspection. If the Product is used again without being reconditioned, an electric shock or fire may result. - Page 5 CAUTION Do not leave the Product under direct sunlight for a long time. The temperature inside it may rise excessively to damage the circuit and other parts. Before connecting the power cord and other cables to the Product, be sure to check that the power switch is turned off.
-
Page 6: Overview
・The preset 24 and 14 seconds can be adjusted as desired, and the time you have set can be retained in memory. ・ KT-401 is a product recommended by the Japan Basketball Association (JBA) for the use in the games of basketball. - Page 7 OPERATION BOARD/OPERATION PANEL LED lamp to light up <Top> LED lamp to light up when buzzer is engaged in 1/10 sec. display Button to Button to change over between engage/disengage Buzzer button 1 and 1/10 sec. displays buzzer Button to change Power switch over between 24 and 30 sec.
-
Page 8: Before Using Your Shooting Timer
5. BEFORE USING YOUR SHOOTING TIMER 1. Securely connect the adaptor with power cable included with KT-401 to the power connector of the operation board, and insert the power plug of the power cable properly into the outlet. 2. Securely insert the plugs of the dedicated cables into the connectors on the rears of the display board and operation board, and tighten the connector nuts. -
Page 9: Method Of Operation
6 METHOD OF OPERATION ● Operation Procedure: Normal Use Operation Action/Remarks Display monitor Button operation To start game Countdown is started. Timer starts counting * Start/Stop button flashes in red. down set time. Timer is stopped. A shot was made. * Reset &Start button Keep button lights up in green. - Page 10 ■ To change countdown time to other than 24 or 14 seconds Operation Action/Remarks Display monitor Button operation * Start/Stop button lights up in red. While timer is stopped * Reset &Start button lights up in green. To change countdown Ex.) To change from time from 24 to 23 “24”...
-
Page 11: Product Composition And Specifications
7. PRODUCT COMPOSITION AND SPECIFICATIONS 1. Product Composition ① 24-sec. Display Board KT-401DP (attached with JBA recommendation sticker)...2 units ② 24-sec. Display Operation Board KT-401OP (attached with JBA recommendation sticker) ............1 unit ③ Adaptor with Power Cable (5 m) KT-ADP01 ..............1 piece ④... - Page 12 To qualify for the services under the guarantee, you must present your SEIKO SHOOTING TIMER KT-401 to the retailer from whom it was purchased, or a service facility designated by us. Packaging and transportation charges are to be paid by the owner of the Product.
