INTERSPIRO Spiromatic test User Manual

Hide thumbs

Advertisement

Quick Links

ENGLISH
Spiromatic test
User Manual
99056C01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Spiromatic test and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INTERSPIRO Spiromatic test

Summary of Contents for INTERSPIRO Spiromatic test

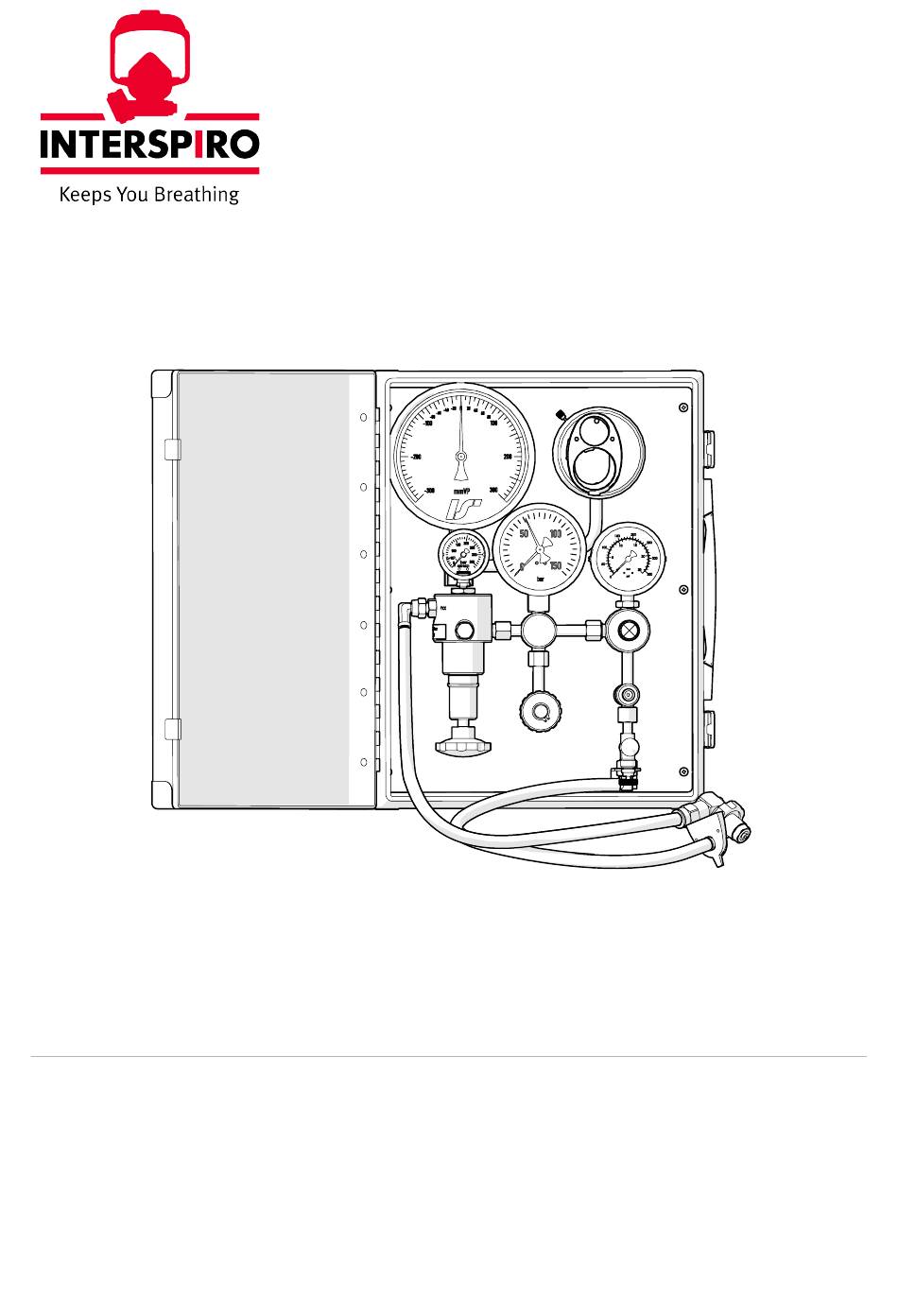

  • Page 1 ENGLISH Spiromatic test User Manual 99056C01...
  • Page 2 Interspiro®, Oxydive® and Divator® are registered trademarks belonging to Interspiro. This publication may not be copied, photocopied, reproduced, translated, or converted to any electronic or machinereadable form in whole or in part, without prior written approval from...

  • Page 3: Table Of Contents

    Spiromatic test Table of Contents Important information ................. 5 Product description ................6 Maintenance ................... 10 Before use ..................11 After use ..................16 Depressurize the test equipment ..........16 Storage ................... 17...

  • Page 5: Important Information

    Spiromatic test Important information Only holder of a valid Interspiro Service Certificate for the equipment in question may carry out service and repairs on Interspiro breathing equipment. Unauthorized service may result in malfunction and users relying there on could sustain severe respiratory injury or death.

  • Page 6: Product Description

    Spiromatic test Product description Product overwiew 8 19 21 22 Vacuum gauge ± 300 mmwc for reading the specific performance of the breathing valve and the flow performance of the complete breathing apparatus. Adjustment screw for adjusting the pressure gauge to zero.
  • Page 7 The Spiromatic test is used to do performance tests of Interspiro breathing apparatuses. The Spiromatic test is mounted on a mounting plate in an aluminium transport box. The mounting plate with the test equipment can be removed and secured to the wall of the workspace if desired.

  • Page 8: Technical Data

    Spiromatic test Important! All components of the test equipment must be secured and protected from impact during transportation. The Spiromatic test is marked with part number, serial number and calibration date. Technical data Material Aluminium, anodized, brass chromated, plastic, stainless...
  • Page 9 Spiromatic test = HP = MP = LP HP = High pressure area MP = Medium pressure area LP = Low pressure area...

  • Page 10: Maintenance

    Spiromatic test Maintenance If the Spiromatic test needs to be repaired, it has to be sent to Interspiro for reparation. The Spiromatic test must be sent to Interspiro for service and calibration every year. If the Spiromatic test has not been calibrated by Interspiro for over a year, it must not be used.

  • Page 11: Before Use

    Spiromatic test Before use The Spiromatic test must only be used with air from a cylinder or a distributed high pressure network. Only use breathing air according to EN 12021. Preparation Before doing any tests with the Spiromatic test it has to be prepared and it´s fuctions tested.
  • Page 12 Spiromatic test Make sure that the protective plug is mounted in the connecting piece. Turn the shutting-off screw clockwise until it is closed. This will stop the flow to the hose nipple. Make sure that the needle valve is closed. If needed, turn clockwise until it...
  • Page 13 Turn the regulating screw in (clockwise) until the primary pressure gauge shows 80 bar. NOTE: If the pressure rises after the adjustment, open the needle valve and close the air supply. If this happens, the Spiromatic test is defect and must be repaired by Interspiro.
  • Page 14 10. Close the air supply and make sure that the air supply pressure gauge does not show any decrease in pressure during 60 seconds. If the pressure drops, the Spiromatic test is defect and must be repaired by Interspiro. 11. Open the needle valve to vent the system.
  • Page 15 Spiromatic test 13. Turn out the regulating screw until it feels loose (counterclockwise). Stop before it falls out. 14. Follow the test instructions for testing each apparatus.

  • Page 16: After Use

    Spiromatic test After use Depressurize the test equipment Close the air supply. Turn out the regulating screw until it feels loose (counterclockwise). Stop before it falls out. Press in the selector valve until the system is depressurized.

  • Page 17: Storage

    Spiromatic test Storage Store in a cool, dry and dust-free environment. Protect against direct sunlight, UV radiation and direct heat. Make sure the system is depressurized. Assemble the protective plug.
