POWERSOURCEPURE

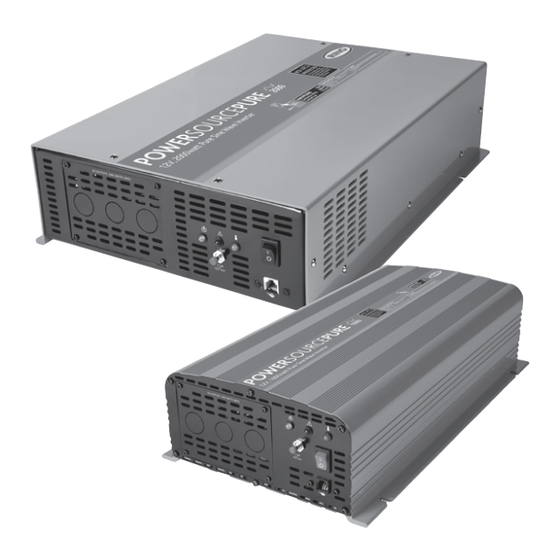

Pure Sine Wave Inverter
12V: RINVP600/RINVP1000/RINVP2000/RINVP3000
24V: RINVP1024/RINVP2024
8pp A5 (PSW) UK Full Handbook v4.indd 1
INSTRUCTIONS
Retain these instructions for future reference
6v
12v
12v
www.ringautomotive.co.uk
RCD Models
12V: RINVPR1000/RINVPR2000
24V: RINVPR1024/RINVPR2024
24v
07/04/2014 09:48
