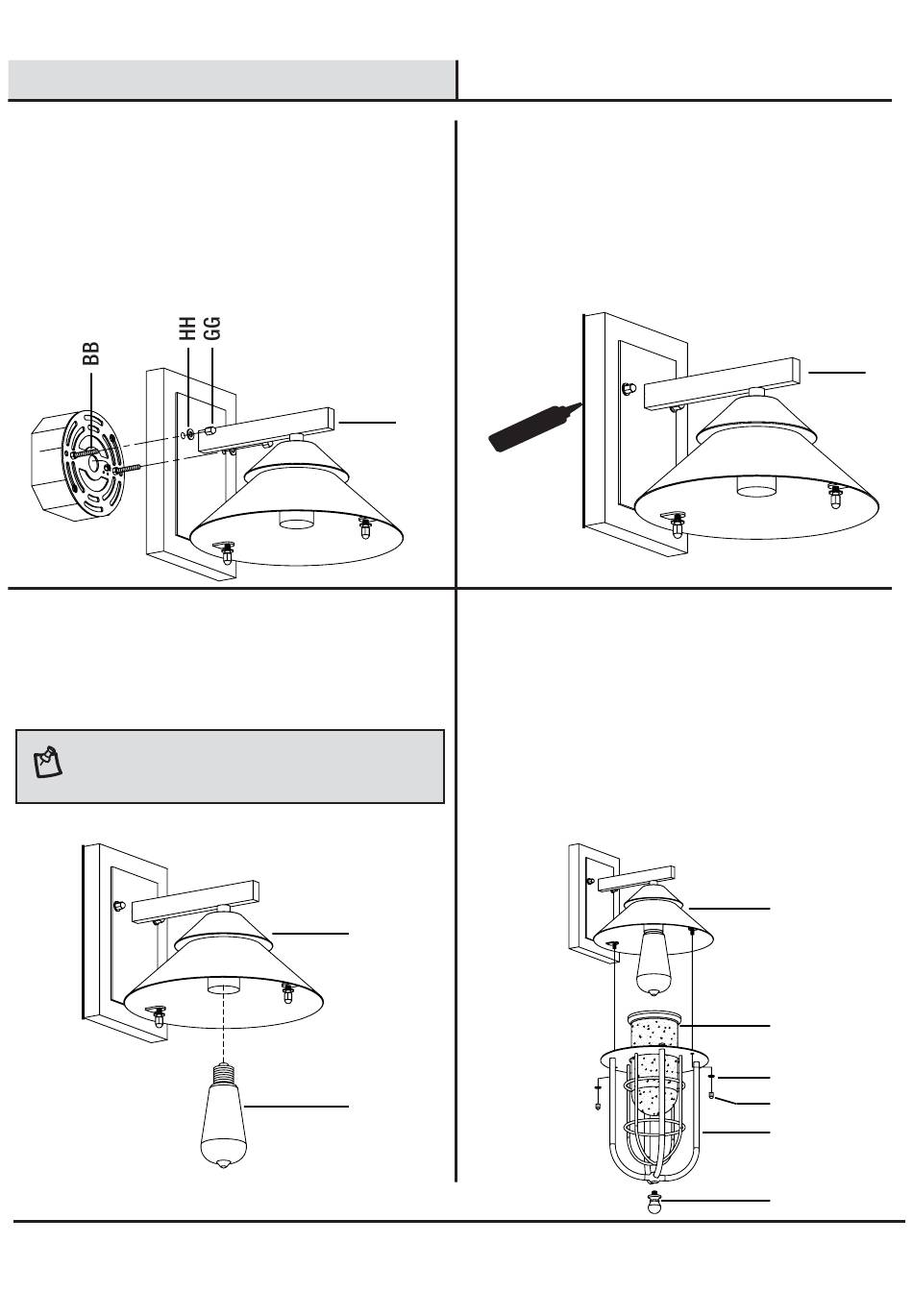

Installation (continued)
4
Installing the fi xture body to the
outlet box
□
Place the fi xture body (A) over the outlet box, and ensure the
heads of the support screws (long) (BB) come through the
holes of back plate of the fi xture body (A).
□
Place the rubber washers (HH) over the support screws (long)
(BB), and tighten the cap nuts (GG) onto the support screws
(long) (BB) until the fi xture body (A) is held fi rmly against the
wall.
6
Installing the light bulb
□
Install the light bulb (B) (included) into the socket of the
fi xture body (A). Use one 4-watt medium base (E26) LED
vintage Edison bulb.
NOTE: You can also use one 60W maximum medium
base (E26) type "ST64" or A bulb (sold separately). Do not
exceed the recommended wattage.
5
Applying the caulk
□
Use weather resistant caulk (sold separately) to seal around
the top and side perimeter of the back plate of the fi xture
body (A). Do not caulk the bottom of the back plate to allow
for condensation evaporation.
A
7
Assembling the glass shade and frame
□
Screw the fi nial (G) into the bottom of the frame (F) as shown.
□
Place the glass shade (C) into the frame (F) as shown.
□
Unscrew the cap nuts (E) from the fi xture body (A), and remove
the rubber washers (D).
□
Attach the frame (F) to the fi xture body (A), ensure the threaded
nipples of the fi xture body (A) extend through the holes of the
frame (F) and secure with the rubber washers (D) and the cap
nuts (E).
A
B
6
A
A
C
D
E
F
G
