Part Number:
1990200, 1990227, 1990230, 1990232, 1990243
WARNING
: Royal Enfield genuine accessories are designed to fit only the specific Royal Enfield motorcycle(s) that
are specified above. They should not be fitted to any other type of motorcycle. Pay particular attention to the
warnings and cautions contained in this instruction, failure to do so may result in an incorrect installation of the accessory
which could result in an unsafe riding condition and possible accident. If in any doubt always seek the help from your
authorised Royal Enfield dealer.
WARNING
: Before starting any accessory kit installation ensure the motorcycle is supported in a stable condition.
Failure to support the motorcycle correctly could lead to motorcycle damage or personal injury.
WARNING
: All fixings must be tightened to the torque values specified in this instruction. Failure to tighten
fixings to the correct torque could result in an unsafe riding condition and possible accident.
CAUTION
: Care should be taken when fitting any accessory kit. Incorrect handling kit components or the use of incorrect
tools could lead to component or motorcycle damage.
NOTE
: The content of this instruction is subject to change at any time without notice or liability. Royal Enfield reserves the right to
revise the information presented at any time.
Item
Description
1
Pannier, right hand
2
Pannier, left hand
3
Pannier rail, right hand
4
Pannier rail, left hand
5
Connector bar
Instruction No. KXL00026 - Issue B

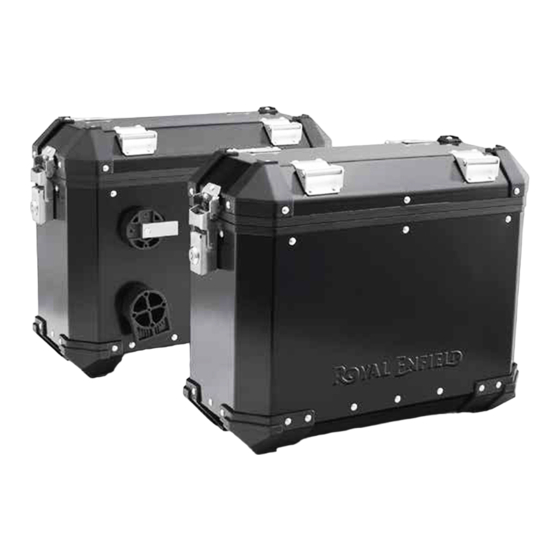

Aluminium Pannier Kit
Models :
Himalayan
Qty
Item
Description
6
Extension harness (red connectors)
1
7
Extension harness (green connectors)
1
8
Fixing, M8 x 45mm
1
9
Fixing, M8 x 60mm
1
10
Fixing, M6x15mm
1
11
Washer, M8
1
Qty
1
1
2
4
4
4
© 2018 Royal Enfield
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Royal Enfield Himalayan Series
Summary of Contents for Royal Enfield Himalayan Series
- Page 1 NOTE : The content of this instruction is subject to change at any time without notice or liability. Royal Enfield reserves the right to revise the information presented at any time. Item...
- Page 2 (RED) (2) from the main wiring harness (3). Remove the left hand and right hand rear indicators. Retain the indicators (1), fixings (2) and nuts (3) for reuse. © 2018 Royal Enfield Instruction No. KXL00026 - Issue B...
- Page 3 Do not fully tighten any pannier rail fixings at this stage. Repeat steps 7 to 9 for the left hand pannier rail. Loosen the grab rail (1) rear fixings (2) . Do not remove the fixings. © 2018 Royal Enfield Instruction No. KXL00026 - Issue B...
- Page 4 (2) pannier rails are centralised on the motorcycle, as shown. Tighten the pannier rail front fixings (1) to 22 Nm. Tighten the rear connector bar fixings (1) to 10 Nm. © 2018 Royal Enfield Instruction No. KXL00026 - Issue B...
- Page 5 : The extension harness with the GREEN connectors must be connected to the main harness GREEN connector and the extension harness with the RED connectors must be connected to the main harness RED connector. © 2018 Royal Enfield Instruction No. KXL00026 - Issue B...
- Page 6 Tighten the front fixings (2 ) to 10 Nm. Reconnect the battery, positive lead first and check that the indicators and rear numberplate light function correctly. Refit the rider and pillion seats, as described in the Owner’s Handbook. © 2018 Royal Enfield Instruction No. KXL00026 - Issue B...
- Page 7 From inside the pannier, tighten the upper mount fixings (4) to secure the pannier to the pannier rail. Repeat steps 1 to 4 for the right hand pannier. © 2018 Royal Enfield Instruction No. KXL00026 - Issue B...
- Page 8 : The fitment of panniers to the motorcycle will affect the stability and handling of the motorcycle. Failure to observe the changes in motorcycle stability and handling characteristics could result in an accident. © 2018 Royal Enfield Instruction No. KXL00026 - Issue B...
