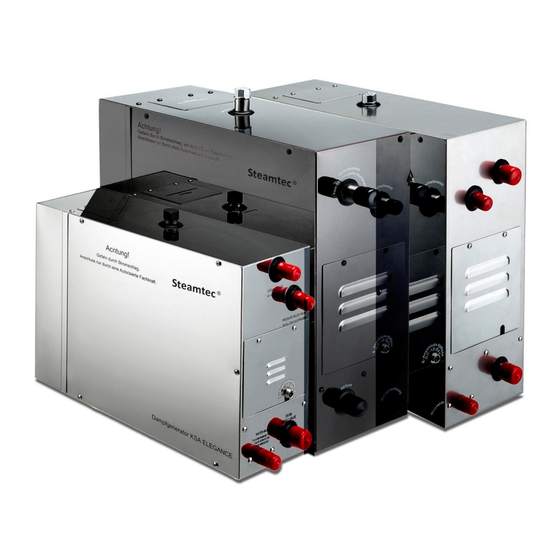

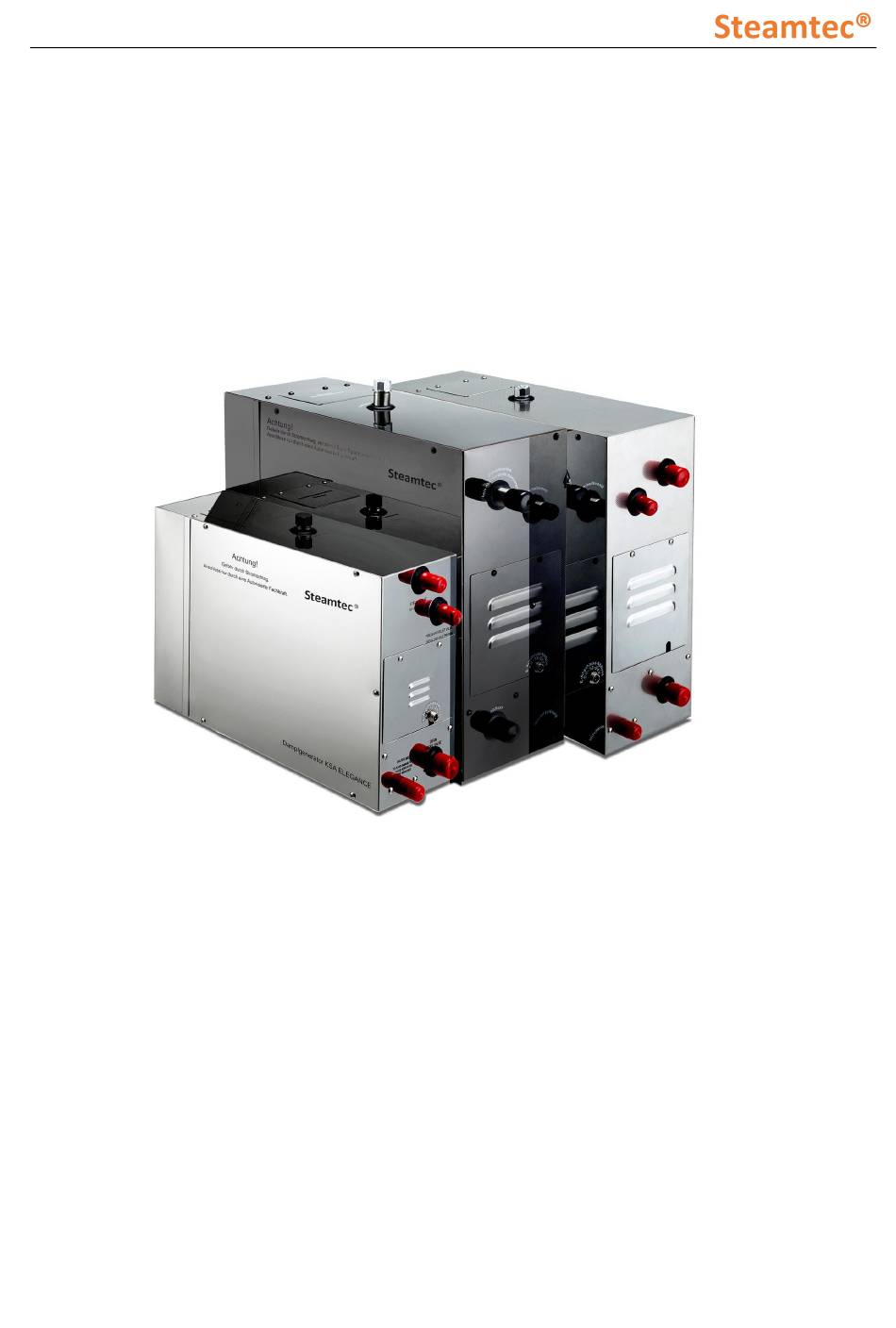

Steamtec AIO
Steam Generator Manual
DO NOT use locking pliers to over tight the
DRAIN PIPE connection
Please read the manual carefully before installation
and keep the manual for further reference
________________________________________________________________________________
1
TOLO SAUNA
info@tolosauna.com
www.tolosauna.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Steamtec TOLO-30
Summary of Contents for Steamtec TOLO-30
- Page 1 Steamtec AIO Steam Generator Manual DO NOT use locking pliers to over tight the DRAIN PIPE connection Please read the manual carefully before installation and keep the manual for further reference ________________________________________________________________________________ TOLO SAUNA info@tolosauna.com www.tolosauna.com...
- Page 2 1. Configuration List Photos Item name Quantity Steam generator in stainless steel housing Controller+housing box, waterproof touch screen 1set Central function box Central function box power cord 3/4" Full-bore straight auto drain valve Control cable, length 5 m (central function box -> controller) Temp sensor with box, length 5 m (central function box ->...
- Page 3 2.1. EU Type Models, parameters and dimension (Only apply to European style voltage and phase) Room Dimension Model Power Phase Heating elements Voltage / Current Power wire Breaker volume (L*W*H) N*KW N*mm2 TOLO-30 2*1.5 215-240/13.6 3*2.5 2～3 TOLO-40 2*2.0 215-240/18.2 3*2.5 3～5 215-240/20.5 3*2.5 3.5～...
- Page 4 ( Below Only apply to American style voltage and phase) Heating Power Room Power Voltage(V)/ Dimension Model Phase elements wire volume (kW) Currency(A) (L*W*H) (N*kW) (N*AWG) (mm) TOLO-30 1(2L) 230/13.1 2*1.5 2*10 2～3 TOLO-40 1(2L) 230/17.4 2*2.0 2*10 3～5 TOLO-45 1(2L) 230/19.6 3*1.5 2*10 3.5～5.5...
- Page 5 2.3. Controller parameters and dimension Controller Controlling time Temperature Temperature Dimension model range (minutes) showing range controlling range (mm) 1~60 or long-term 6～60℃ 35～60°C 103*103*4.5 (CH) (43℉～140℉) (95℉～140℉) Table 3 3. Installation Install in the roof Suitable for installation Install in the closet Install under the washing basin...
- Page 6 3kw ~ 13.5kw ① Service hole 1/2’’ ② Steam outlet 3kw~6kw: 1/2’’ 7kw~13.5kw:3/4’’ ③ Safety valve 1/2’’ ④ Water inlet 1/2’’ ⑤ Drain outlet 3/4’’ ⑥ Power supply for drain valve 3KW- 13.5KW AIO Pipe Connection ② 15kw ~ 24kw ①...
