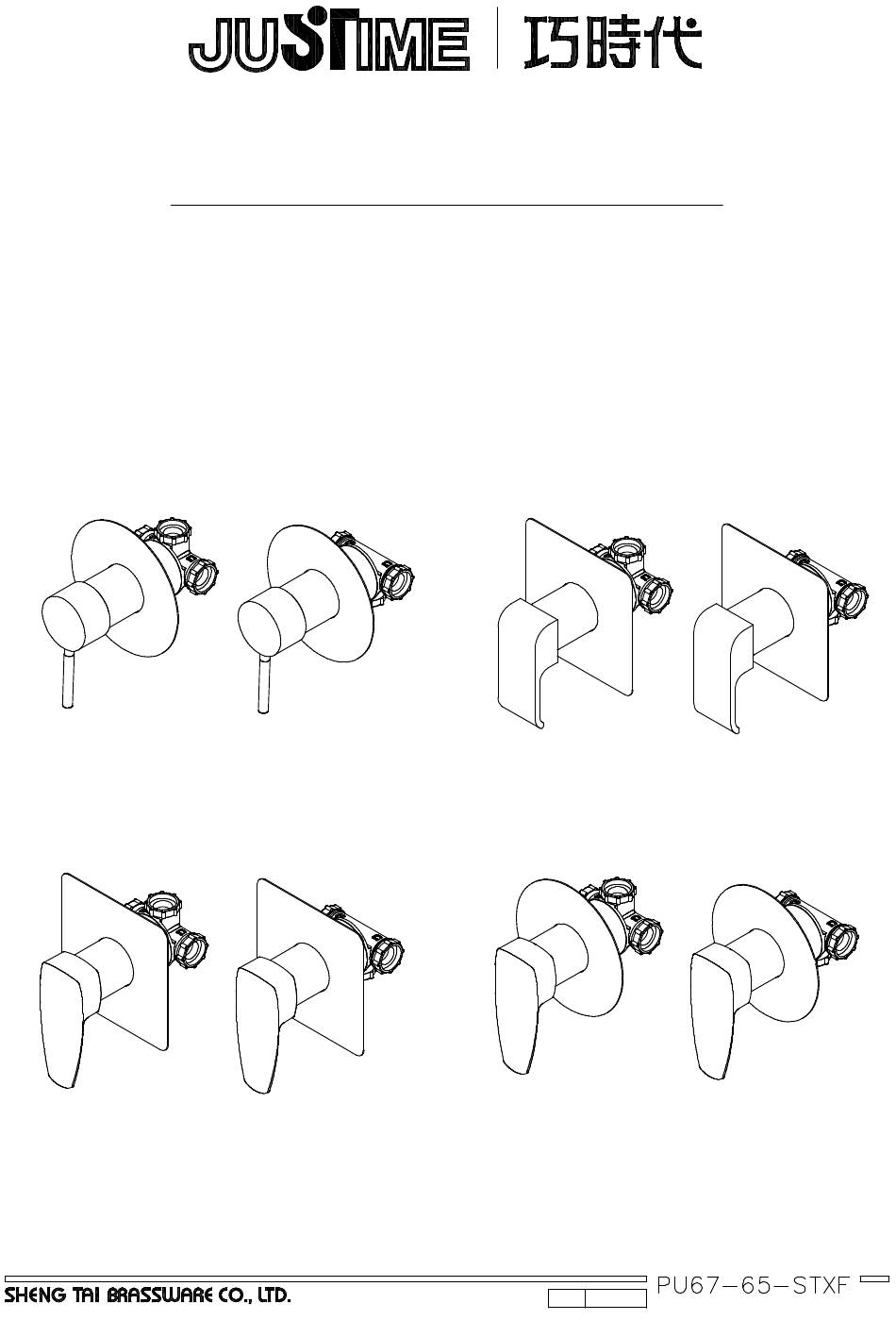

- Page 1 INSTALLATION INSTRUCTIONS Single-Handle Concealed Valve Applicable Product Number: 6765-XF-80CP 6904-XF-80CP 6765-XV-80CP 6904-XV-80CP 6779-XF-80CP 7779-XF-80CP 6779-XV-80CP 7779-XV-80CP www.justime.com 051015 MADE IN TAIWAN...
-
Page 2: Care And Cleaning
CARE & CLEANING CAUTION : This product might be damaged by improper installation, acid cleaning solution, misuse, improper care and cleaning. 1. Always follow the INSTALLATION INSTRUCTIONS provided and use extreme care while installing. 2. Do not use acid cleaning solution or abrasive cleaner (Ex: Hydrochloric acid or toothpaste);... - Page 3 FIXING CONTENTS A. Valve Body X 1 B. Handle X 1 (with sleeve) C. Plate X 1 D. Hex Key X 1 E. Set Screw × 1...
-
Page 4: Installation Note
INSTALLATION NOTE ! CAUTION : Please read the following point carefully before Installation. 1. Keep the Valve Body faces horizontal and parallel to the wall that will be finished. 2. Connect hot and cold supply pipes to the Valve Body , and keep the distance from center of Valve Bady to Finished Wall between 2"(5.1cm) minimum and 3"(7.6cm) maximum. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Cover X 3 A. Valve Body outlet Sleeve hot water supply cold water supply Upward Outlet Downward Outlet * Make sure the HC sign is upward outlet before installation. * Remove the Covers before installation. * Install outlet, hot and cold water supply pipes as figure shows. - Page 6 A. Valve Body Sleeve * Use Sleeves to protect the cartridge before installation, and Sleeves could be removed only after complete the finished wall.
- Page 7 Outlet 1.5"(3.8cm)MIN 2.5"(6.4cm)MAX 2"(5.1cm)MIN 3"(7.6cm)MAX Sleeve Finished Wall Finished Wall * Connect hot and cold supply pipes to the Valve Body , and keep the distance between 2” (5.1cm) minimum and 3” (7.6cm) maximum from the Finished Wall to the center of Valve Body ; or keep the distance be 1.5 “...
- Page 8 1. Remove the release liner. 2.Put Plate on. Bonnet C. Plate 3.Seal the edge with Silicone. Silicone...
- Page 9 E. Set Screw D. Hex Key * Assemble the Handle to Spindle of Cartridge, and then tighten the Set Screw with Hex Key.
- Page 10 * Example...
- Page 11 * Example...
- Page 12 Purchase place Address Purchase Date Purchase Price w w w . j u s t i m e . c o m No.99 Sec.3 Chang Tsao Rd. Ho Me, Chang Hua, Taiwan TEL: +886-4-7629971~4 FAX: +886-4-7526980 E-mail: shengtai@ms10.hinet.net Facebook: www.facebook.com/JUSTIME...
