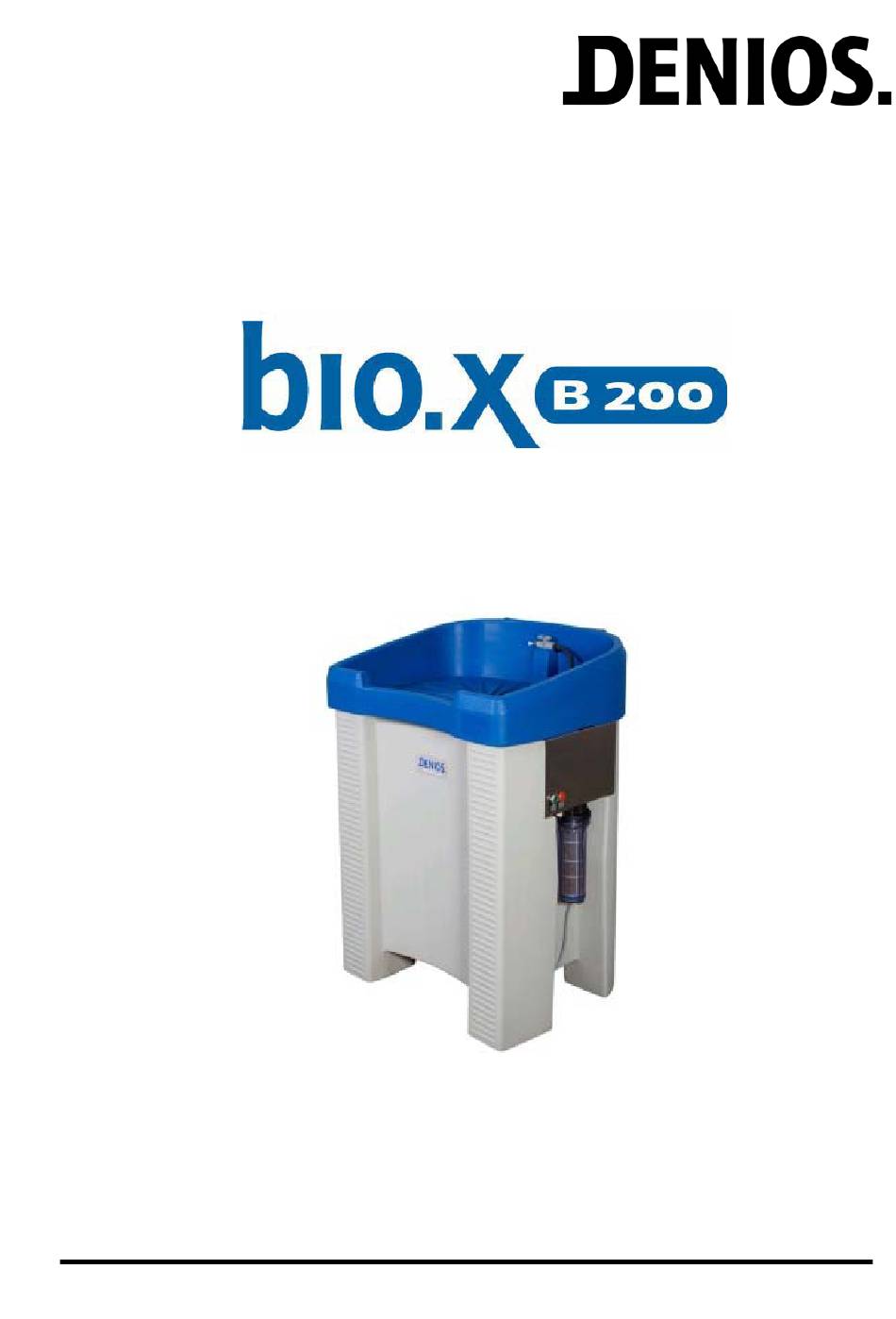

- Page 1 Cleaning Table USERS MANUAL 10/2008 175733_BA_EN_004...
-
Page 2: Table Of Contents
Without approval from the manufacturer no changes, extensions or modifications may be made to the product. For changes made without approval from the manufacturer no liability is assumed and the guarantee expires. National regulations and safety regulations have to be adhered to. bio.x B200 Page 2 of 12 10/2008 172236, 172292, 176074... -
Page 3: Safety Instructions
The equipment must be set up on a suitable stable, level surface. Detergents which contain highly flammable substances must not be used. Use only detergents ap- proved by DENIOS for this unit. 3. Technical data Dimensions 890 x 750 x 1155 mm... -
Page 4: Product Description
Non-return valve 174959 Coarse filter 135255 Filter set (optional) 172237 Cleaning unit set 175370 Ball valve 135279 Filter insert 150043 (central support bracket and nylon filter) Wash brush 135277 O-ring 150609 bio.x B200 Page 4 of 12 10/2008 172236, 172292, 176074... -
Page 5: Intended Use
If such damage is found, do not connect the unit to the mains. Report damage immediately to the carrier who delivered the unit and to DENIOS AG at the service number indicated above. The original packaging should be kept. -
Page 6: Operation
Remove the filter cartridge (9.1) and rinse it thoroughly under running wa- ter, or replace it with a new cartridge. Reinsert the cartridge and screw the casing firmly back into place. Ensure the seal is in the correct position. bio.x B200 Page 6 of 12 10/2008... -
Page 7: Optional Accessories
Wet vacuum cleaner To completely empty the tank, also suitable for sludge 123224 Type SV 6.16 Flexible hose The flexible hose with flat nozzle guarantees simple rinsing of the parts. 135289 bio.x B200 Page 7 of 12 10/2008 172236, 172292, 176074... -
Page 8: Notes Regarding Disposal
Refill with detergent level display flashing Level display flashing, al- though the appliance is filled The ball in the float switch is stuck Lift the float switch (8.4) briefly sufficiently bio.x B200 Page 8 of 12 10/2008 172236, 172292, 176074... - Page 9 Internal view of the upgraded control Safety temperature limiter (red actuating button) Fuse for heater (5x20 mm, 5A T) Fuse for aerator (5x20 mm, 0.1A T) Fuse for pump (5x20 mm, 1A T) bio.x B200 Page 9 of 12 10/2008 172236, 172292, 176074...
-
Page 10: Connection Diagram
11. Connection Diagram bio.x B200 Page 10 of 12 10/2008 172236, 172292, 176074... -
Page 11: Ec Declaration Of Conformity
12. EC Declaration of Conformity EC Declaration of Conformity For the purpose of the EC Machinery Directive 98/37/EC, Annex II A Herewith we, the DENIOS AG, Dehmer Straße 58-66, 32549 Bad Oeynhausen, declare that the design of our product: Cleaning Table bio.x... - Page 12 Dehmer Straße 58-66 32549 Bad Oeynhausen Tel.: +49 (0)5731 7 53 – 0 Fax: +49 (0)5731 7 53 – 197 E-Mail: info@denios.com You`ll find your local partner on our InterNet side www.denios.com bio.x B200 Page 12 of 12 10/2008 172236, 172292, 176074...
