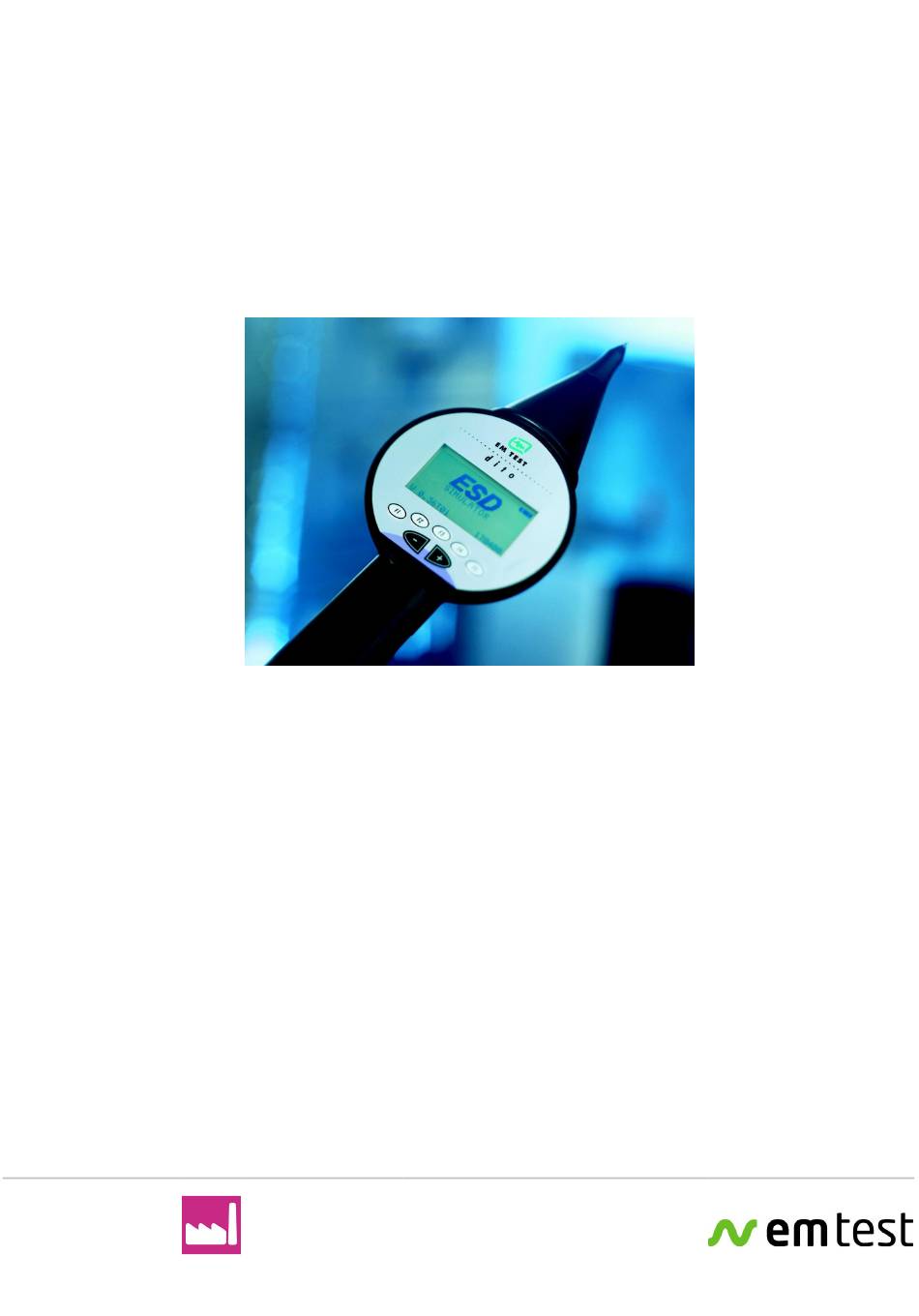

EM TEST dito Short Manual

Hide thumbs Also See for dito:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
the benchmark for emc
Shortform
Introduction
dito & ditoControl
Short manual for dito & ditoControl Software
(Version  1.20 )
Simulation of
Electrostatic
Discharges as per
IEC 61000-4-2,
ISO 10605 and
Related standards
Version: 2.04 / 16.06.2008
Replaces: 2.03 / 14.05.2008
Filename: Shortform introduction ditocontrol v203.DOC
Printdate: 16.06.08

Advertisement

loading
Need help?

Need help?

Do you have a question about the dito and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EM TEST dito

Summary of Contents for EM TEST dito

  • Page 1 Shortform Introduction dito & ditoControl Short manual for dito & ditoControl Software (Version  1.20 ) Simulation of Electrostatic Discharges as per IEC 61000-4-2, ISO 10605 and Related standards Version: 2.04 / 16.06.2008 the benchmark for emc Replaces: 2.03 / 14.05.2008 Filename: Shortform introduction ditocontrol v203.DOC...
  • Page 2 DitoControl ............................8 Technical requirements ........................9 Installation / Uninstall .........................9 Installation............................. 9 Remove ..............................9 Start ditoControl..........................10 Connect the dito simulator via RS232-Interface ................... 11 Registration ............................12 Mode..............................12 5.3.1 Functions in Easy Mode ......................... 12 5.3.2 Functions in Expert Mode in addition to Easy mode................ 13 Download of dito firmware ........................
  • Page 3 Push trigger button (9) for 3s Start-up Display After switching ON, dito starts a self test routine to check the basic function of the unit including the high voltage power supply. The R/C discharge parameters of the module are displayed in the lower line.
  • Page 4 This routine is normally not used for final testing at the preselected test points. Test Routines The dito includes 8 standard routines, which the operator can preprogram on his own by using the „ditoControl“ software. The data can be downloaded via the optical interface.
  • Page 5 Auto Cont Start : After all parameters are selected, the operator can make dito ready for testing by pushing the function key Start . The test itself is controlled by the trigger button [9]. During the test, you can change polarity by...
  • Page 6 DUT. This may happen if the discharge tip is too close to the DUT and the di s - charge occurs during the charging up procedure of dito. Therefore dito shows you the following messages:...
  • Page 7 Test Routines Menu With the user can enter the menu Test Routines. 8 prepr o - grammable test routines can be stored. dito is delivered with 6 standard routines. The test routines can be programmed in the ditoControl sof t - ware which is available as an option.
  • Page 8 Office work.  The operator generates a test report.  After the test is finished dito will be connected again to the computer. All test data stored in dito will be uploaded and are the basis for the test report. ...
  • Page 9 Operation System Win9x / Windows Me / Windows2000 / Windows NT Hard disk space ditoControl, needs approx. 20MB on the hard disc Cable to dito Connecting cable RS232 with optical link Installation / Uninstall Start MS-Windows. Insert the CD in the CD-ROM drive of your computer.
  • Page 10 EM Test ditoControl Start ditoControl Start MS-Windows. Start ditoControl, double-click on the ditoControl -Icon. The startup screen appears for approx. 2s. After that ditoControl shows up on the desktop. Short form Introduction V 2.04 10 /...
  • Page 11 At the end of the wizard dito should be detected. If not, please check all points above. In case that communication works, dito is in Remote and ditoControl shows the status. ditoControl can simulate the dito simulator. For this mode please select <Working><State> <Simulation>.
  • Page 12 For registration please select the menu <About><Info and Registration> and then click on Register. The reg- ister dialog will now appear. Please insert the requested data and press the button Register.  During the registration it is necessary to connect the dito simulator, because the registration code is related to the actual dito device number.
  • Page 13 Test routines can be generated based on the information of a test note. Test Results Test results can be uploaded from dito and used for the generation of a test report. Test Report The test report can be created by using the information of a test note.
  • Page 14 Download must be made with a RS232 Interface only. Using an USB to RS232 interface will not deliver enough power to the optical link. Therefore the datatransfer will fail and dito will not install the new firmware and can not be operated furthermore. The unit has to be send back to factory or to the responsible sales office.
  • Page 15 EM Test ditoControl Input Protection Some data can be password protected. In this case the predefined test routines and standards can not be modified.  To activate the input protection please select the menu <Working><Input Protection><Change Password>.  Then enter the password.
