Summary of Contents for Kellfri 21-TK15F

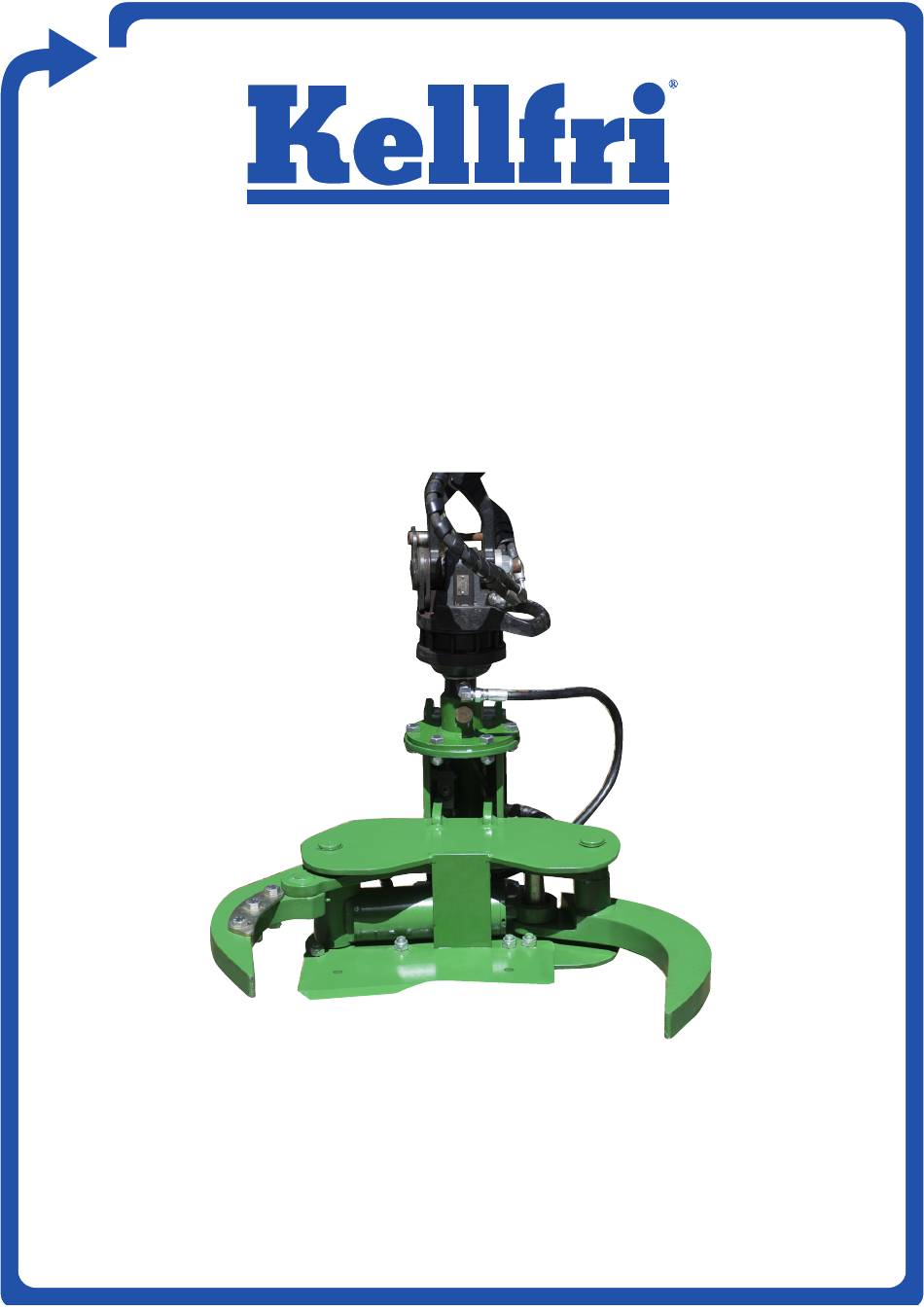

- Page 1 21-TK15F WOOD CHOPPER GRAPPLE READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT !!! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Table Of Contents
Contents Introduction ........................... Product information ......................3 Intended use .......................... Safety information ....................... Product safety information ....................4 Instructions for emergencies ................... Warning labels ........................5 Personal protection ......................Surroundings ......................... Before use ..........................6 Use .............................. 7 After use ........................... 7 Storage ............................ -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information and the instruction manual and by using common sense, you will have a great and safety use of your Kellfri product for many years. Kellfri designs and delivers effective, affordable ma- chinery and components for forest, agriculture, construction and gardening in Sweden, other Nordic countries and Europe. -
Page 4: Safety Information
The general safety instruction is also available from Kellfri’s website: www.kellfri.com Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or severe mental illness. -
Page 5: Warning Labels
WARNING SIGNS AND LABELS Ensure that warning labels are always visible and clean. Clean the warning labels as required. Do not rinse using pressure washer directly on the warning labels. Any damage/ broken stick- ers should be replaced. Order new stickers from your supplier. Symbol Explanation Danger zone... -
Page 6: Surroundings
SURROUNDINGS Always use caution when operating the machine. Check and make sure that the area is clear of people, children and objects before switching on or using the equipment. Risk of serious personal injury. Be especially careful if children are in the area where the equipment is being use or stored. -
Page 7: Use
OPERATION Only people who understand the safety information and instruction manual to operate this equipment. Be alert and careful when working with the equipment and only use the equip- ment in the manner described in the instruction manual. Avoid using of the equipment at temperatures lower than -20 °... -
Page 8: Maintenance And Service
MAINTENANCE AND SERVICE Make sure the trailer is stable and cannot tip over when carrying out maintenance and service work. Replace damaged or worn parts to reduce the risk of injuries. Carry out maintenance, service and checks with recommendations. Only use spare parts with equal performance to reduce the risk of injuries and breakdowns.Check all bolts and nuts are tightened after main- tenance and service. -
Page 9: Link Pins
LINK PIN: Φ25x90 LINK PIN: Φ25x105 LINK PIN: Φ40x70 LINK PIN : Φ25x145 LINK PIN: Φ40x200 LINK PIN: Φ35x155 When cutting big trunks up to 150mm, the trunk should rest on the side of the knife next to the grapple’s claw. When cutting bushes and shrubs, the strains can be placed straight across the blade. - Page 10 Flange Head Body Tilt cylinder Valve package Claw - left Tie Rod Claw - right Grapple Cylinder Knife Cover plate...
-
Page 11: Complaint Form
Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 12: Warranty And Ec Declaration Of Conformity
Other equipment must meet the requirements of the Directive. 2015-06-08 Tina Baudtler, VD Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without notice. CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
