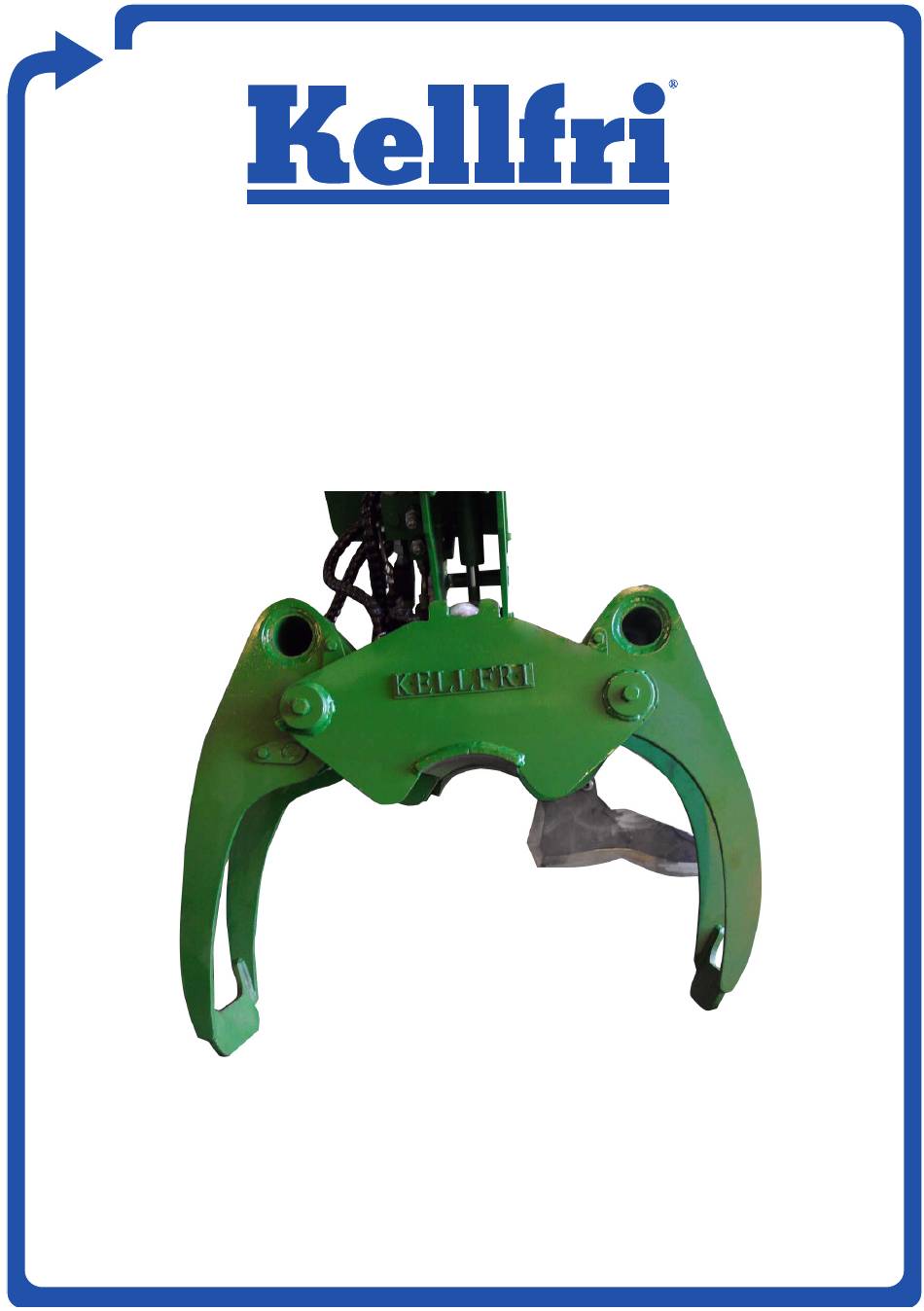

- Page 1 21-TK18 WOOD CHOPPER GRAPPLE READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT !!! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Table Of Contents
CONTENTS Introduction ..3 Product Information Machine data Safety Information Product Safety Information Instructions for emergencies Warning labels Personal protection Surroundings Before use Operation/Runtime After use Storage Maintenance and service ............. 8 Serviceintervall/maintenance Recycling Installing... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the general safety instruc- tions, instruction manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers who have stringent performance demands. -
Page 4: Safety Information
If the instruction manual is damaged or otherwise unusable, please contact your local retailer. For more information, visit our website https://www.kellfri.co.uk/ Kellfri AB Munkatorpgatan 6 532 37 Skara, Sweden... -
Page 5: Warning Labels
WARNING LABELS Make sure that the warning labels are always visible, clean the warning labels if necessary. Do not wash with high pressure washer directly on the warning label. If any part of the decal is worn or label becomes frayed or otherwise unreadable, order new decals. SYMBOL EXPLANATION Danger Zone! -
Page 6: Surroundings
SURROUNDINGS Always use caution when operating the machine. Check and make sure that the area is clear of people, children and objects before switching on or using the equipment. Risk of serious personal injury. Be especially careful if children are in the area where the equipment is being use or stored. -
Page 7: Operation/Runtime
OPERATION Only people who understand the safety information and instruction manual to operate this equipment. Be alert and careful when working with the equipment and only use the equip- ment in the manner described in the instruction manual. Avoid using of the equipment at temperatures lower than -20 °... -
Page 8: Maintenance And Service
MAINTENANCE AND SERVICE Make sure the trailer is stable and cannot tip over when carrying out maintenance and service work. Replace damaged or worn parts to reduce the risk of injuries. Carry out maintenance, service and checks with recommendations. Only use spare parts with equal performance to reduce the risk of injuries and breakdowns.Check all bolts and nuts are tightened after main- tenance and service. -
Page 9: Installing
SETTINGS Basic setting of the choke valves • Start with 1, 2, etc. Loosen the lock nut, then screw out the adjustment screw until you feel that the spring releases and the screw turns easily. • Start now slowly screwing in the adjusting screw until the function works well and you are satisfied with the setting. - Page 10 DESIGNATION ART.NO. body grapple - left grapple - right knife R21-TK18.005 protection plate R21-TK18.007 parallel rods R21-TK18.012 Valve - complete R21-TK18.004 cutting cylinder R21-TK18.001 gripper cylinder R21-TK18.002 tilt cylinder R21-TK18.003...
-
Page 11: Complaint Form
Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 12: Warranty And Ec Declaration Of Conformity
Other equipment must meet the requirements of the Directive. 2015-06-08 Tina Baudtler, VD Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without notice. CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
