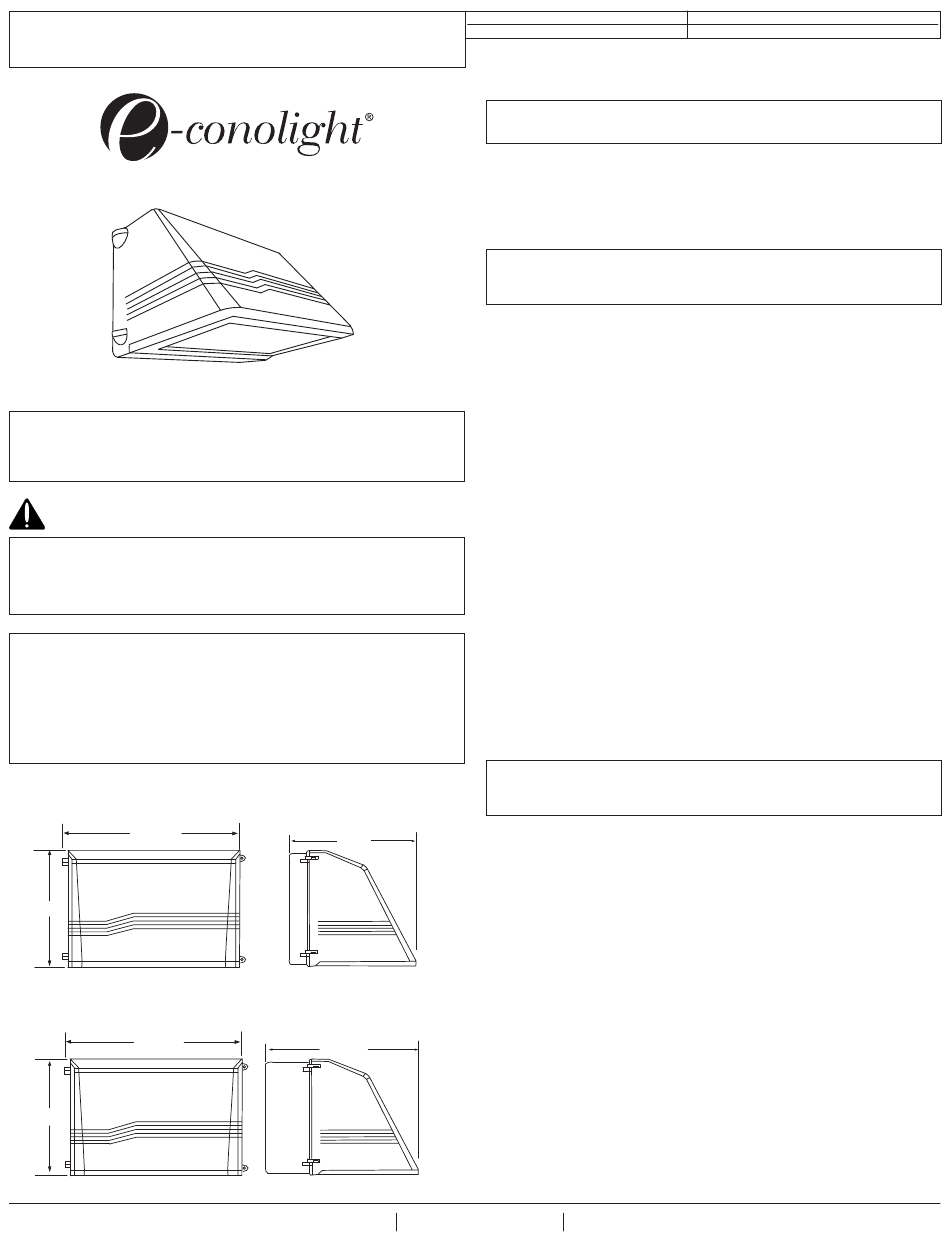

e-conolight E-WPD Series Installation Instructions

INSTALLATION INSTRUCTIONS
E-WPD SERIES
IMPORTANT:
Read carefully before installing the fixture.
SAVE THESE INSTRUCTIONS
CAUTIONS
1. Read carefully before installing the fixture.
2. Make certain power is OFF before starting installation or
attempting any maintenance.
WARNING:
Turn off power supply to avoid the risk of electrical shock. This
product must be wired in accordance with the National Electrical
Code and applicable local codes and ordinances. Proper grounding
is required to ensure personal safety. A qualified electrician should
do all work. Minimum 90°C supply conductors required.
70, 100 or 150W Fixture
14 /
"
1
4
9 /
"
1
16
250W or 400W Fixture
18 /
"
1
8
9 /
"
1
4
w w w. e - c o n o l i g h t . c o m
Document
Drawing/Page
To ensure proper installation and service, the fixture should be
mounted with the lamp in a horizontal position. Do not recess. Also,
make sure fixture is weatherproof by sealing all gaps and holes with
waterproof silicone sealant.
1. Loosen 2 screws located on the side of the fixture housing and
2. (Only necessary for 70, 100 or 150W fixtures) Loosen 2 screws on
3. Remove the screws (or four screws for the 250 or 400W fixtures)
4. Locate and remove the desired conduit plug on the top or the side
5. Mount the fixture to the wall by drilling holes through the back of
6. Attach conduit and pull supply leads through the conduit plug.
7. All unused holes must be plugged. Apply waterproof silicone to all
8. Complete the wiring to the power source and ground (refer to
9. Replace ballast cover and reflector, install lamp, close fixture
NOTE: The 250W and 400W fixtures may not be mounted directly to
11 /
1 "
2
the J-box.
1. Loosen 2 screws located on the side of the fixture housing.
2. Loosen 2 screws on reflector and remove.
3. Remove the 2 screws on the ballast cover and remove.
4. Remove appropriate knock-outs in back of ballast housing to
5. Remove the center hole knock-out, route supply wires through the
6. All unused holes must be plugged. Apply waterproof silicone to all
17 /
"
1
4
7. Complete the wiring to the power source and ground (refer to
8. Replace ballast cover and reflector, install lamp, close fixture
8 8 8 . 2 4 3 . 9 4 4 5
CI308X35R1
JAD
MOUNTING
DIRECT MOUNTING USING CONDUIT
open fixture housing.
reflector and remove.
on the ballast cover and remove.
(or the back for 250W or 400W fixtures) of the fixture housing.
the fixture housing and using the appropriate mounting hardware
for the surface (supplied by customer). When drilling holes, do not
drill within ¼" (6.4 mm) of the edge of the fixture. Also, use
caution when drilling near the ballast, making sure not to nick or
leave metal chips on the ballast windings.
mounting holes and conduit plugs to ensure a tight seal.
wiring instructions), making sure to keep wires away from
the ballast.
housing and tighten the screws.
MOUNTING TO JUNCTION BOX
(70, 100 or 150W FIXTURES ONLY)
match J-box hole pattern.
center hole and secure fixture to J-box.
NOTE: When mounting in wet locations with a J-box,
a J-box rated for Wet Locations should be used.
mounting holes, conduit plugs, and between the fixture and
mounting surface to ensure a tight seal.
wiring instructions), making sure to keep wires away from the
ballast if wiring inside fixture.
housing and tighten screws.
FA X : 2 6 2 . 5 0 4 . 5 4 0 9
Date 08/03/10
DCR# 10-162
