e-conolight E-CSC Series Installation Instructions

INSTALLATION INSTRUCTIONS

E-CSC and E-GSC Series

CAUTIONS

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety
precautions should always be followed including the
READ AND FOLLOW ALL

SAFETY INSTRUCTIONS

1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. For dimming connections use class 1 wiring methods only.
Cablage de classe 1 uniquement.
4. Suitable for Wet Locations.
Adspte pour les Endroits Mouiles.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Remove (4) rear cover plate screws. See Figure 1.
1.
2. Lift optic/cover assembly away from rear cover plate
3. Disconnect the two halves of the quick disconnect(s) attaching
the output leads from the driver to the optics. If equipped with an
occupancy sensor/photocell, disconnect the sensor antenna lead
from the sensor body..
4. Set the optic/cover assembly aside.
5. If equipped with an occupancy sensor/photocell, see Occupancy
Detector/ Photocell Setting section for proper setting of DIP
switches to achieve desired control.

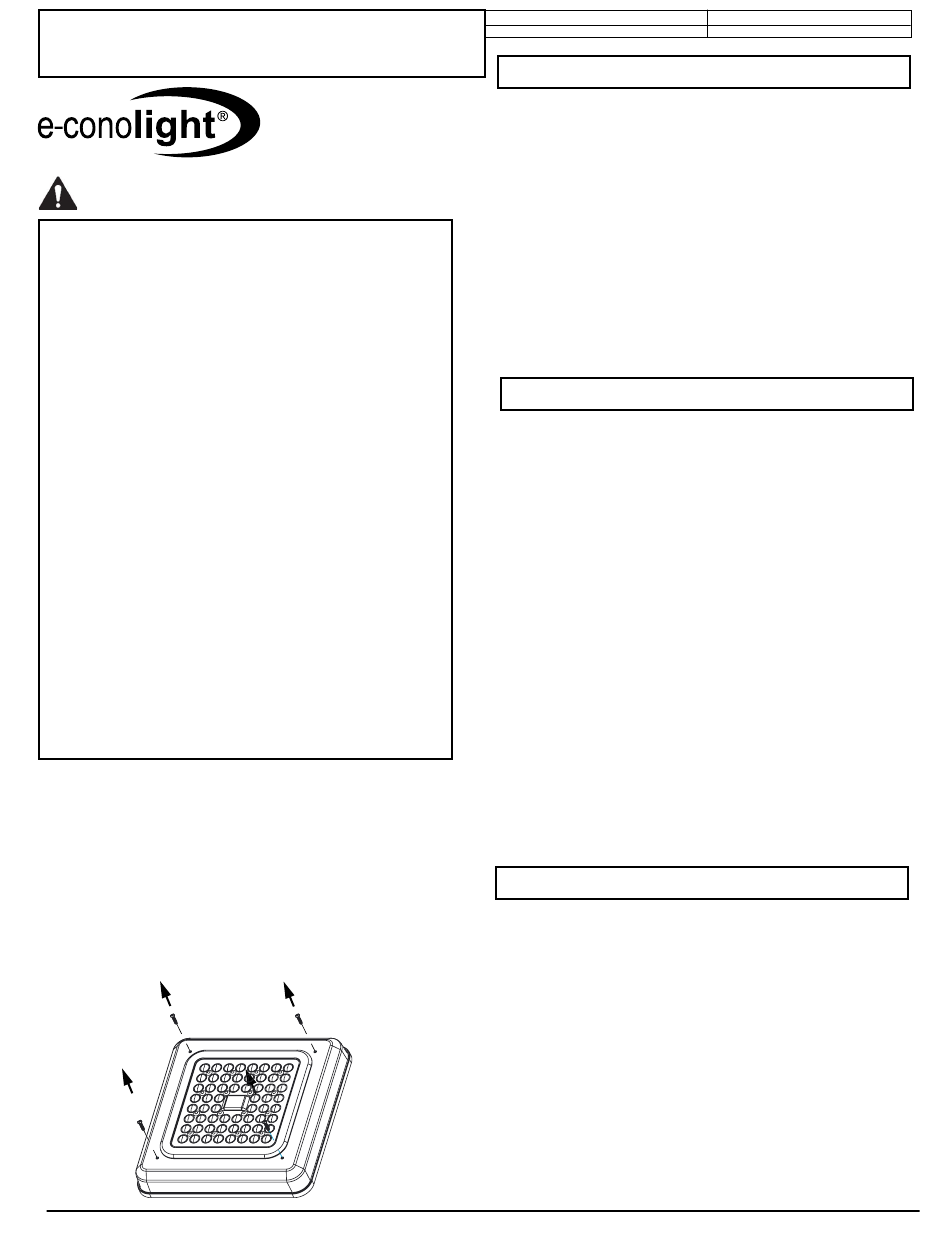

FIGURE 1
following:
www.e-conolight.com
Document: LPN00536X0001A0_A
Created By:
TMT

MOUNTING OVER JUNCTION BOX

1. Drill holes through the mounting slots in the back of the rear cover
plate as appropriate for the junction box being used.
2. For fixtures installed in damp or wet locations, attach supplied
gasket to back of fixture.
3. Splice leads exiting back surface of rear cover plate to leads in
junction box as indicated in Fixture Wiring section.
4. Attach rear cover plate to junction box using screws supplied by
others.
NOTE: If fixture gasket was installed in Step 2, caulk between
fixture and mounting surface to prevent water from entering from
behind. A high grade caulking material, such as silicone rubber,
should be used.
5. Reconnect the two halves of the quick disconnect(s) and the
sensor antenna lead that were disconnected previously.
6. Reinstall the optic/cover assembly onto the rear cover plate by
replacing the (4) rear cover plate screws.

SURFACE MOUNT, REAR CONDUIT ENTRY

NOTE: Fixture is intended for use with conduit having 1/2" NPT
threads.
1. Drill holes through the mounting slots in the back of the rear cover
plate to allow the plate to be attached to the mounting surface.
2. Pull leads from driver through boot covering conduit entry location
on inside surface of rear cover plate so that ends of leads are
accessible on inside of fixture.
3. For fixture installed in damp or wet locations, attach supplied
gasket to back of fixture.
4. Feed supply leads from conduit through holes in boot covering
conduit entry point on rear cover plate.
5. Attach conduit to conduit entry location on back of rear cover
plate.
NOTE: For damp or wet locations, use of teflon tape on threads of
conduit will ensure a water tight seal.
6. Attach rear cover plate to mounting surface using hardware
appropriate for mounting surface.
NOTE: If fixture gasket was installed in Step 3, caulk between
fixture and mounting surface to prevent water from entering from
behind. A high grade caulking material, such as silicone rubber,
should be used.
7. Splice conduit supply leads to driver leads as indicated in Fixture
Wiring section.
8. Reconnect the two halves of the quick disconnect(s) and the
sensor antenna lead that were disconnected previously.
9. Reinstall the optic/cover assembly onto the rear cover plate by
replacing the (4) rear cover plate screws.
NOTE: Fixture is intended for use with conduit or pipe having 1/2"
NPT threads.
1. Pull leads from driver through boot covering conduit entry location
on inside surface of rear cover plate so that ends of leads are
accessible on inside of fixture
2. Route leads exiting end of pendant through holes in boot covering
conduit entry location.
3. Thread rear cover plate onto threaded portion of pendant.
NOTE: Teflon tape should be applied to threads of pendant to
prevent water entry
NOTE: A conduit jam nut can be used to prevent fixture rotation
after installation.
Splice conduit supply leads to driver leads as indicated in Fixture
4.
Wiring section.
5. Reconnect the two halves of the quick disconnect(s) and the
sensor antenna lead that were disconnected previously.
6. Reinstall the optic/cover assembly onto the rear cover plate by
replacing the (4) rear cover plate screws.
| 888.243.9445 | FAX: 262.504.5409
Date
ECO#

PENDANT MOUNT

2017-10-31
008445
