5.
7.
6.
8.

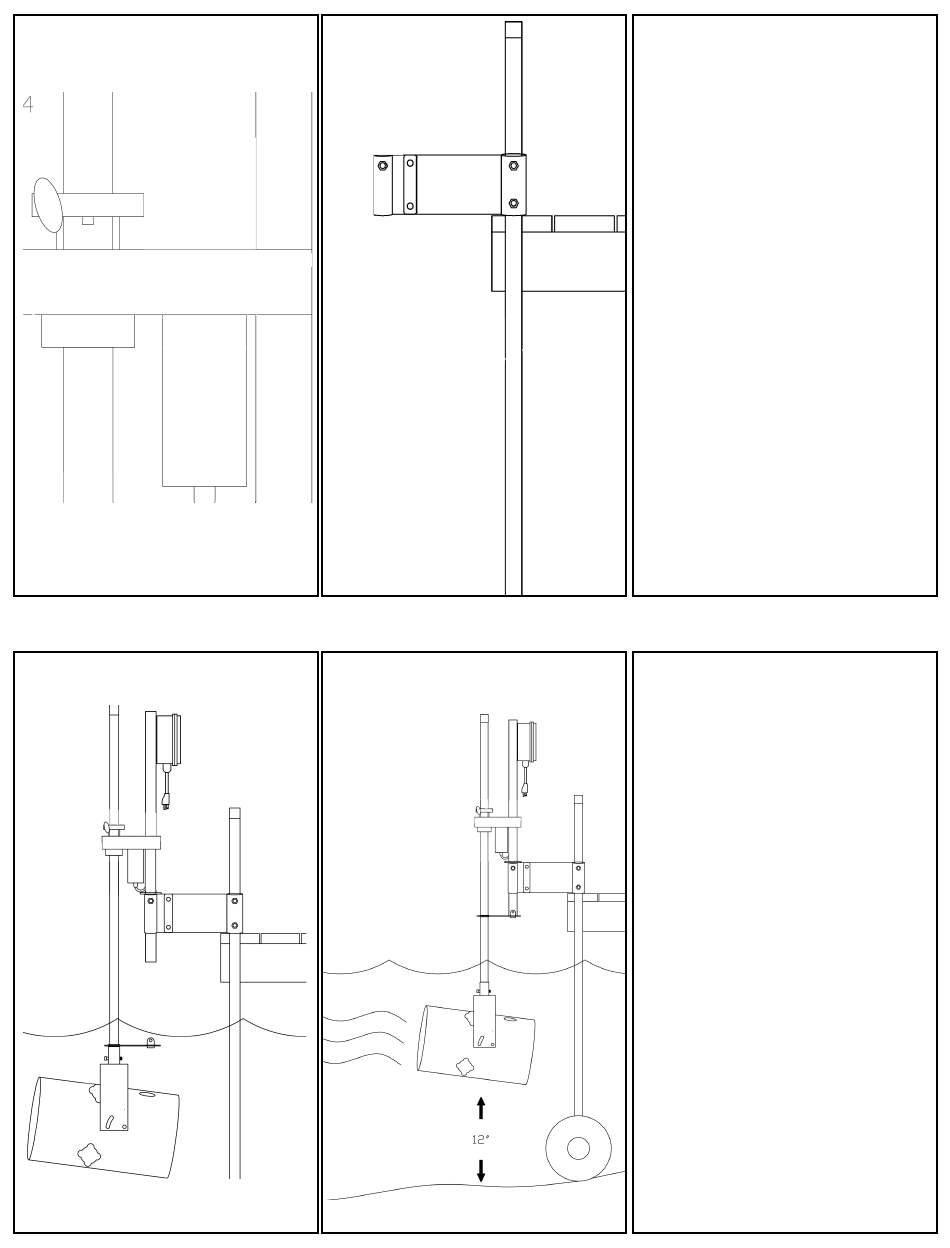

4. Slide the shaft cap
back on and then
tighten the collar
with the thumb
nut HAND TIGHT.
5. Instal the dock
mount to a secure
spot on the dock
and ensure all the
bolts are
tightened.
*Shown with a HS-310
series bracket. Brackets very.*
6. Set the
HydroSweep Pro
into the dock
bracket and tighten
the position locking
bolt.
7. Ensure the
Hydrosweep Pro is
positioned 12" off
the floor of the lake
and slide the shaft
support bracket up
and slide the pin
through the rotator.
