3 Front and Rear Panels

This section describes the front and rear panels of the XTi-VBox TV Gateway set-top box.

3.1 Front Panel

All XTi-VBox Android TV Gateway products share the same front panel, illustrated in Error! Not a valid
bookmark self-reference..

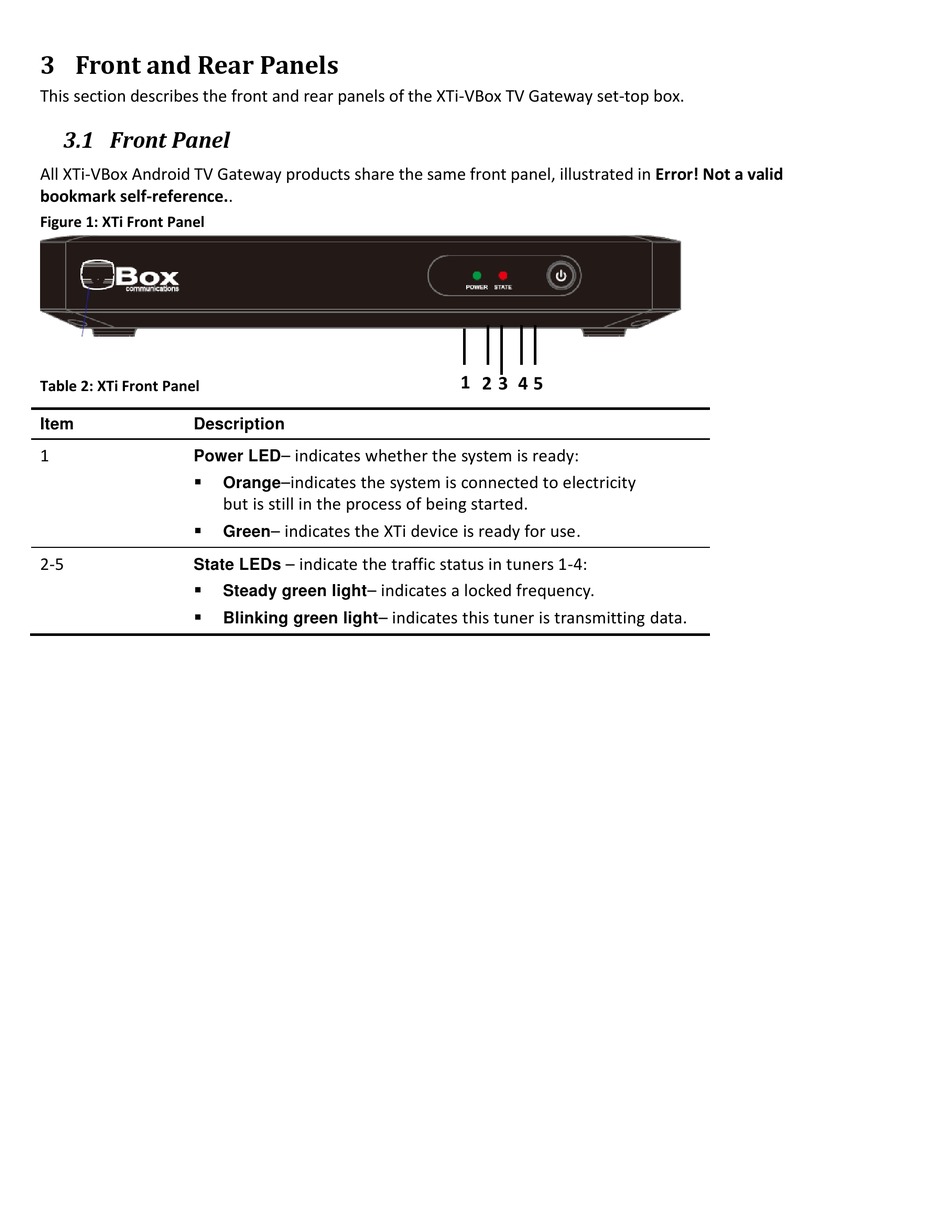

Figure 1: XTi Front Panel
Table 2: XTi Front Panel
Item Description
1
Power LED


2-5
State LEDs


– indicates whether the system is ready:
–indicates the system is connected to electricity
Orange
but is still in the process of being started.
– indicates the XTi device is ready for use.
Green
– indicate the traffic status in tuners 1-4:
– indicates a locked frequency.
Steady green light
– indicates this tuner is transmitting data.
Blinking green light
1 2 3 4 5
