KingShield A4N Safety And Installation Instructions

SAFETY AND INSTALLATION
BATHROOM SINGLE & DUAL
VOLTAGE SHAVER LIGHT

SAFETY INSTRUCTIONS

IMPORTANT
This unit should be installed to current IET wiring
regulations, if in doubt consult a qualified electrician.
1. Disconnect from the mains supply before
proceeding with the installation.
2. These products should be connected to a lighting
circuit or fused at a maximum of 5A.
3. The transformer incorporated in these products has
an isolating 20VA loading and an output of 230V
and 115V on the dual voltage version and 230V on
the single.
4. Please check with the manufacturers instructions
for suitability with rechargeable shavers.

INSTALLATION INSTRUCTIONS

These units must be mounted horizontally on a
vertical surface. Please read the instructions fully
before attempting installation and retain for future
reference.
1. Remove the diffuser by gently pressing the sides at
the point indicated, in Fig.1, and lift out.
2. Remove the 60 watt 284mm tube by gently pushing
it sideways into the right hand or left hand socket
and removing it from the sockets See Fig. 2
3. Remove the back plate of the shaver light and using
a template mark fixings in the required position on
the wall, and drill fixing holes accordingly.
4. Connect the cable by passing through the hole in
the back plate and follow the codes as listed:
Live (L) = Brown or Red, Neutral (N) = Blue or
Black, conductor size 0.5mm to 1.5mm solid or
stranded, ensure that no strands of cable are visible
outside the connector.
5. Place shaver light into position with black plate
secured and screw into wall with appropriate
screws through the holes in the base of the unit.
6. Replace the lamp and diffuser.
7. Switch back on the mains supply and shaver light is
now ready for use.
Before plugging in the shaver, select the correct out
put voltage (230 or 115) with the switch provided
(dual voltage version only).
INSTRUCTIONS FOR
- Model No. A4N

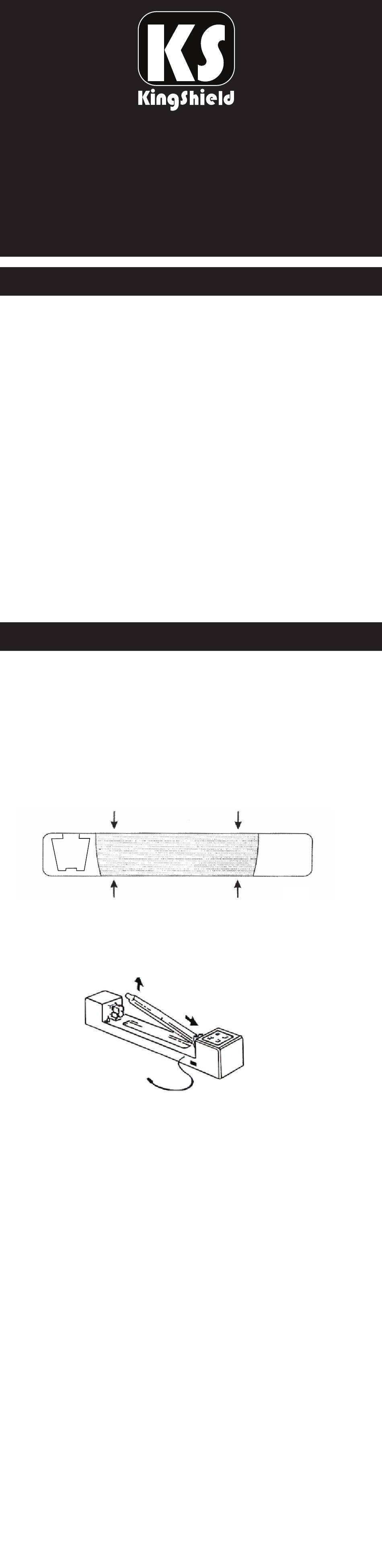

Fig.1
Fig. 2
