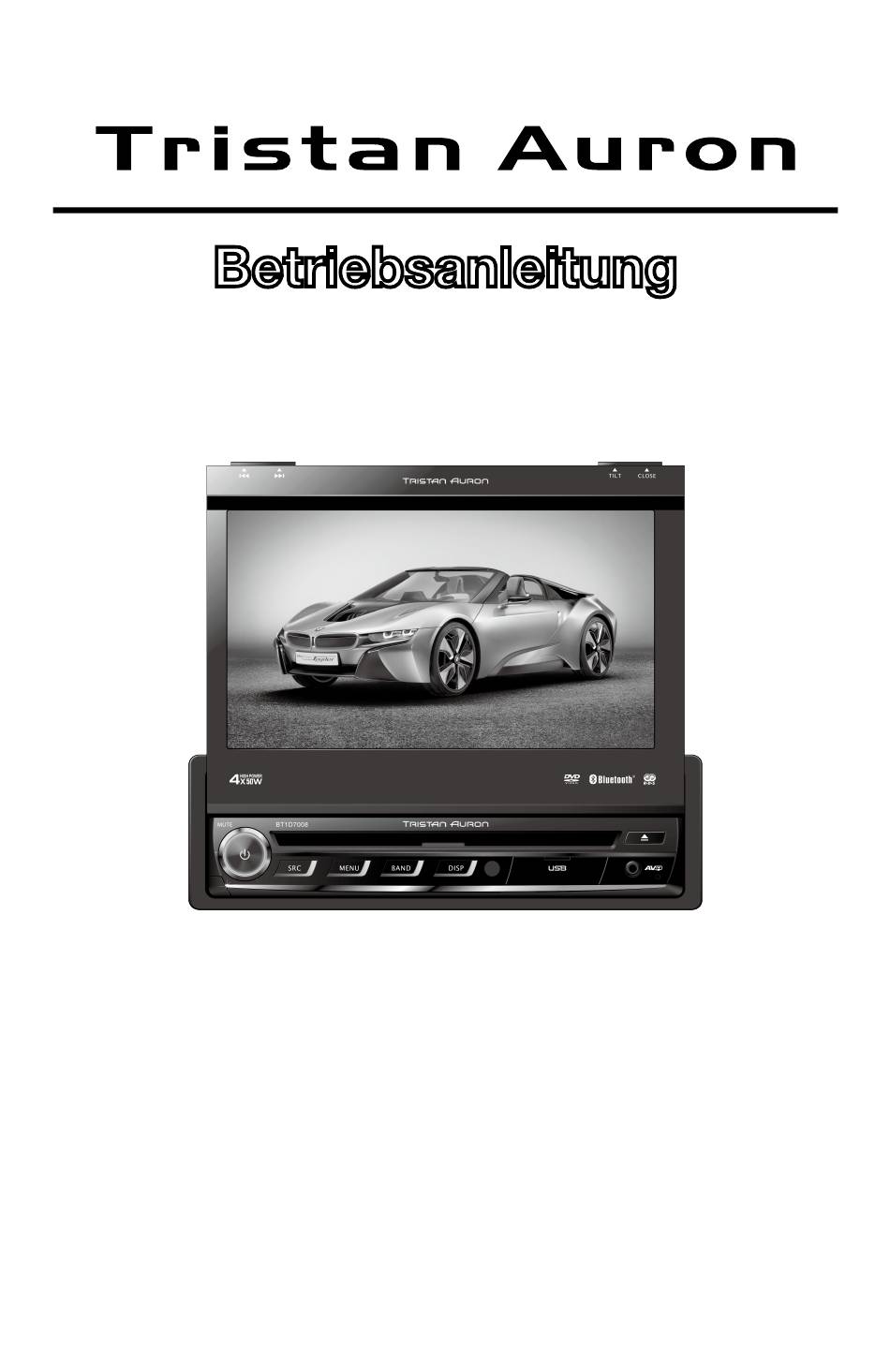

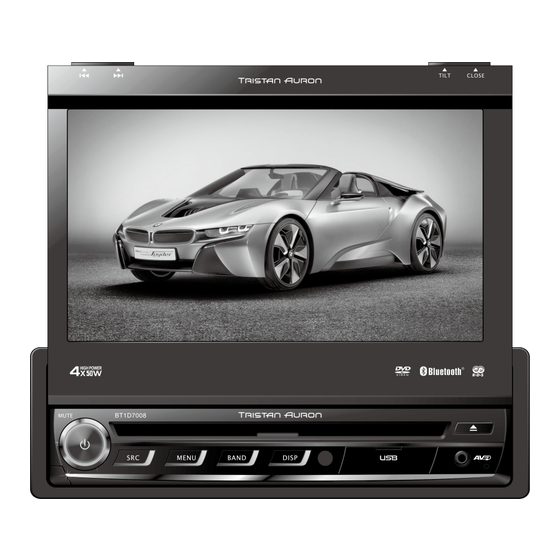

- Page 1 Betriebsanleitung BT1D7008 DVD/VCD/CD/MP3/MP4/USB/SD/MMC PLAYER FM/AM TUNER • Bluetooth-Unterstützung...
- Page 2 Warnings 1. Only connect this unit to a 12V DC power 5. Please don't change the fuse in the power supply with negative grounding. cord without professional guidance, improper fuse may cause damage to this using unit or even cause fire. 2.
- Page 3 Precautions 1. Never disassemble or adjust the unit 10.During operating the unit, ' ' will without any professional guide. For display if the current operation is not details, please consult any professional car available or illegal. shop / dealer for inquiry. 11.Operate the unit correctly according to this 2.
-
Page 4: Table Of Contents
Contents Before using Playback information ......10 Front panel ..........1 Bluetooth mode Auxiliary LCD ......... 2 Select bluetooth as playing source ..11 Remote control ........2 Function icons ........11 Basic operations Work modes of bluetooth module ..11 Power on / off ......... 4 Phone mode ..........11 Mute ............ -
Page 5: Before Using Front Panel
Before using Front panel TILT CLOSE 1. [ ] Key: Next / With the monitor closed, press to seek forward 2. [ ] Key: Previous / With the monitor closed, press to seek backward / MUTE / VOL] Knob Key: Unit power / Mute audio outputs / Adjust volume 3. -
Page 6: Auxiliary Lcd
Before using Auxiliary LCD 23.[ ] Key:Auto search / Next / Move cursor to the right 24.[ ] Key: Play / Pause / Enter 25.[ ] Key: Auto search / Previous / Move cursor to the left 26.[PIC] Key: Image setting 27.[ ] Key: Fast Reverse/ Move cursor down 1. - Page 7 Before using Install battery Notes of remote control using Use button-shaped lithium battery 1. Aim the remote control at the remote “CR2025 (3V)” only. Insert the sensor on the unit. 2. Remove the battery from the remote battery to the battery tray with proper control or insert a battery insulator if the direction according to the (+) and (-) battery has not been used for a month or...
-
Page 8: Basic Operations Power On / Off
Basic operations Power on / off Using the TFT monitor Open / Close monitor Press and hold the [ ] key on the front Press the [OPEN/CLOSE] key on the front panel to turn on the power under standby panel or remote control to push the display mode. -
Page 9: Rds Operations
RDS operations PTY function The unit provides basic functions of RDS, including PI (Program Identification), radio station name , PTY is the abbreviation for Program Type RT (Radio Text), CT (Clock Time), AF (Alternative which is a code defining the type of program Frequency), TA (Traffic Announcement) and PTY being broadcast (e.g. -
Page 10: Radio Mode
Radio mode Select radio as playing source FM3, AM1, AM2, and each band can store 6 stations; hence the unit can store 30 Open the SOURCE MENU and then touch stations in all. [RADIO]. Manual save Select one radio band When one expected radio station has been Press the [BAND] key on the display panel detected:... -
Page 11: Disc Mode Insert A Disc
Disc mode Insert a disc Suspend playback Upon inserting a disc, the unit will switch to Press the [ ] key on the remote control or disc mode automatically. open the onscreen control buttons menu and then touch the [ ] icon. -
Page 12: Onscreen Control Buttons
Disc mode Onscreen control buttons EN - 8... -
Page 13: Repeat Playback
Disc mode Repeat playback Do the above operation again to cancel this function. Press the [RPT] key on the remote control repeatedly or open the onscreen control Direct search buttons menu and then touch the [ ] icon repeatedly to alter repeat mode according to When a DVD, VCD or CD disc is played back, the following table. -
Page 14: Select Subtitle Language
Disc mode or open the onscreen control buttons menu is prohibited. and then touch the [TITLE] icon to open DVD 3. I f y o u d o t h e o p e r a t i o n o f r a n d o m TITLE. -
Page 15: Bluetooth Mode
Disc mode Bluetooth mode that is English. Bluetooth is a wireless transmission way 6. Touch the [SUB TITLE] button repeatedly for short distance operating at 2.4GHz. to choose a subtitle language. The bluetooth module can connect with the 7. Multi angle. mobile phones having bluetooth function. -
Page 16: Music Mode
Bluetooth mode appears on the pairing list on your mobile Voice transfer While talking, touch the 'Voice transfer' icon phone, you should select it. At this time, on the screen to transfer audio from the unit a pairing code is required. The Bluetooth to your mobile phone, and touch again to module will exit pairing mode if there is no transfer audio from your mobile phone to the... -
Page 17: Sd/Usb Mode
SD/USB mode Using the touch screen controls 1. Load USB equipment Open the cap, insert the USB into the The operation is the same as DVD mode. connector. Onscreen control buttons Onscreen control buttons under USB mode are the same as disc mode. 2. -
Page 18: Other Modes Aux
Other modes SOURCE" /"BAND" /" NULL" 3. Touch the anyone key that you want ,and External peripheral devices with RCA audio the setting is success. and video outputs can be connected with the unit. Touch the nether left corner of the screen to To enter AUX IN mode, open the SOURCE exit, the setting of the other keys as the same MENU and then touch AUX IN. -
Page 19: Setup
Setup Setup procedures ● Beep On: When turned on, an audible beep tone 1. Enter setup mode confirms each function selection. Press the [SETUP] key on the remote Off: No beep sounds. control or touch the setup icon [ ] on Language the user interface. -
Page 20: Bluetooth
Setup Bluetooth 2. G: A movie rating that allows admission to persons of all ages. ● Bluetooth 3. P G : A m o v i e r a t i n g t h a t a l l o w s On: Turn on the power of the Bluetooth admission of persons of all ages but module. -
Page 21: P.vol
Setup ● Video input NTSC: Set the color system of the TFT screen to NTSC. PAL: Set the color system of the TFT screen to PAL. AUTO: Set the color system of the TFT screen automatically by the unit according to the input video formats. - Page 22 Audio control allows you to easily adjust the audio system to get the best possible sound effect. 1. Enter the EQ setup mode Press the [EQ] key on the remote control or touch the EQ icon in the user interface and the following interface will display on the screen.
-
Page 23: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Unit can not power on Car battery fuse blown. Install new fuse with correct rating. - Page 24 Troubleshooting Continued Problem Cause Corrective action Disc playback Cannot insert disc A disc inside the unit already. Eject current disc and insert new one. Disc is warped or scratched. Use disc in good condition. Disc is dirty or wet. Clean disc with soft cloth. Incompatible disc is used.
-
Page 25: Device Connections Notes Of Connection
Device connections Notes of connection Control cables ● This unit is designed to be used in a Auto brightness control vehicle with a 12-volt battery and negative To avoid the display being too bright at night grounding. Before installing this unit to a time, if the headlight cable is connected to recreational vehicle, a bus, or a truck, make ILLUMI, turning on the headlight will dim the... -
Page 26: Parking Brake Cable Connections
Device connections Parking brake cable connections Reverse driving cable connections EN - 22... -
Page 27: Installation And Uninstall Notes Of Installation
Installation and uninstall Notes of installation Remove the unit 1. Before installation, please make sure proper 1. Switch off the power of the unit. connections are conducted and the unit 2. Remove the trim plate. operates normally. Improper connection may 3. -
Page 28: Disassemble The Detached Panel
Installation and uninstall Disassemble the detached panel Assemble the detached panel 1. Press this button, it’s ok when heard “KA 1. Put the panel on the fixed panel by KA”. downward direction. 2. Grasp the panel, you can remove the panel by upward direction, which is like the following picture. -
Page 29: Specifications
Specifications General Audio Reference Supply Voltage 12V DC Audio Output Impedance 200Ω Operating Voltage Range 10.5~15.8V(DC) Audio Output Level 2Vrms(Max) Max Operating Current Audio Input Level 0.4Vrms Grounding System Car Battery Negative (Under normal audio input level and Pole maximum volume) Installation Dimension 178x50x(165+25)mm (WxHxD)output... -
Page 30: Appendix Region Code
Appendix Region code According to DVD sale region, the whole world is divided into six regions. A DVD disc can be played back only when its region code is compatible with that of the player in use. Region 1: USA, Canada, East Pacific Ocean Islands; Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;... - Page 31 CLASS 1 LASER PRODUCT P.N.: 127075005584...
