Toa SR-A12L, SR-A12S, SR-A18B, SR-A12LWP, SR-A12SWP, SR-RF12, SR-RF12WP, SR-TP12 Operating Instructions Manual
Line array speaker, rigging frame, tilt joint plate
Hide thumbs
Also See for SR-A12L, SR-A12S, SR-A18B, SR-A12LWP, SR-A12SWP, SR-RF12, SR-RF12WP, SR-TP12:
- Brochure (4 pages) ,
- Specifications (4 pages)
Table of Contents
Advertisement
Quick Links
LINE ARRAY SPEAKER
RIGGING FRAME
TILT JOINT PLATE
Thank you for purchasing TOA's Line Array speaker system, Rigging Frame and Tilt Joint Frame.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
OPERATING INSTRUCTIONS
SR-A12L, SR-A12S, SR-A18B,
SR-A12LWP, SR-A12SWP
SR-RF12, SR-RF12WP
SR-TP12
Note that casters must be prepared separately.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa SR-A12L, SR-A12S, SR-A18B, SR-A12LWP, SR-A12SWP, SR-RF12, SR-RF12WP, SR-TP12
Summary of Contents for Toa SR-A12L, SR-A12S, SR-A18B, SR-A12LWP, SR-A12SWP, SR-RF12, SR-RF12WP, SR-TP12

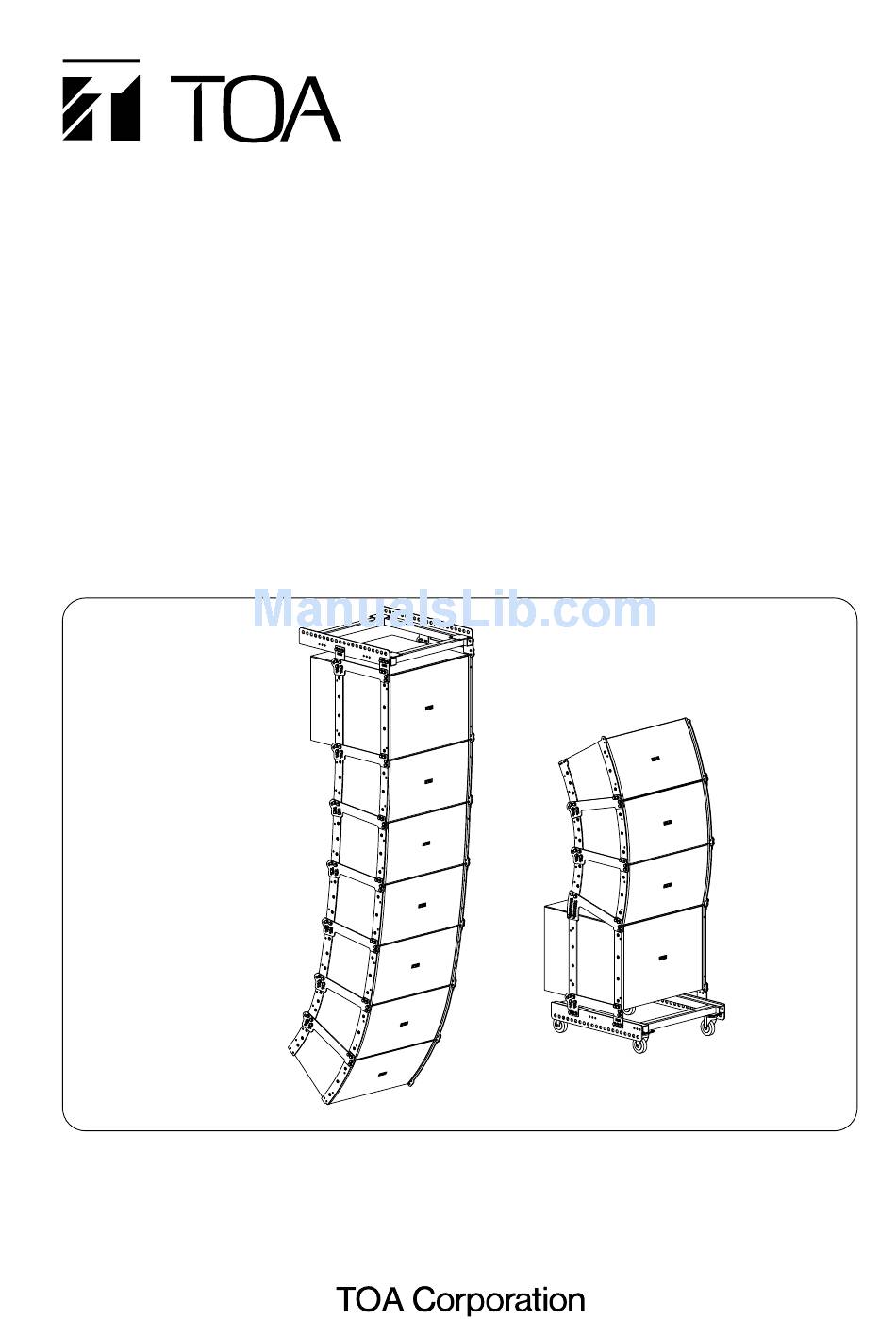

- Page 1 Thank you for purchasing TOA’s Line Array speaker system, Rigging Frame and Tilt Joint Frame. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. OPERATING INSTRUCTIONS SR-A12L, SR-A12S, SR-A18B, SR-A12LWP, SR-A12SWP SR-RF12, SR-RF12WP SR-TP12 Note that casters must be prepared separately.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS 2. GENERAL DESCRIPTION 3. FEATURES 4. DIMENSIONS 5. INPUT CONNECTORS 6. INTERNAL WIRING DIAGRAM 7. CONNECTIONS 8. DIGITAL PROCESSOR SETTINGS 9. FLYING 9.1. General Description ... 12 9.2. SR-RF12(WP) Rigging Frame Assembly ... 13 9.3. -
Page 3: Safety Precautions
Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage. • (SR-A12LWP, SR-A12SWP, SR-RF12WP only) When installing the unit in a snowy area, take appropriate measures to prevent snow from lying on the unit. - Page 4 CAUTION • When unpacking or moving the unit, be sure to handle it with two or more persons. Falling or dropping the unit may cause personal injury and/or property damage. • Avoid placing the unit in a doorway or other high traffic area as people may trip on the equipment and cords, or be injured by falling objects.
-
Page 5: General Description
10 degrees if the SR-TP12 Tilt Joint Plate is additionally used, allowing more appropriate coverage areas to be set. • The SR-A12LWP and SR-A12SWP are in full conformity with IPX4 Standards, and can be installed outdoors. For outdoor installation conditions, refer to page 17; “Notes on Outdoor Installation” of this manual. - Page 6 SR-A12S (Left Side) SR-A18B (Left Side) Input panel (Rear) Joint plate (accessory) Flying plate (Front) Flying plate (Rear) (Front) Input panel Joint plate (accessory) (Rear) Flying plate (Front) Flying plate (Rear) (Front) Unit: mm (Right side) Unit: mm (Right side)
- Page 7 SR-A12LWP (Left Side) SR-A12SWP (Left Side) Input panel Joint plate (accessory) (Rear) Flying plate (Front) Flying plate (Rear) (Front) (Right side) Air Hole (Bottom only) (Bottom) Input panel Joint plate (accessory) (Rear) Flying plate (Front) Flying plate (Rear) (Front) (Right side)
- Page 8 SR-RF12, SR-RF12WP (Left side) SR-TP12 (Top) (Front) (Bottom) Caster Mounting Plate Unit: mm 16-M10 21-ø20 (Right side) Unit: mm...
-
Page 9: Input Connectors
LOW - HIGH + HIGH - The connector (connection cable side) suited to the NEUTRIK NL4MP is the NEUTRIK NL4FC. SR-A12LWP and SR-A12SWP (for outdoor use) Figure below shows the speaker cable arrangement of each speaker system. SR-A18B SR-A18B INPUT +... -
Page 10: Internal Wiring Diagram
HIGH - Speaker cable SR-A18B INPUT + INPUT - THROUGH THROUGH 7. CONNECTIONS System using the SR-A12L, SR-A12S, SR-A12LWP or SR-A12SWP Mixer/Pre-amplifier System which combines the SR-A12L or SR-A12S with the SR-A18B Mixer/Pre-amplifier Digital Processor Power Amplifier HIGH Digital Processor... -
Page 11: Digital Processor Settings
8. DIGITAL PROCESSOR SETTINGS Recommended setting parameters are as follows. System using the SR-A12L, SR-A12S, SR-A12LWP or SR-A12SWP Gain Channel Polarity (dB) Normal HIGH Inverse System which combines the SR-A12L or SR-A12S with the SR-A18B Gain Channel Polarity (dB) S-LOW 3.0*... -
Page 12: Flying
9. FLYING 9.1. General Description Use the SR-RF12(WP) Rigging Frame for flying the Line Array speaker. With the use of the SR-RF12(WP), up to 8 Line Array speakers can be arranged in flying configuration. The SR-A18B Subwoofer system is counted as 1.5 pieces. -
Page 13: Sr-Rf12(Wp) Rigging Frame Assembly
This flying system is made up of four SR-A12L speakers, two SR-A12S speakers, and one SR-A18B speaker. To transmit sound over long distances, the four SR-A12Ls are given overlapping angles of 4, 2, and 1 degree, resulting in a total vertical directivity angle of 43 degrees. The overlapping angle can be adjusted by means of the Joint Plates used to join the speakers. -
Page 14: Joining The Enclosure To The Rigging Frame
9.3. Joining the Enclosure to the Rigging Frame Flying Plates are mounted at both the front and rear of the enclosure’s sides. Follow the procedure below to mount the enclosure to the Rigging Frame, as shown in the assembly diagrams. Fix a supplied Joint Plate securely to the left side of the Rigging Frame and another to the right side of the enclosure, each using 4 supplied bolts with plain washers and spring washers. -
Page 15: Joining Enclosures
9.4. Joining Enclosures Use the supplied Joint Plate to join the enclosures by way of the enclosure's flying plate. As shown in the figure, mount a Joint Plate securely to the upper enclosure's lower left side, using 4 supplied bolts with plain washers and spring washers. -
Page 16: Notes On Flying
9.5. Notes on Flying WARNING • Fly the assembled system vertically from at least at two points on the left and right sides. • Use a suspension point that provides the desired downward angle. The downward angle increases as the suspension point is moved backward. •... - Page 17 Notes on Outdoor Installation WARNING • Only the SR-A12SWP or SR-A12LWP Line Array speaker can be installed outdoors. There is no Subwoofer available to be installed outdoors. • WP type speaker features the water protection construction (IPX4), however install it under roofs, eaves, or other locations not directly exposed to rain or snow.
-
Page 18: Stacking
10. STACKING 10.1. General Description Line Array speakers can be stacked using the SR-RF12 Rigging Frame. Up to 5.5 speakers can be stacked, counting each Line Array speaker as 1 piece and each SR-A18B Subwoofer as 1.5 pieces. Shown below is a basic stacked system. -
Page 19: Mounting The Enclosure To The Rigging Frame
10.3. Mounting the Enclosure to the Rigging Frame Flying Plates are mounted to the front and rear of the enclosure’s sides. Follow the procedures below to mount the enclosure to the Rigging Frame, as shown in the assembly diagrams. Fix a supplied Joint Plate securely to the right side of the Rigging Frame, and another Joint Plate to the left side of the enclosure, each using 4 supplied bolts with plain washers and spring washers. -
Page 20: Joining Enclosures
10.4. Joining Enclosures For joining enclosures, refer to “9 Flying, 9-4. Joining Enclosures”. 10.5. Notes on Stacking • Prepare casters and caster mounting bolts separately, as the Rigging Frame’s leg. • When stacked, the Line Array speaker’s front or rear deviation from the Rigging Frame must be within 10cm. Also, whenever possible, select mounting plate positions that allow the system’s center of gravity to be situated near the center of the Rigging Frame. -
Page 21: Tilting The Enclosure Downward
10.6. Tilting the Enclosure Downward The lower Line Array speaker, excluding the subwoofer, can be tilted downward with the addition of SR-TP12 Tilt Joint Plates. SR-TP12 Tilt Joint Plates make it possible to set wider angles than can be achieved using the supplied Joint Plates. - Page 22 Typical stacking example using the tilt joint plate SR-A18B x1, SR-A12S x1, SR-A12L x3 Vertical facing angle: 0 degree - 15 degrees (Left side) SR-A12S x1, SR-A12L x4 Vertical facing angle: 10 degrees - 15 degrees (Left side) WARNING SR-A12L SR-A12S SR-A18 Vertical facing angle:...
-
Page 23: Specifications
Finish Dimensions 740 (w) x 433 (h) x 469 (d) mm Weight 49 kg (including accessories) Accessories *The design and specifications are subject to change without notice for improvement. SR-A12LWP, SR-A12SWP Model Enclosure Power Handling Capacity Rated Impedance Sensitivity Low frequency: 98 dB (1 W, 1 m) - Page 24 SR-A18B Model Enclosure Power Handling Capacity Rated Impedance Sensitivity Frequency Response Crossover Frequency Speaker Component (low) Input connectors Finish Dimensions Weight Accessories *The design and specifications are subject to change without notice for improvement. SR-RF12, SR-RF12WP Model Number of Speakers to be Mounted (The SR-A18B (optional) is counted as 1.5 pieces)
