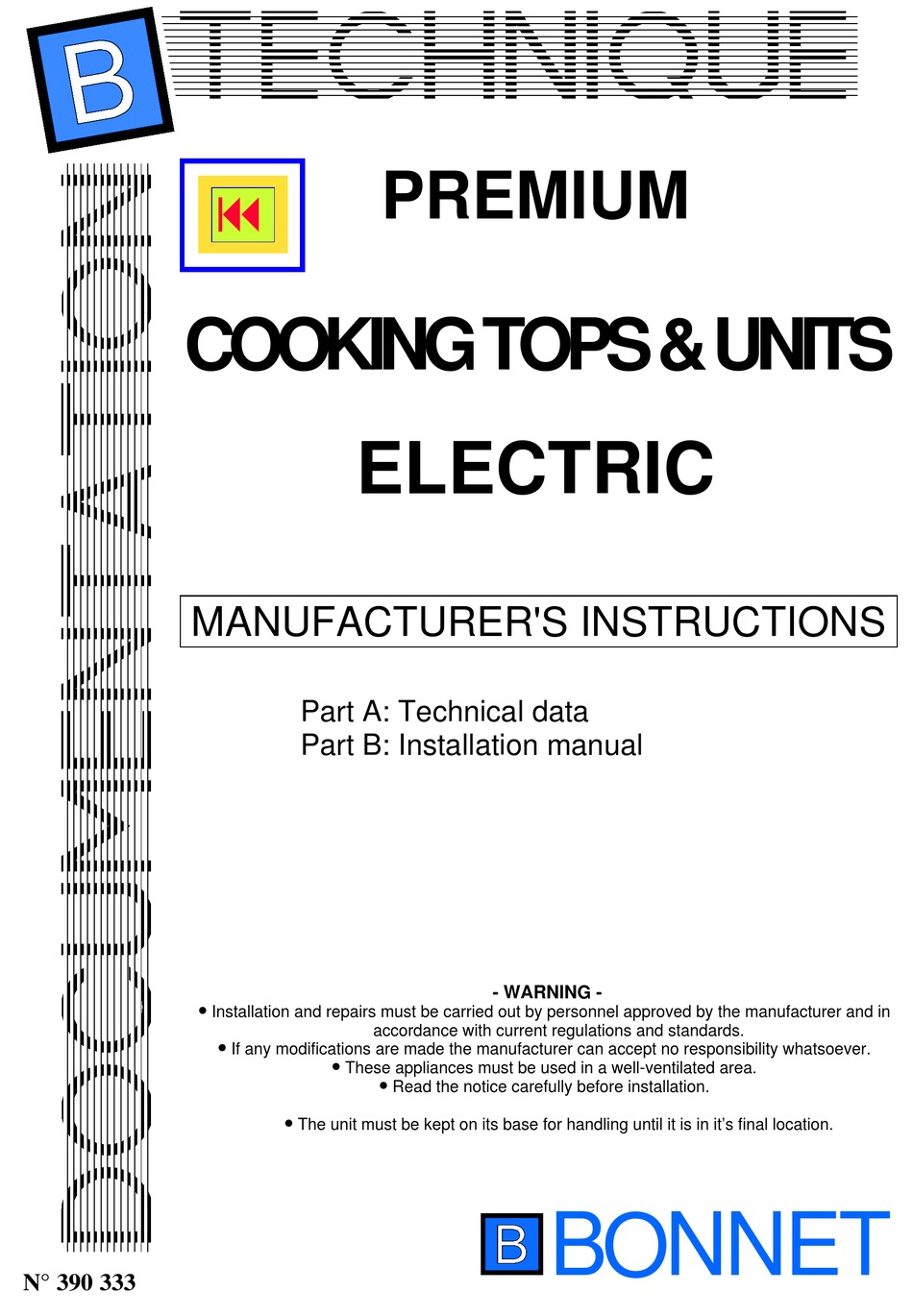

COOKING TOPS & UNITS
MANUFACTURER'S INSTRUCTIONS
N° 390 333
9
ELECTRIC
Part A: Technical data
Part B: Installation manual
•
Installation and repairs must be carried out by personnel approved by the manufacturer and in
•
If any modifications are made the manufacturer can accept no responsibility whatsoever.
•
These appliances must be used in a well-ventilated area.
•
The unit must be kept on its base for handling until it is in it's final location.
PREMIUM
- WARNING -
accordance with current regulations and standards.
•
Read the notice carefully before installation.
B
N
O
NET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-D9P.FR500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bonnet B-D9P.FR500

Summary of Contents for Bonnet B-D9P.FR500

  • Page 1 PREMIUM COOKING TOPS & UNITS ELECTRIC MANUFACTURER'S INSTRUCTIONS Part A: Technical data Part B: Installation manual - WARNING - • Installation and repairs must be carried out by personnel approved by the manufacturer and in accordance with current regulations and standards. •...

  • Page 2: Table Of Contents

    3.1 Cooking tops ……………..…...……...………………..……….…..3.2 Cooking units ……………..…...……...…………..……..…..……..Installation: Connection ……………………………………………...……. 38 4.1 Electrical connection ……………..…...……...……………..……..4.2 Water connection ……………..…...……...………...……..…..…..4.3 Drain connection ……………..…...……...…………..……………..40 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 3: A) Technical Data

    Intensity max (A) 230V 3a.c. 26.3 40.3 400V 3Na.c. 17.3 26.5 ELECTRICAL CONNECTION 630 mm from floor Non contractual document Edition 04/2002 – EN201 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 4 Smooth stainless 18mm Ø tube + 20cm silicone pipe DRAIN Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 630 mm from floor Non contractual document Edition 04/2002 – EN202 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 5 Intensity max (A) 230V 3a.c. 13.6 27.1 400V 3Na.c. 15.6 ELECTRICAL CONNECTION 630 mm from floor Non contractual document Edition 04/2002 – EN203 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 6 ELECTRICITY (Three phase 400V+N+E) Power(kW) 400V 3Na.c. Intensity max (A) 400V 3Na.c. ELECTRICAL CONNECTION 630 mm from floor Non contractual document Edition 04/2002 – EN204 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 7 Smooth stainless 18mm Ø tube + 20cm silicone pipe Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 630 mm from floor Non contractual document Edition 04/2002 – EN205 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 8 Smooth stainless 18mm Ø tube + 20cm silicone pipe DRAIN Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 630 mm from floor Non contractual document Edition 04/2002 – EN206 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 9 Smooth stainless 18mm Ø tube + 20cm silicone pipe DRAIN Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 630 mm from floor Non contractual document Edition 04/2002 – EN207 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 10 PACKAGING (mm) Height Width 1100 Width + 100 Depth 1050 1050 1050 1050 WEIGHT (KG) Non contractual document Edition 04/2002 – EN208 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 11 Shelf width: C 1397 1777 PACKAGING (mm) Height Width 1100 1600 2100 Depth WEIGHT (KG) Non contractual document Edition 04/2002 – EN209 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 12 Optional heated cupboard (Adds to the total power of the appliance) (Not compatible with Three phase 230V, in width 1000) Power (kW) Intensity max (A) ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN225 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 13 400V 3Na.c. 21.1 Intensity max (A) 400V 3Na.c. 33.4 ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN226 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 14 22mm ∅ pipe DRAIN Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN227 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 15 DRAIN Prévoir collecteur mural en PVC ∅ 50 Connection ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN228 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 16 Power (kW) 230V 3a.c. Intensity max (A) 230V 3a.c. ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN229 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 17 Power (kW) 400V 3Na.c. Intensity max (A) 400V 3Na.c. ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN230 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 18 22mm ∅ pipe DRAIN Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN231 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 19 22mm ∅ pipe DRAIN Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN232 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 20 22mm ∅ pipe DRAIN Provide a 50mm ∅ drain outlet Connection ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN233 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 21 Single phase 230V a.c. Power (kW) Intensity max (A) ELECTRICAL CONNECTION 200 mm from floor Non contractual document Edition 04/2002 – EN234 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 22 PACKAGING (mm) Width 1100 Height 1150 Depth 1050 1050 WEIGHT (KG) BASE COMPRISES Compartment with Non contractual document Edition 04/2002 – EN235 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 23 2 x 898 Leg centres: B PACKAGING Included with the appliance WEIGHT (KG) 11.5 14.5 17.5 20.5 Non contractual document Edition 04/2002 – EN236 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 24: Location Of The Identification Plate

    In any correspondence about your equipment please quote: - The model number (Model.) - The serial number (Fab.Nr.) - The date (Date). Identification plate Location of the identification plate BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 25: Installation: General Features

    2.3 UNPACKING Before installation, remove the strapping from the appliance. The individual parts are not bolted down. Remove plastic film from the stainless steel parts before heating. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 26: Access To Components Behind The Front Facia

    - It is possible to hook the facia on the unit in the open position. To re-assemble, reverse the above operations. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 27: Installation: Positioning

    - The required hole for such rawlplugs should be 12mm diameter and 72mm deep (NOTE: the minimum distance between a rawlplug hole and any edge of the wall must be at least 95mm). BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 28 - Adjust the level front to rear using the lower screws. Screws LEVEL - Tighten and fit the lock nuts. - Follow the same proceedure for subsequent units. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 29 - Put units on stands as per the following table Table of sizes 1000 1500 2000 Length A 1380 1880 Length B BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 30 16 bolt + a 5mm ø washer . - Having first removed the front facia (see section 2) connect using 2 HM5 16 bolts + 5mm ø washers. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 31 - Fix unit to the stand at the front and back using four HM5 x 10mm bolts + 5mm Ø washers. Cage nuts are fixed to the bottom of the unit. Fixing holes BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 32 16 bolt + a 5mm ø washer . - Having first removed the front facia (see section 2) connect using 2 HM5 16 bolts + 5mm ø washers. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 33: Cooking Units

    - Repeat for each item to be fitted on the common leg frame. - At the front units should be secured to the leg frame using two HM 5 x 16 bolts + 5mm Ø washers. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 34 16 bolt + a 5mm ø washer. - Having first removed the front facia (see section 2) connect using 2 HM5 16 bolts + 5mm ø washers. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 35 Place the clamp opposite the slots. b) Tighten manually as far as possible. c) Finish tightening with HM5 x 60 bolts. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 36 2) A 500mm technical cupboard with any type of cooking or neutral top possible, except Induction. 3) Technical compartment at the end of the suite (250 wide) with neutral top (access door in the end). BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 37 2) A 500mm technical cupboard with any type of cooking or neutral top possible, except induction. 3) Technical compartment at the end of the suite (250 wide) with neutral top (access door in the end). BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...
  • Page 38 - Fix the aeration vents to the extremity of plinth ( 2 screws). NOTE: The plan above represents a wall plinth. In the case of a central plinth, the plinth is symmetrical, assembly remains unchanged. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...

  • Page 39: Installation: Connection

    3 x 2.5 mm 4 x 2.5 mm 5 x 2.5 mm Table top French fry store in 500 3 x 2.5 mm BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...
  • Page 40 (earth continuity bonding) to the equipotential terminal located next to the connection cable gland. The manufacturer cannot be held responsible in the event that these instructions are not respected. BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 41: Water Connection

    4.3 DRAIN CONNECTION - Discharge hose diameter 22 mm. - Collection pipework in 50 mm plastic. Cooking top Cooking unit Max 160 Min 110 BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans 77292 MITRY MORY Cedex...

  • Page 42: Width

    Note: It is possible to fix the drain pipework to the underside of the units, this can be useful for an island suite. Fixing drain pipe to the equipment BONNET CIDELCEM GRANDE CUISINE Siége social: Rue des Frères Lumière - Z.I Mitry Compans...
