Summary of Contents for Renishaw RGA22

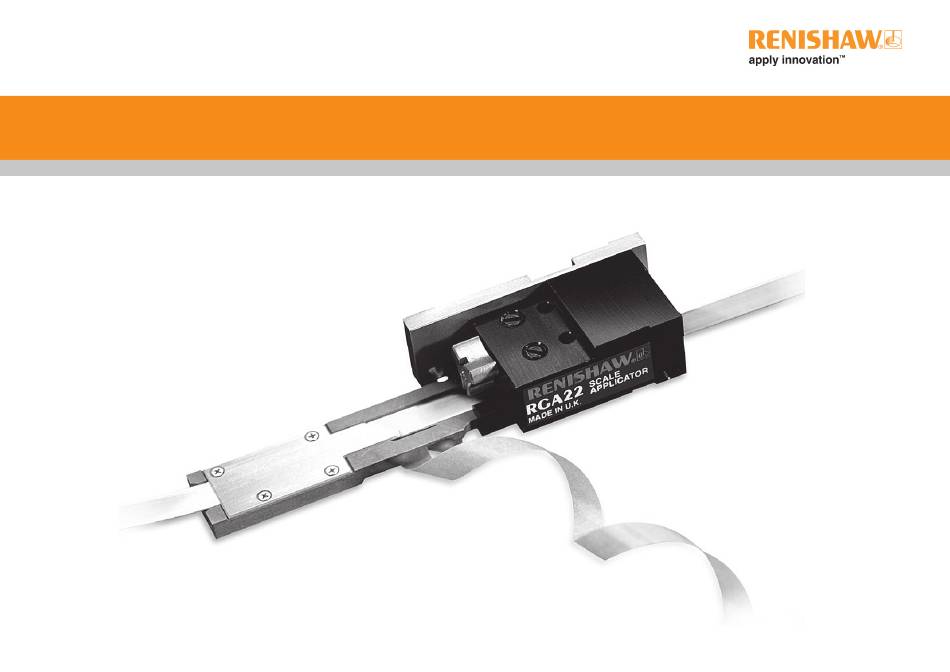

- Page 1 User’s guide M-9531-0297-05-A RGA22 scale applicator RSLM high accuracy linear encoder...
-
Page 2: Table Of Contents
Considerable effort has been made to ensure that the contents of this document are free from inaccuracies Introduction and omissions. However, Renishaw makes no warranties with respect to the contents of this document and specifically disclaims any implied warranties. Renishaw reserves the right to make changes to this document and... -
Page 3: Rga22 Scale Applicator Kit
Plunger release 1.5 Tools and accessories knob Retracted Shears are supplied to cut the scale to length prior to application. Scale A 2.5 mm hexagon key and appropriate adaptor mounting screws are also included. guide Released Figure 1a RGA22 Scale applicator... -
Page 4: Section 2 Scale Installation Procedure
To lay the scale at a given position using the extension handle as shown. Do not use excessive torque as this RGA22 applicator, it is necessary to set the could damage the scale guide or scale face. machine bracket, on which the readhead mounts, at the appropriate offset given in 2.1 above,... -
Page 5: Scale Application
4. If fitted, release the scale lock by backing off the extension handle one turn minimum. 9. Carefully remove applicator head and place all applicator components in the protective case There is no need to remove the handle. supplied for storage. 5. -
Page 6: Section 4 Maintenance
The splitter blade is not sharp and therefore will not require routine maintenance. Using a low power magnifier inspect the blade for nicks and burrs that could cause tearing of the release paper. If any such damage is detected, the complete applicator should be returned to Renishaw for overhaul. - Page 7 © 1997-2019 Renishaw plc. All rights reserved. Renishaw reserves the right to change specifications without notice. RENISHAW and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United Kingdom and other countries. Part no.: M-9531-0297-05-A apply innovation and names and designations of other Renishaw products and technologies are trade marks of Renishaw plc or its subsidiaries.
