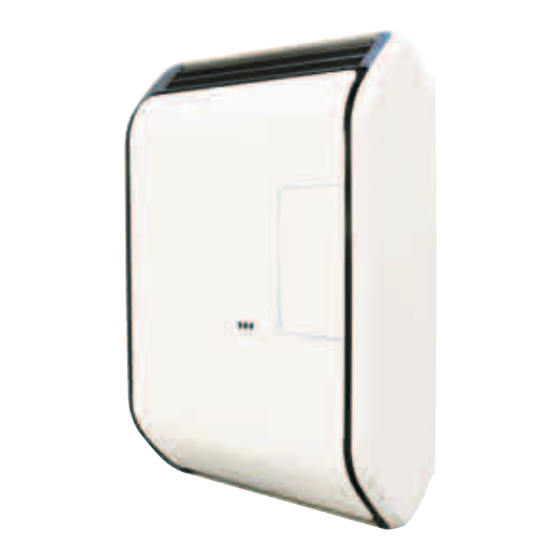

Italkero ECO SC User

Wall gas stoves
Hide thumbs
Table of Contents

Advertisement

Quick Links

SC
SV, SE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Italkero ECO SC

Summary of Contents for Italkero ECO SC

  • Page 1 SV, SE...

  • Page 2: Table Of Contents

    Contents Basic safety rules Page General information “ 6 Getting to know your convection heater “ 8 Using the convection heater - commissioning “ 10 - setting the clock and timer “ 14 - setting the room thermostat “ 15 Prolonged disuse “...
  • Page 3 You can also stipulate a Scheduled Service Contract, which will cost you less in case of need. This instruction booklet is intended to provide you with important information; please follow these instructions when using your convection heater. Thank you again for choosing ITALKERO.
  • Page 4 Your convection heater is covered by a WARRANTY which runs from the date of certification by your local Technical Service Centre, available on our website or by phoning the manufacturer directly. Please contact the Technical Service Centre, which will provide the following FREE SERVICES •...

  • Page 5: Basic Safety Rules

    bASIC SAFETY RulES When using a product with combustion Do not touch the convection heater when or electrical energy, always follow basic barefoot, or when wet. safety precautions to reduce the risk of injury. Read this manual carefully to Do not touch the grille when hot air is learn its use and limitations as well as coming out of it.

  • Page 6: General Information

    GENERAl WARNINGS This booklet is an integral part of The convection heater must be the appliance and must be kept installed by a technician qualified carefully and ALWAYS accompany the pursuant to Italian Law 5 March 1990 convection heater when it is handed on n°...
  • Page 7 GAS CONVECTION HEATER, TYpE C, SEAlEd CHAmbER, FOR HEATING. ECO SC ECO SV ECO SE...

  • Page 8: Getting To Know Your Convection Heater

    GETTING TO KNOW YOuR CONVECTION HEATER It is a standalone gas appliance, with atmospheric burner, high performance, suited for room heating It has a Type C combustion circuit with sealed combustion chamber, totally isolated from the room in which it is installed, for unbeatable occupant safety.
  • Page 9 ECO SC / SV 1) Ignition/command knob. 2) Timer (24 h). 3) Pressure regulator screw. 4) Timer function selector: -- clock: timer mode (programmable). -- hand: room thermostat controlled operation. -- zero: appliance shut down, only the clock still runs.

  • Page 10: Commissioning

    COmmISSIONING WARNING! Do not touch the fins hot air outlet to avoid serious burns. The heater must be commissioned by technical service, after which the user can operate it as he wishes: manual or automatic, thermal power from MIN to MAX, with the fan on or off.
  • Page 11 ECO SC / SV • Position the Timer switch to manual (if present); • Turn the heater on: - Turn the thermostat knob to 7 (maximum setting) - Hold down the ignition/command knob and turn it 1/4 turn counterclockwise; keep holding it down and turn it from OFF to ignition (spark) and pilot (small flame);...
  • Page 12 ECO SE • Set the Timer switch to manual; • Press the heating power selector button: - MIN = minimum power - MAX = maximum power • Turn on the master switch on the control panel (the power led turns on). The heater will start up and will run until it reaches the set room temperature (the operating led on the control panel will go...
  • Page 13 • Once the heater is running, set the clock to the local time and the timer for automatic operation (see the timer instructions) • To run the heater in automatic mode, simply set the function selector, if present, to timer...

  • Page 14: Setting The Clock And Timer

    SETTING THE ClOCK ANd TImER (if present) First set the time, and then the periods during which the heater will be on and off. • To set the local time: Turn the clock dial (clockwise only) until the local time matches the indicator on the control panel.

  • Page 15: Setting The Room Thermostat

    SETTING THE ROOm THERmOSTAT You may need to adjust the room temperature setting in relation to the outdoors temperature. Simply set the room thermostat by moving the knob towards MAX to increase the setting or MIN to reduce it. Once the new setting is done, wait for the heater to complete a cycle and check whether you have achieved the desired temperature comfort in the room.

  • Page 16: Prolonged Disuse

    lONG pERIOdS OF dISuSE If the convection heater is not used for a long time, the following procedure must be completed: • SC/SV - Set the ignition/command knob to “0” (if present); • SE - Set the function selector to 0 (if present);...

  • Page 17: Cleaning

    ClEANING mAINTENANCE The only part of the heater which requires Please note that ROUTINE cleaning by the user is its jacket. MAINTENANCE is critical to keeping the heater safe, efficient, reliable and Before doing so: long-lasting. • set the master switch on the control This should be done, once a year before panel to OFF, set the master switch of the the cold season, by the manufacturer's...

  • Page 18: Troubleshooting

    TROublESHOOTING Eco SC / SV Eco SE • No electrical power: • No electrical power: If the power led does not turn on when If the power led does not turn on when you press the fan switch, check that the...
  • Page 19 NOTES...
