Summary of Contents for Wido WD030520013

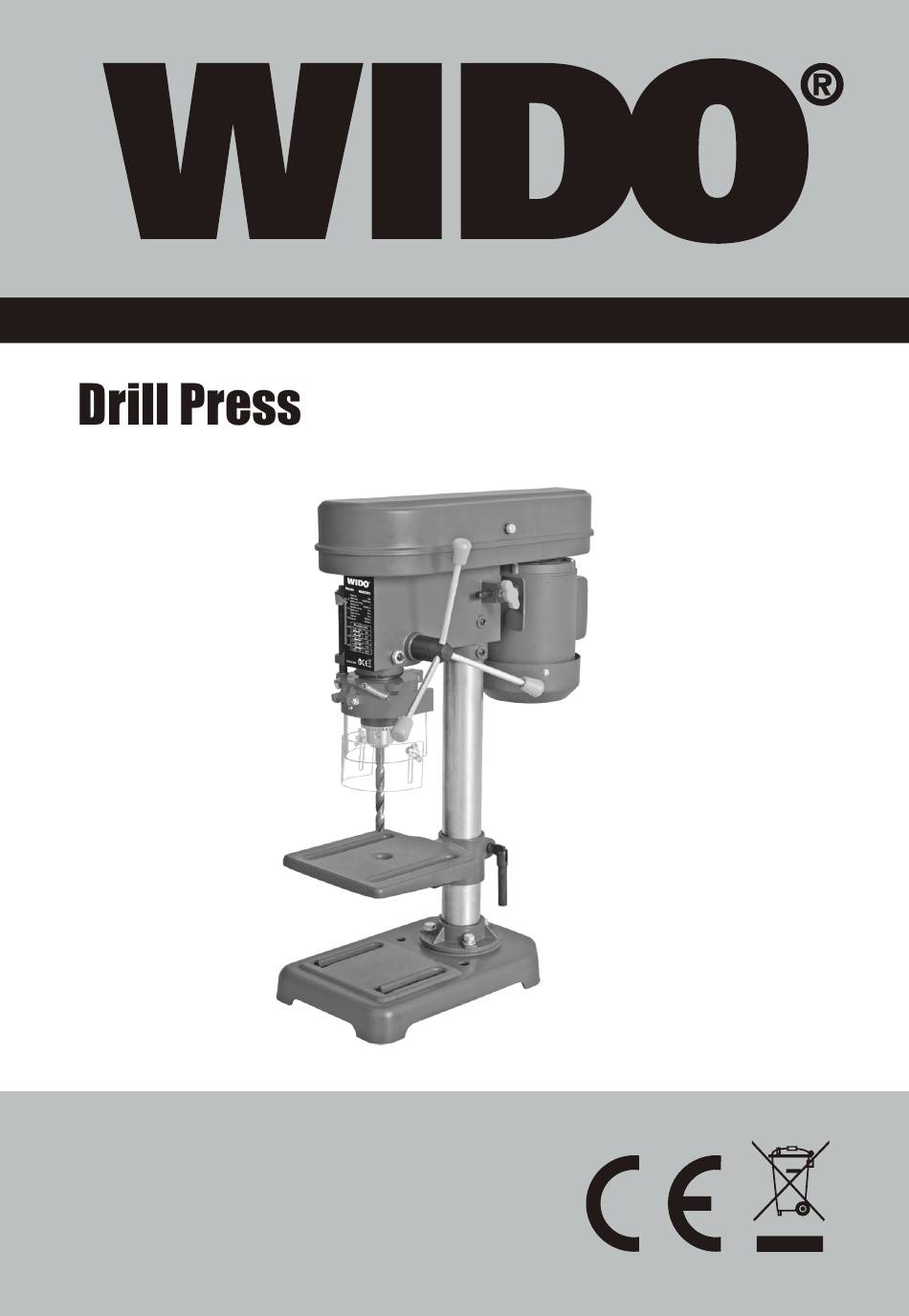

- Page 1 WD030520013 350W...
- Page 2 WD030520013 Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD030520013...
- Page 4 WD030520013 13mm...
-
Page 5: Component List
13MM DRILL PRESS COMPONENT LIST 1) Base plate 2) Mounting holes 3) Work table 4) Drill chuck 5) Guard 6) Nameplate 7) Depth stop 8) ON/OFF switch 9) Spring housing Pulley cover 11) Screw of pulley cover 12) Tension lock knob 13) Motor unit Pinion shaft 15) Feed handle... -
Page 6: General Power Tool Safety Warnings
13MM DRILL PRESS GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 7 13MM DRILL PRESS f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 8 13MM DRILL PRESS 7) Keep the work area clean at all times. Cluttered areas around the machine can cause unexpected accidents if the debris comes in contact with the moving parts of the machine. 8) Keep the working surface clean to the workpiece being worked. Sharp-edged drilling chips/swarf and objects can lead to injuries.
-
Page 9: Grounding Instructions
13MM DRILL PRESS work area. 25) Thoroughly clean the machine before changing types of workpieces. Combining wood and metal dust can result in an explosion or fire. Consult expert advice before drilling in work pieces made of magnesium. The friction generated by the drill bit could the magnesium to ignite resulting in a very intense fire that could cause severe burns to the operator and/or seriously damage the machine. -
Page 10: Technical Data
Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice TECHNICAL DATA Model WD030520013 Voltage 110-120V AC 220-240V AC Frequency 60Hz... - Page 11 13MM DRILL PRESS OPERATING INSTRUCTIONS Note: Before using the power tool, read the instruction manual carefully. 1. Intended use The machine is intended for drilling in wood, metal, and plastic etc. 2. Assembly Installing the column assembly to the base: a) Place the base on a firm level surface.
- Page 12 13MM DRILL PRESS 2) Inserting the smooth end of the drill bit into the chuck as far as it will go. 3) Ensure the drill bit is centered in the chuck jaws before tightening. 4) Use the chuck key and tighten the chuck locking the drill bit in place (See Fig Note: Lock all three jaws in the chuck, so it doesn’t slip while drilling.
- Page 13 13MM DRILL PRESS 8) Close the pulley cover, using a screwdriver, screwing the screw on the pulley cover. Reference list of drill, revolution and various materials to be drilled: Material Drill Dia (mm) Steel Cast iron Gun metal Aluminium Plastic Wood Rotate speed (min-1) Ф3...
-
Page 14: Maintenance
13MM DRILL PRESS Use a clamping device, secure the workpiece to the work table. To protect the top surface of the workpicec, use a piece of scrap wood between the vise and the workpiece (See Fig 16). Select the proper drill bit based on the holes size desired. For large holes, drill a pilot holes first, using a smaller diameter bit. -
Page 15: Troubleshooting
13MM DRILL PRESS TROUBLESHOOTING Problem Possible Cause Solution Noisy operation Incorrect belt tension Adjust belt tension. Dry spindle Lubricate spindle. Loose spindle pulley or motor Tighten set screws in pulleys. pulley. Bit burns or smokes Incorrect speed. Change speed. Chips not coming out of hole. Retract bit frequently to clear chips Dull bit. -
Page 16: Explosive View
13MM DRILL PRESS EXPLOSIVE VIEW... -
Page 17: Part List
13MM DRILL PRESS PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Base Circlip Base collar Bush Washer Circlip Spring washer Bearing Bolt Baffle Knob of feed handle Cable and plug Feed handle Pinion shaft Spring housing Column Disk spring Socket head screw Screw Locking knob of belt tension Round pin... - Page 18 WD030520013...
- Page 19 WD030520013...
- Page 20 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
