OilSET-1000 Oil Separator Alarm Device
Installation and Operating Instructions
2
INSTALLATION
2.1
OilSET-1000 control unit
Copyright © 2019 Labkotec Oy
OilSET-1000 control unit can be wall-mounted. The mounting holes are
located in the base plate of the enclosure, beneath the mounting holes
of the front cover.
The connectors of the external conductors are isolated by separating
plates. The plates must not be removed. The plate covering the
connectors must be installed back after executing cable connections.
The cover of the enclosure must be tightened so, that the edges touch
the base frame. Only then do the push buttons function properly and
the enclosure is tight.
Before installation, please read the safety instructions in chapter 6 !

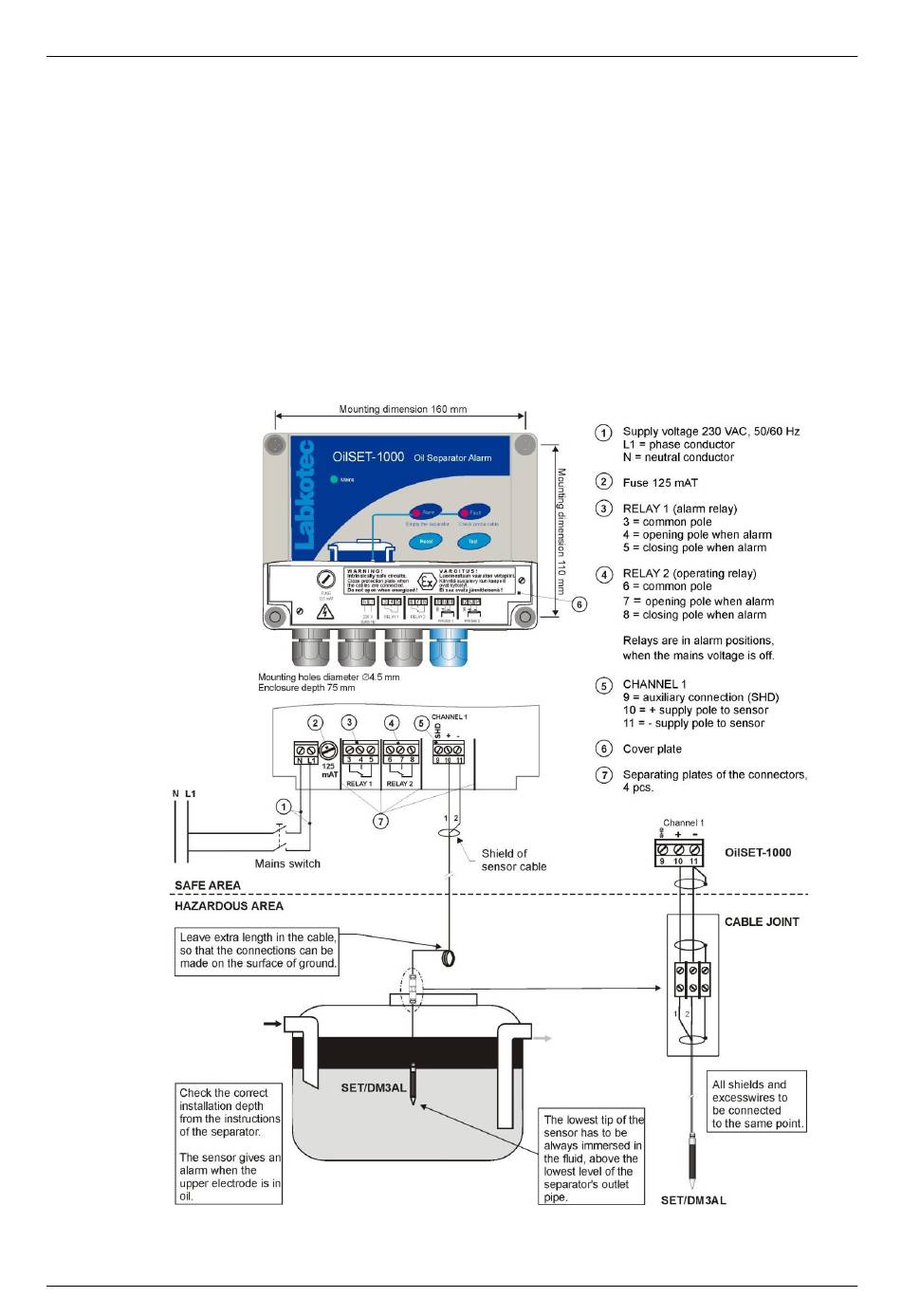

Figure 3. OilSET-1000 alarm device installation.
4/13
We reserve the right for changes without notice
D15492AE-2
