Details Eyesite FPCL Installation Instructions

Replacement of an dual monitor mount with a laptop mount

Download this manual

Page 1 of 4

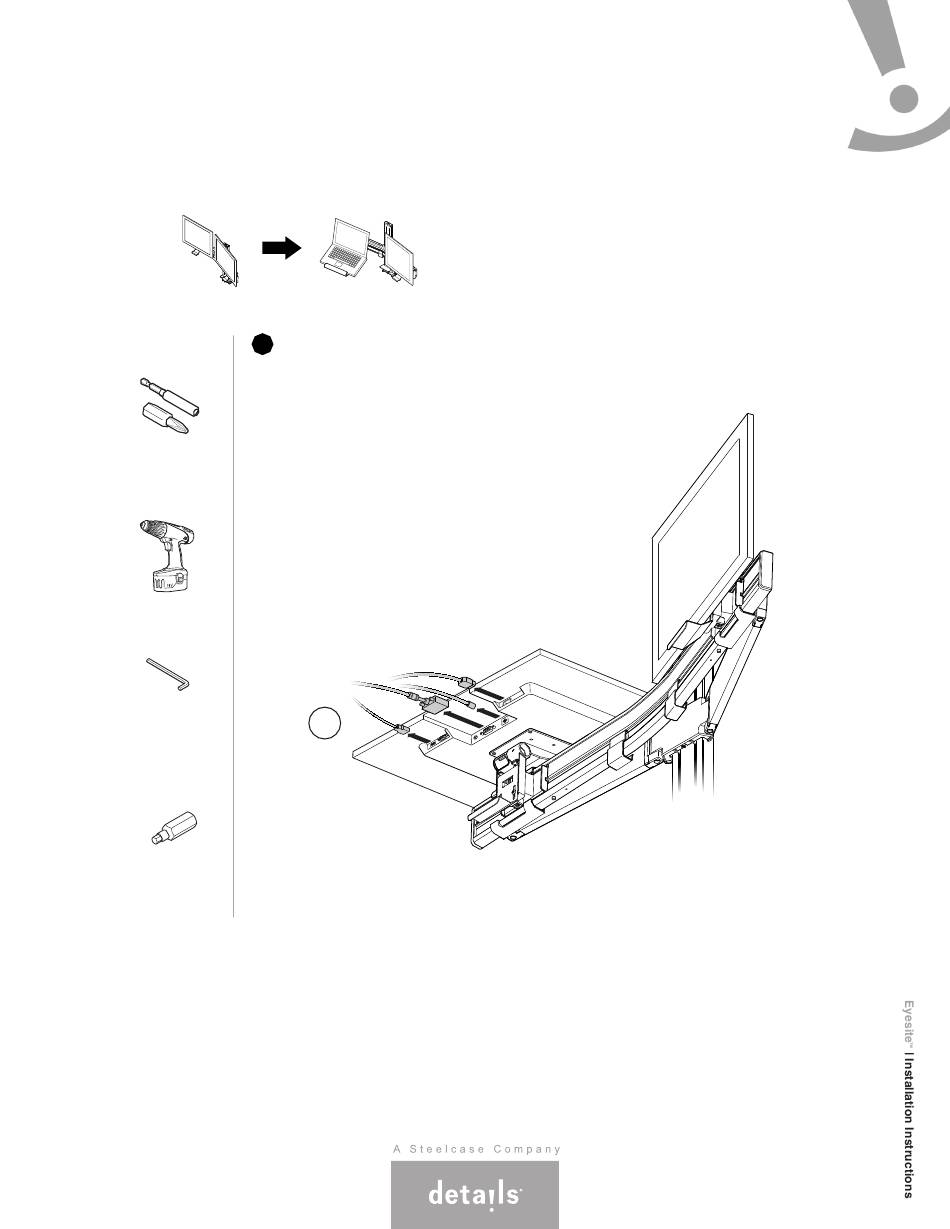

Replacement of an Eyesite Dual

Eyesite

Monitor Mount with a Laptop Mount

™

Installation Instructions 20467301 Rev A

FPCL

Tools required:

With monitor tilted back 90 degrees, remove all

necessary cables from monitor. Once all cables

are removed from monitor, tilt monitor back to

original position.

#2 Phillips

Screwdriver

Power Drill

5/32" Allen Wrench

(provided)

1/16" Allen Wrench

(not provided)

5/32"

HEX DRIVE

Need help?

Do you have a question about the Eyesite FPCL and is the answer not in the manual?

Page 1 Page 1 of 4 Replacement of an Eyesite Dual Eyesite Monitor Mount with a Laptop Mount ™ Installation Instructions 20467301 Rev A FPCL Tools required: With monitor tilted back 90 degrees, remove all necessary cables from monitor. Once all cables are removed from monitor, tilt monitor back to original position.
Page 2 Page 2 of 4 20467301 Rev A Open monitor mount bracket assembly cover (2a). MONITOR MOUNT To release monitor mount, you ASSEMBLY must turn set screw to the left MONITOR MOUNT and loosen using a 1/16" Allen BRACKET ASSEMBLY wrench (2b). COVER Slide monitor mount assembly from monitor mount bracket...
Page 3 Page 3 of 4 20467301 Rev A Remove components as shown (4a) Remove existing monitor mount rail assembly (4b). Slide tray assembly into rail (4c). Re-install plate, screws and cap (4d). When installing the screws, insert screws oblong holes in plate making sure the screws are against the bottom of the oblong holes...
Page 4 & from the user to minimize eye strain. For further information, please go to the Details website details-worktools.com or call 800.833.0411 P.O. Box 1967 / CD-5E Grand Rapids, MI 49501-1967 ©2010 Steelcase Inc. All rights reserved. 6/10...
