Smart Powerboard

User Guide

info@tempo.org

1300 886 649

Model: ASPBU-1019 Product Code: 12741 10/2019

AUS

Table of Contents

Need help?

Do you have a question about the Smart Powerboard ASPBU-1019 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bauhn Smart Powerboard ASPBU-1019

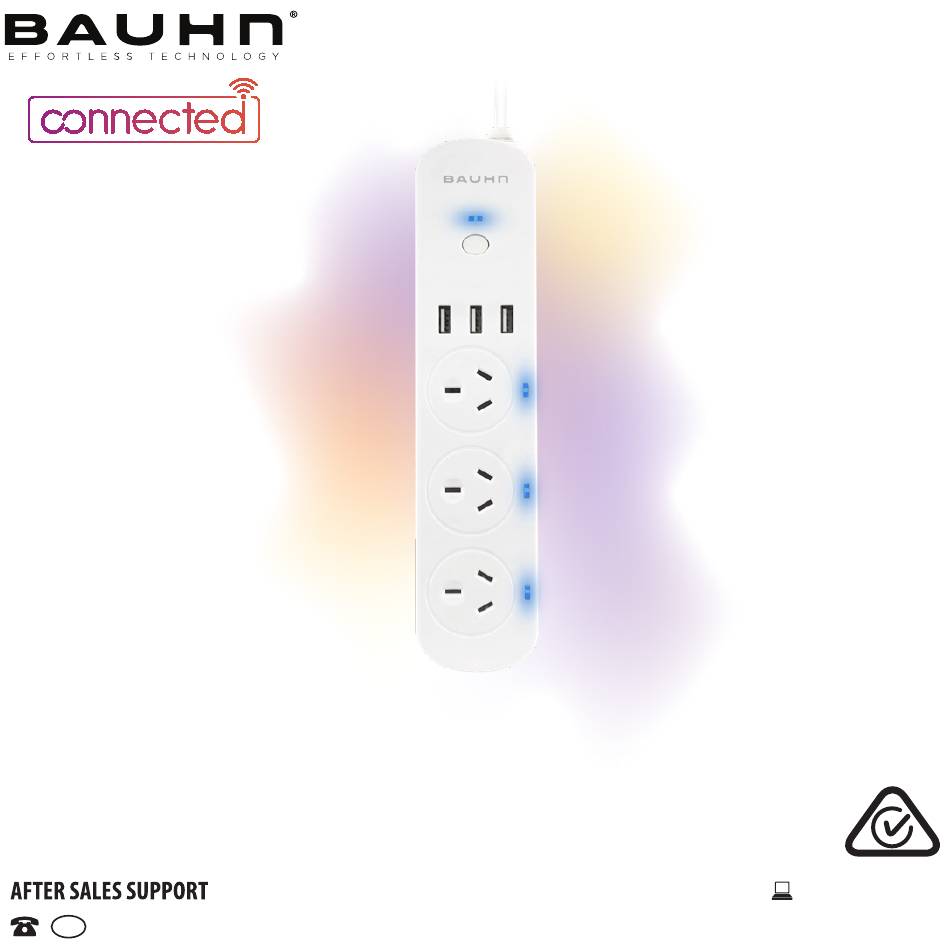

Page 1 Smart Powerboard User Guide info@tempo.org 1300 886 649 Model: ASPBU-1019 Product Code: 12741 10/2019...
Page 2: Welcome
Welcome Congratulations on choosing to buy a BAUHN® product. All products brought to you by BAUHN® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Page 3: Table Of Contents
Contents Welcome General Safety Instructions Product Overview Installation and Setup Troubleshooting Specifications Warranty Information Repair and Refurbished Goods or Parts Notice info@tempo.org 1300 886 649 Model: ASPBU-1019 Product Code: 12741 10/2019...
Page 4: General Safety Instructions
General Safety Instructions Read this user guide thoroughly before first use. These safety precautions reduce the risk of fire, electric shock and injury when correctly adhered to. This product complies with Australian Safety standard AS/NZS 60950 to ensure the safety of the product. The RCM is a visible indication of a product’s compliance with all applicable ACMA regulatory arrangements, including all technical and record-keeping requirements.
Page 5 General Safety Instructions (Cont.) experience and knowledge, unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety. • Children: Young children should be supervised to ensure they do not play with the equipment. Close supervision is always necessary when any electrical equipment is used by or near children.
Page 6: Product Overview
Product Overview Power Cable LED status Power outlet indicator indicator Overload Power USB Ports Power outlets protector button Note: The USB ports are not controlled by the power button, and will be always on. info@tempo.org Model: ASPBU-1019 Product Code: 12741 10/2019 1300 886 649...
Page 7: Installation And Setup
Installation And Setup Download App Search and download ‘TuyaSmart’ from the App Store or Google Play. Alternatively you can scan the QR code below to download the App. iOS App Store Google Play Store Login/Access The first time you use the TuyaSmart app, you need to register a Tuya account using your email address.
Page 8 Installation And Setup (Cont.) Adding Devices Click ‘Add Device’ or ‘+’ at the top-right corner of the App homepage to enter the Add Device page. In the Electrical Engineering tab, select ‘Socket’. Plug in the Smart Plug to an AC socket, then press and hold the power button until the indicator light flashes rapidly.
Page 9 “Go to Connect” button where the Wi-Fi settings page of your smart device. In the Wi-Fi setting page of your smart device, select “BAUHN Smart Plug-xxxx” to connect to it. Return to the TuyaSmart app and follow the on-screen instructions.
Page 10 Installation And Setup (Cont.) Sharing a Device You can share access to your device with family members, if they have a TuyaSmart account. To share access, click the edit icon on the top-right corner on the control screen, then select ‘Share Device’ > ‘Add Sharing’ and enter the user’s account. That account will also be able to control the Smart Plug from their smart phone or Google/Alexa devices.
Page 11 Installation And Setup (Cont.) Connecting to Alexa In your Amazon Alexa app, log in to your Amazon account. Select the ‘Devices’ page, then tap on “YOUR SMART HOME SKILLS”, then tap on “ENABLE SMART HOME SKILLS” button and search for “Tuya Smart.”...
Page 12 Installation And Setup (Cont.) Smart features: Automation and Scheduling • You can name the 3 outlets and control them individually (default names for the outlets are Outlet 1, Outlet 2 and Outlet 3.) You can also control them as a whole (default name for the overall control is Smart Powerboard.) •...
Page 13 Installation And Setup (Cont.) Reset the Powerboard This Smart Poweboard has overload protection built-in. When the total load of the outlets exceeds the maximum rated load, the Smart Powerboard will safely cut power for all 3 outlets. In this case, you will need to reset the Powerboard. Press the reset button on the overload protector to reset.
Page 14: Troubleshooting
Troubleshooting Problem Solution • Check the device is switched on. • Your phone needs to be connected to a 2.4G Wi-Fi network, so you may need to turn off 5G on the router. The plug is not pairing/ • Make sure the Wi-Fi network is connecting with my device connected to the internet.
Page 15: Specifications
Specifications Power input AC 240V, 50Hz, 10A USB output DC 5V, Total 3.1A Max. Total outlet load Max 2400W Version Date 10/2019 info@tempo.org 1300 886 649 Model: ASPBU-1019 Product Code: 12741 10/2019...
Page 16: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
Page 17: Repair And Refurbished Goods Or Parts Notice
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
Page 18 Notes info@tempo.org Model: ASPBU-1019 Product Code: 12741 10/2019 1300 886 649...
Page 19 Notes info@tempo.org 1300 886 649 Model: ASPBU-1019 Product Code: 12741 10/2019...
Page 20 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 886 649.
