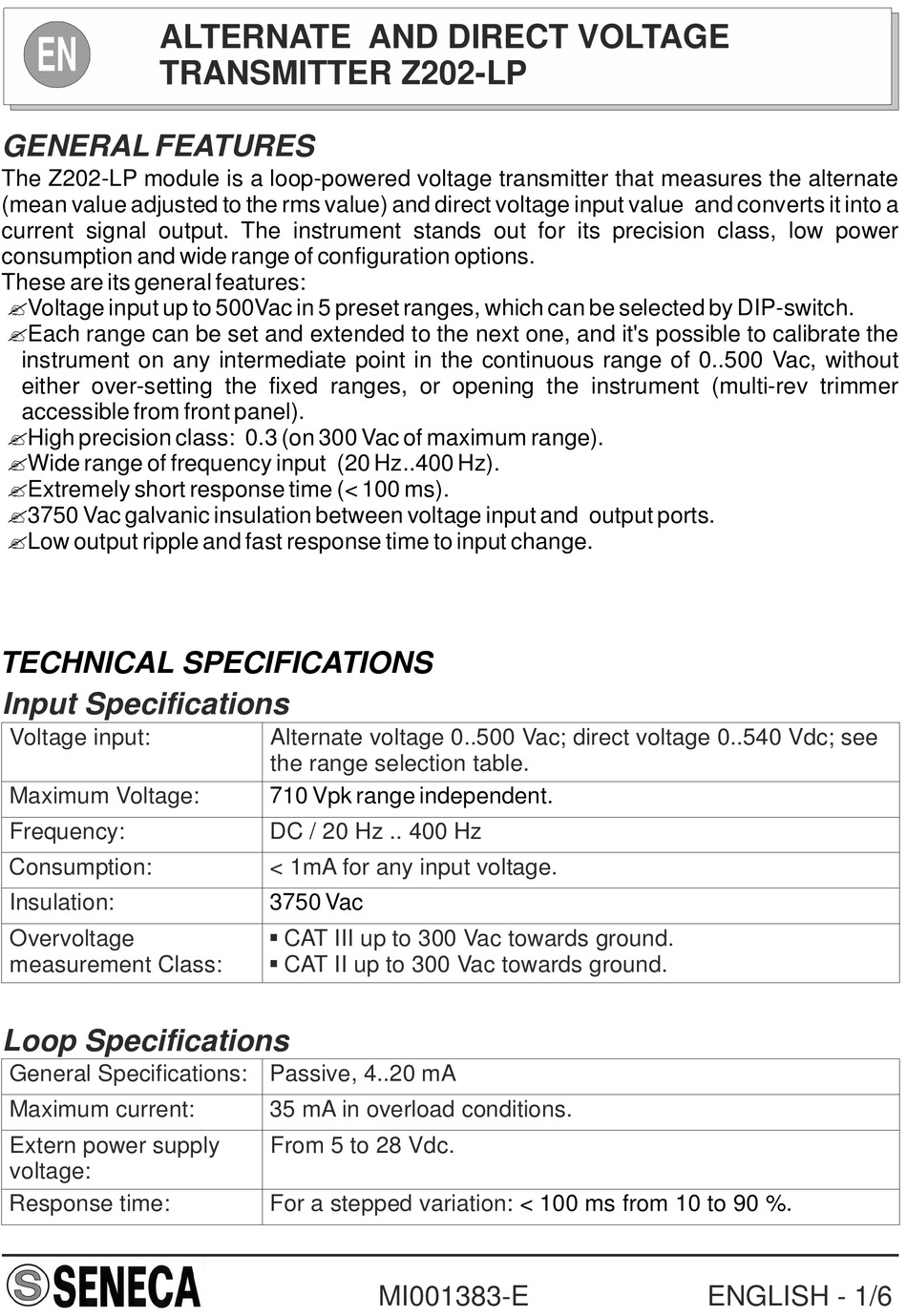

ALTERNATE AND DIRECT VOLTAGE
EN
TRANSMITTER Z202-LP

GENERAL FEATURES

The Z202-LP module is a loop-powered voltage transmitter that measures the alternate
(mean value adjusted to the rms value) and direct voltage input value and converts it into a
current signal output. The instrument stands out for its precision class, low power
consumption and wide range of configuration options.
These are its general features:
Voltage input up to 500Vac in 5 preset ranges, which can be selected by DIP-switch.
Each range can be set and extended to the next one, and it's possible to calibrate the
instrument on any intermediate point in the continuous range of 0..500 Vac, without
either over-setting the fixed ranges, or opening the instrument (multi-rev trimmer
accessible from front panel).
High precision class: 0.3 (on 300 Vac of maximum range).
Wide range of frequency input (20 Hz..400 Hz).
Extremely short response time (< 100 ms).
3750 Vac galvanic insulation between voltage input and output ports.
Low output ripple and fast response time to input change.

TECHNICAL SPECIFICATIONS

Input Specifications

Voltage input:
Maximum Voltage:
Frequency:
Consumption:
Insulation:
Overvoltage
measurement Class:

Loop Specifications

General Specifications: Passive, 4..20 mA
Maximum current:
Extern power supply
voltage:
Response time:
Alternate voltage 0..500 Vac; direct voltage 0..540 Vdc; see
the range selection table.
710 Vpk range independent.
DC / 20 Hz .. 400 Hz
< 1mA for any input voltage.
3750 Vac
 CAT III up to 300 Vac towards ground.
 CAT II up to 300 Vac towards ground.
35 mA in overload conditions.
From 5 to 28 Vdc.
For a stepped variation: < 100 ms from 10 to 90 %.
MI00138 -E 3 ENGLISH - 1/6
