Page 1

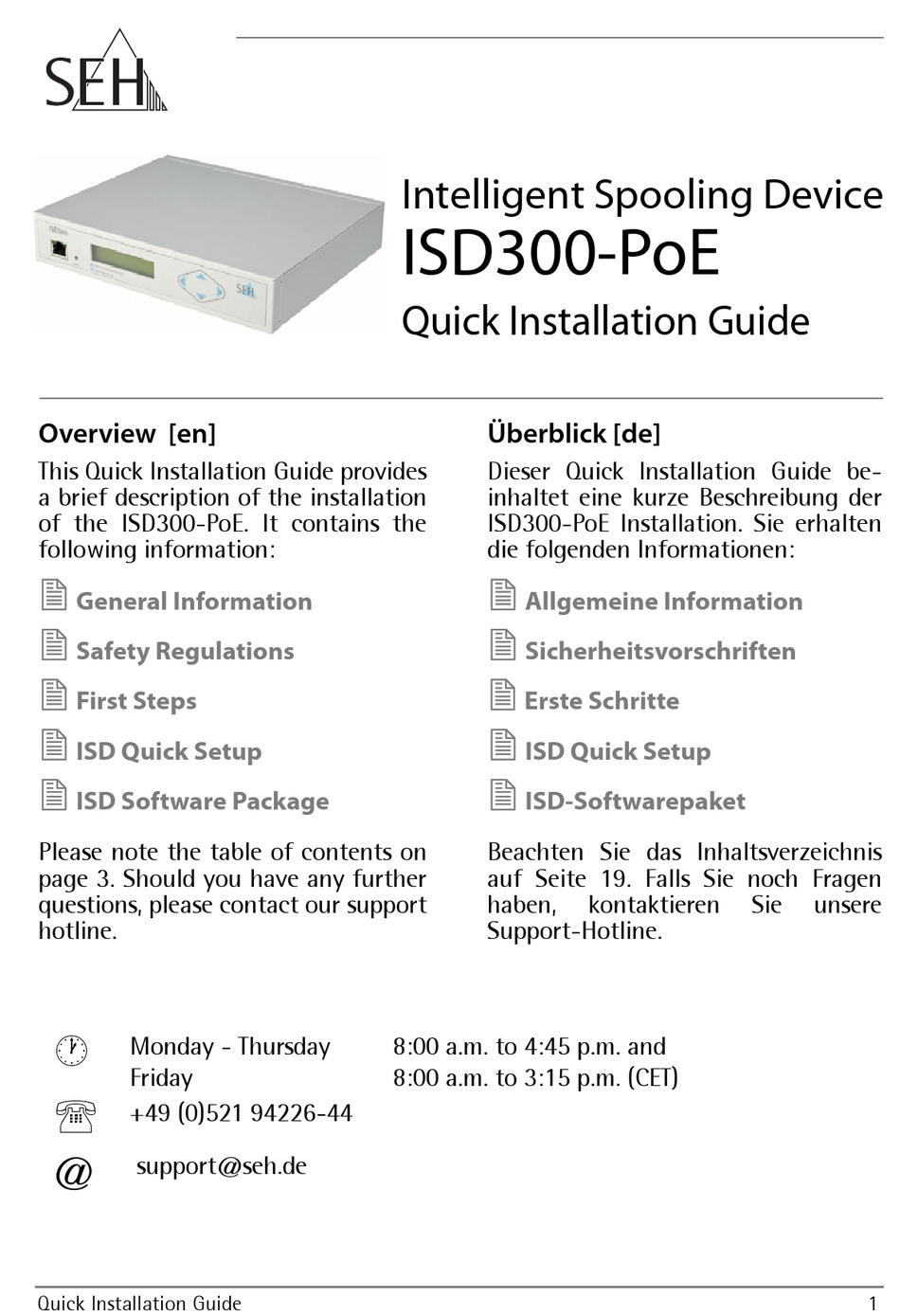

Überblick [de] This Quick Installation Guide provides Dieser Quick Installation Guide be- a brief description of the installation inhaltet eine kurze Beschreibung der of the ISD300-PoE. It contains the ISD300-PoE Installation. Sie erhalten following information: die folgenden Informationen: General Information...
Page 2
Date of Manufacture The serial number includes the date of manufacture. The serial number can be found on the type plate. Quick Installation Guide...
General Information Purpose The ISD300-PoE was developed to spool and manage print jobs and to handle print queues. In complex networks with high volumes of data traffic and in large-scale structures, the ISD300-PoE can substantially relieve server load and remove strain from the network.
The service area is a defined memory area on the ISD hard disk. The service area contains: - ISD300 User Manual - Quick Installation Guide ISD300-PoE (this document) - SEH ISD Manager - SEH Print Monitor - ISD Printer Driver Wizard...
Do not open the housing of the device. The ISD300-PoE may only be connected and operated if the housing is not opened and if the ISD300-PoE is in perfect condition. Do not put objects on top of the housing.
First Steps Connecting the ISD300-PoE Proceed as follows: 1. Connect the network cable (RJ-45) to the network connector (2). 1) Activity LED (yellow): 1234 The LED indicates the exchange of network data packages. 2) Network connector (RJ-45 connector) 3) Link LED (green):...
Switching the ISD300-PoE On/Off Switching the Device On The ISD300-PoE system software boots automatically if the device receives the power it needs. The power supply can be started by plugging in the network cable or by turning on the PoE device (device that is used to supply power to the ISD300-PoE).
ISD300-PoE Assigning TCP/IP Parameters TCP/IP network protocols require the storing of the IP address in the ISD so that the device can be addressed within the network and be configured via the ISD Control Center. You can assign the TCP/IP parameter manually or have it assigned automatically via DHCP (Dynamic Host Configuration Protocol).
Page 11
9. Press to confirm. The display shows: > Apply < Back 10. Press to confirm. The display shows: Applying Network Settings ... The settings will be saved. Assigning TCP/IP Parameters Automatically (DHCP) Make sure that: - An active DHCP server is integrated into the network. Use the navigation keys at the front of the device to assign the TCP/IP parameters via DHCP.
Using the ISD Control Center The ISD Control Center is a user interface for the administration of the ISD. The ISD Control Center is stored in the ISD and can be displayed on a client by means of an Internet browser (Internet Explorer, Firefox, Safari). Make sure that: - The ISD is connected to the network and was booted.
Page 13
Logging on to the ISD Control Center After starting the ISD Control Center a 'login' dialog appears. The access to the ISD Control Center is granted to the user profiles ’Any’, ’User’, and ’Admin’ . You will also need a password. The table shows which access rights are assigned to the different user profiles.
ISD Quick Setup The 'Quick Setup' assists you with the initial configuration. The Quick Setup involves four steps: the configuration of the host name and device time, the configuration of the TCP/IPv4 parameters and DNS server, the search for available printers in the network, and the setting up of queues.
Page 15
7. Define search parameters for the search for printers in the network. You can search a maximum of 255 IP addresses. 8. Click Next. The number of the printers found in the network is displayed. 9. Click OK to confirm. The printer list is displayed.
Windows operating system. The software ensures the transfer of unencrypted and encrypted (SSL/TLS) print data from the client to the ISD by means of direct TCP/IP ports. The SEH Print Monitor can be installed on every client intended for printing.
Allgemeine Informationen Verwendungszweck Das ISD300-PoE wurde für das Spoolen und Managen von Druckaufträgen sowie die Verwaltung von Druckerwarteschlangen (Queues) entwickelt. Das ISD300-PoE trägt in komplexen Netzwerken mit hohen Datenaufkommen oder weitläufigen Strukturen zu einer starken Entlastung des Servers und ggf. des Datennetzes bei.
Service-Area Die Service-Area ist ein definierter Speicherbereich auf der ISD- Festplatte. Die Service-Area beinhaltet: - Benutzerdokumentation ISD300 - Quick Installation Guide ISD300-PoE (dieses Dokument) - SEH ISD Manager - SEH Print Monitor - ISD Printer Driver Wizard - Driver Wizard Plugin 'CSR DLL' Service-Area anzeigen Die Service-Area kann über das ISD Control Center angezeigt werden.
Lesen Sie die Dokumentation und stellen Sie sicher, dass Ihr System den aufgeführten Anforderungen entspricht. Öffnen Sie nicht das Gehäuse des Gerätes. Das ISD300-PoE darf nur bei ungeöffne- tem Gehäuse und in unversehrtem Zustand angeschlossen und betrieben werden. Stellen Sie keine Gegenstände auf das Gehäuse.
Erste Schritte ISD300-PoE anschließen Gehen Sie wie folgt vor: 1. Verbinden Sie das Netzwerkkabel (RJ-45) mit dem Netzwerkanschluss (2). 1) Netzwerk-Aktivität-LED (gelb): 1234 Die LED signalisiert den Austausch von Netzwerkdatenpaketen. 2) Netzwerkanschluss (RJ-45-Stecker) 3) Link-LED (grün): Die LED signalisiert eine (physische) Vorderansicht Verbindung zum Netzwerk.
ISD300-PoE ein-/ausschalten Gerät einschalten Die ISD300-PoE-Systemsoftware fährt automatisch hoch, nachdem das Gerät mit Strom versorgt wird. Die Stromversorgung kann durch das Einstecken des Netzwerkkabels oder nach dem Einschalten des PoE-Gerätes (Gerät, über das das ISD300-PoE mit Strom versorgt wird) gestartet werden.
ISD300-PoE TCP/IP-Parameter zuweisen Im Rahmen des TCP/IP-Netzwerkprotokolls ist es erforderlich, eine IP-Adresse im ISD zu speichern, damit das Gerät im Netzwerk angesprochen und über das ISD Control Center konfiguriert werden kann. Sie können die Parameter sowohl manuell zuweisen als auch automatisch über das DHCP (Dynamic Host Configuration Protocol) zuweisen lassen.
Page 27
9. Bestätigen Sie mit . Das Display zeigt: > Apply < Back 10. Bestätigen Sie mit . Das Display zeigt: Applying Network Settings ... Die Einstellungen werden gespeichert. TCP/IP-Parameter automatisch zuweisen (DHCP) Stellen Sie folgende Punkte sicher: - Ein aktiver DHCP-Server ist im Netzwerk vorhanden. Betätigen Sie zur Eingabe die Navigationstasten an der Gerätefront, um die TCP/IP-Parameter über DHCP zuzuweisen.
ISD Control Center verwenden Das ISD Control Center ist eine Benutzeroberfläche zur Administration des ISD. Das ISD Control Center ist in dem ISD gespeichert und kann auf einem Client mit einem Internet-Browser (Internet Explorer, Firefox, Safari) dargestellt werden. Stellen Sie folgende Punkte sicher: - Das ISD ist an das Netzwerk angeschlossen und hochgefahren.
Page 29
Auf dem ISD Control Center einloggen Nach dem Start des ISD Control Centers wird ein 'Login'-Dialog angezeigt. Der Zugriff auf das ISD Control Center ist durch die Benutzerprofile 'Any', 'User' und 'Admin' reglementiert. Der Zugang erfolgt in Kombination mit einem Passwort. Die Tabelle zeigt, welche Zugriffsrechte den jeweiligen Benutzerprofilen zugewiesen sind.
ISD Quick Setup Bei der Erstkonfiguration unterstützt Sie das 'Quick Setup'. Das Quick Setup besteht aus vier Schritten: dem Konfigurieren von Hostname und Gerätezeit, dem Konfigurieren von TCP/IPv4-Parametern und DNS-Server, der Suche nach im Netzwerk vorhandenen Druckern sowie dem Einrichten von Queues. Gehen Sie wie folgt vor: 1.
Page 31
7. Definieren Sie die Suchparameter für die Druckersuche im Netzwerk. Es kann maximal ein Bereich von bis zu 255 IP-Adressen durchsucht werden. 8. Wählen Sie die Schaltfläche Weiter an. Die Anzahl der im Netzwerk gefundenen Drucker wird angezeigt. 9. Bestätigen Sie mit OK. Die Druckerliste wird angezeigt.
Druckdienst eines Windows-Betriebssystems. Die Software ermöglicht die Übertragung von unverschlüsselten und verschlüsselten (SSL/TLS) Druckdaten vom Client zum ISD über direkte TCP/IP-Ports. Der SEH Print Monitor kann auf jedem Client, von dem aus gedruckt werden soll, installiert werden. Der ISD Printer Driver Wizard unterstützt Sie bei der Installation von Druckertreibern auf das ISD.
Page 34
The latest version of the EC declaration of conformity can be downloaded from the homepage of SEH Computertechnik GmbH: http://www.seh-technology.com/services/ce-notification.html Quick Installation Guide...
