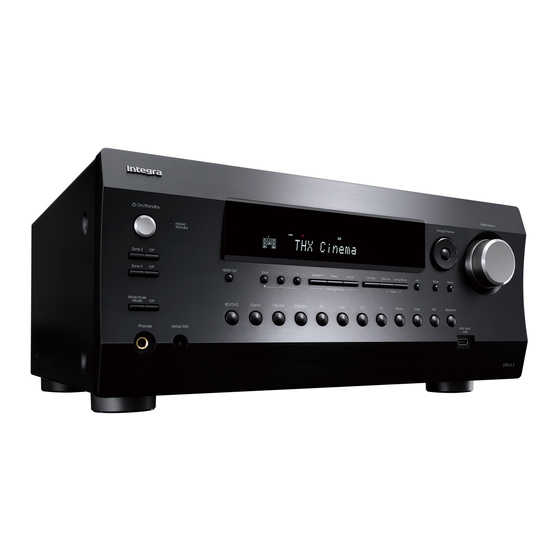

Initial Setup Guide
DRX-5.3
AV Receiver
SN 29403676
a
b
c
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°
7.1 ch System
1,2
Front Speakers
3
Center Speaker
4,5
Surround Speakers
6
Powered Subwoofer
7,8
Surround Back Speakers
Refer to the instruction
manual available on our
website to install and
connect speaker systems
other than 7.1 ch.
http://integraworldwide.com/manual/drx53/top.pdf
Install & Connections
1
F1902-0
* 2 9 4 0 3 6 7 6 *
3
a
1/2˝
(12 mm)
2
1
＊
a
b
3
＊
1
2
3
＊
＊
＊
a Speaker cable, b Subwoofer cable
2
＊
4-16
Refer to the instruction manual available
on our website to install and connect
speaker systems other than 7.1 ch.
http://integraworldwide.com/manual/drx53/top.pdf
Advertisement
Table of Contents
Related Manuals for Integra DRX-5.3
Summary of Contents for Integra DRX-5.3

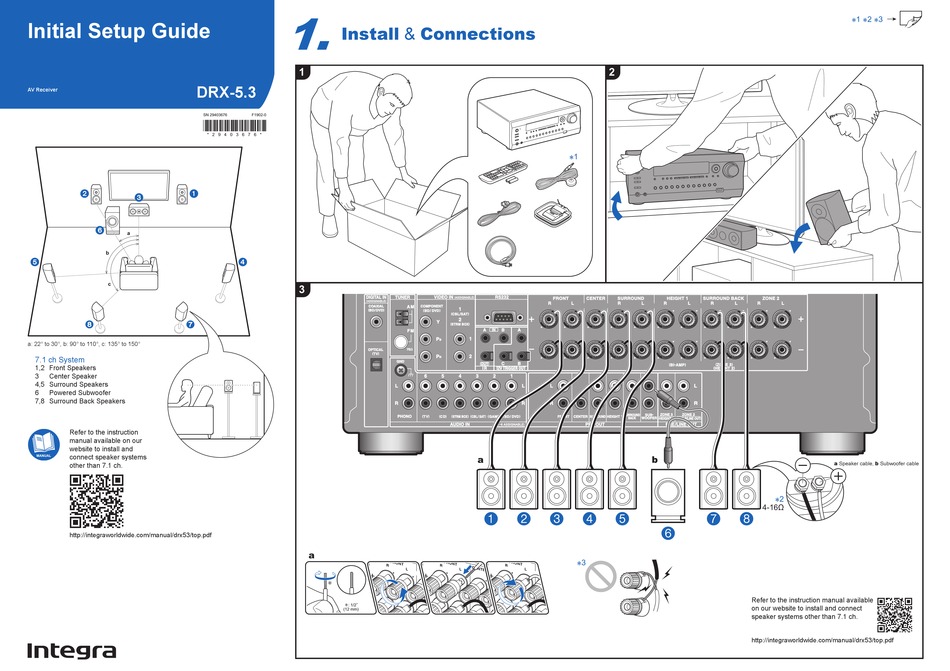

- Page 1 ＊ ＊ ＊ Initial Setup Guide Install & Connections DRX-5.3 AV Receiver SN 29403676 F1902-0 * 2 9 4 0 3 6 7 6 * ＊ a: 22° to 30°, b: 90° to 110°, c: 135° to 150° 7.1 ch System...
- Page 2 ＊ Used during Initial Setup. ＊ c HDMI cable ＊ Connect speakers with 4 Ω to 16 Ω impedance. If any of the connected speakers have 4 Ω or more to d Digital optical cable DIGITAL OPTICAL OUT less than 6 Ω impedance, in "Initial Setup", "Speaker Setup", set "Speaker Impedance" to "4ohms". ＊...
