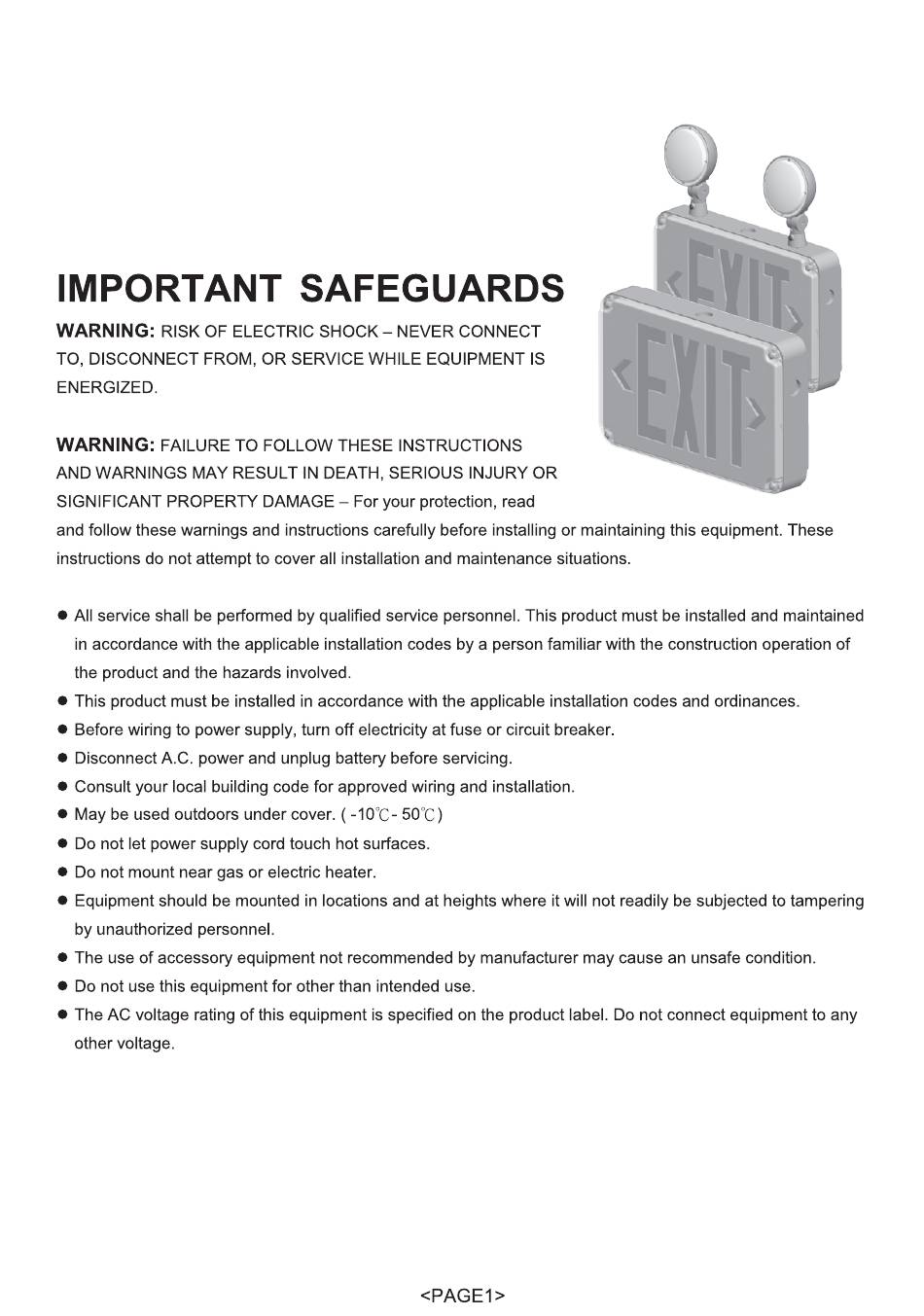

INSTALLATION INSTRUCTIONS FOR EXIT AND COMBO RWL-C Combo RWL-C Exit Use flat head screwdriver to loosen the screws on the lens. Remove lens, from sign, set aside. Remove EXIT stencil from housing, set aside. Drill a ¾ ” hole through the desired mounting knock out located on the frame of the sign. For ceiling mount, knock out will be located on the top of the housing.
Page 4
Exit Battery Wiring Diagram: AC Only Wiring Diagram: B A T. RED 277VAC Green(3.6V/500mAH) BLACK 120VAC T R S RED 277VAC Red(2.4V/500mAH) BLACK 120VAC T R S WHITE COM WHITE COM LED BOARD LED BOARD Exit RC Wiring Diagram: COMBO Wiring Diagram: B A T.
Page 5
6. Adjust the angle of the lamp head and tighten the screws WARNING:Press the unit to make sure it is locked onto the wall tightely. Distance between bracket and wall should less than 2mm. Headquarters: 800-888-5483 • 610-647-8200 www.isolite.com Western Office: 800-799-5343 • 805-546-9669...
